Interruptor de protección de sobretensión y subtensión serie CQAU2
El CQAU2 over under voltage relay is specified for over/under-voltage guard switch. Published data includes 230V AC 50Hz; Ui 415V and normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V. Confirm the accessory interface, control circuit, wiring and destination-market requirements before ordering.
Descripción del producto
CQAU2 is a over under voltage relay for low-voltage panel and breaker accessory systems. The summary below uses the published model record; it does not replace the complete drawing, wiring instructions or project design review.
Over/under-voltage guard switch. normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V is the published electrical reference. Compatibility, contact logic and installation details must be confirmed for the exact ordered version.
Características clave
Aplicaciones típicas
Use it where the supply voltage must be monitored against the model's published operating and trip window. Confirm the system voltage, fault/coordination study and whether the project needs over/under-voltage release or another protection function.
Guía de Solicitudes y Selección
Use the product-specific values below as a shortlist, then validate the complete circuit and mechanical interface. An accessory rating alone does not establish compatibility with every breaker, panel or control system.
| Punto de selección | CQAU2 reference | Lo que el proyecto debe confirmar |
|---|---|---|
| Primary function | over/under-voltage guard switch | Confirm the required signal or protection function before ordering |
| Electrical reference | 230V AC 50Hz; Ui 415V | Match the project control or supply circuit |
| Rating / operating window | normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V | Use the published range; do not infer missing ratings |
| Interface | for compatible CQB2 breaker accessory interface | Verify the compatible breaker, panel, base or rail interface |
| Wiring | no figura en el registro del producto | Final conductor and protection selection follows the project design and local rules |
| Documentos | IEC 60947-5-1 | Request the exact drawing and applicable compliance documents for the ordered version |
Function and signal path
Over/under-voltage guard switch. Confirm whether the circuit needs status feedback, fault alarm, remote trip or voltage release.
Control-circuit fit
230V AC 50Hz; Ui 415V. Match the control voltage and operating window to the project circuit; never assume a nearby rating is interchangeable.
Mechanical interface
for compatible CQB2 breaker accessory interface. Confirm breaker family, rail/base or panel interface, clearances and maintenance access.
Wiring and documentation
not stated on the product record. Request the exact drawing and installation document for the ordered configuration.
Guía de pedidos
- Specify the exact model and accessory function: CQAU2, over/under-voltage guard switch.
- State the control/supply voltage and any required operating window.
- Confirm the compatible breaker family, panel, base or DIN-rail interface.
- Provide quantity, destination market, wiring details and required technical documents.
- Ask CHAC to verify any non-standard marking, packaging or configuration request before production.
Comprobaciones de Instalación y Coordinación
- Use the exact product drawing and installation instructions for the ordered configuration.
- Verify voltage, conductor, terminal, enclosure, clearances and maintenance access.
- Check the accessory’s signal or trip logic against the control circuit and upstream/downstream protection.
- Installation, testing and maintenance must be carried out by qualified personnel under applicable rules.
Designación del tipo

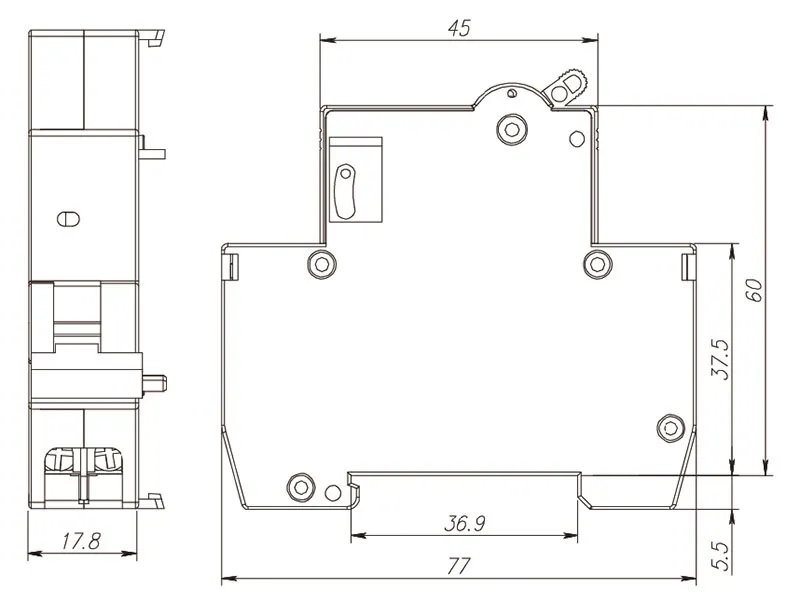

Dimensiones(mm)
Especificaciones técnicas
| Parámetro | ||
| AC-15 | Rated Operational Voltage (V) | CA 230V 50Hz |
| Rated Insulation Voltage (V) | 415V | |
| Características de Operación | Maintains long-term circuit breaker operation at voltages between 175V – 255V | |
| Trips at voltages ≥ 265±10V (Over-Voltage) | ||
| Trips at voltages ≤ 165±10V (Under-Voltage) | ||
| Vida Mecánica | No menos de 4.000 operaciones. | |
| Estándares | GB/T 14048.5, IEC 60947-5-1 | |
Requisitos del conductor y sección transversal
| Sección transversal de cobre (mm²2) |
| 1X2.5 |
¿Por qué elegir CHAC?
Con más de 30 años de experiencia en fabricación, más de 1100 empleados, más de 100 millones de postes
Con una capacidad anual y un proceso de producción automatizado 90%, CHAC ofrece una capacidad de producción estable y un estricto
control de calidad para clientes OEM/ODM globales. Nuestro sistema de fabricación interno respalda a largo plazo
Cooperación para marcas eléctricas, importadores y distribuidores.
30+
AÑOS DE EXPERIENCIA
Especializado en fabricación eléctrica de bajo voltaje
1100+
EMPLEADOS
Equipo profesional garantiza calidad y entrega estables
100M+
CAPACIDAD ANUAL DE LOS POLOS
Capacidad de producción a gran escala para satisfacer la demanda mundial
90%
PRODUCCIÓN AUTOMATIZADA
Automatización avanzada para alta eficiencia y consistencia
Línea de ensamblaje automatizada
Laboratorio de pruebas
Inyección y Estampado
Inspección de calidad
Un estricto sistema de control de calidad garantiza que cada producto cumpla con los estándares mundiales.
¿Qué podemos personalizar?
For CQAU2 projects, CHAC can review private-label marking, packaging, approved electrical options, accessory interface and technical-document requirements. Requests outside the published range are subject to engineering evaluation, testing, MOQ and project feasibility.
Logotipo y marca
Private-label marking and nameplate options are subject to artwork review and sample approval.
Empaquetado
Personalización
Cartons, labels and manuals can be prepared for the approved order specification and destination market.
Eléctrico
Personalización
Published 230V AC 50Hz; Ui 415V, normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V and interface options are reviewed against the ordered CQAU2 configuration; non-standard requests require technical evaluation.
Producto
Apariencia
Appearance options can be reviewed subject to tooling, MOQ, marking requirements and technical feasibility.
Certificación
Apoyo
Datasheets, drawings and verified document information are supplied for the applicable approved configuration.
Ingeniería
Desarrollo
Project support may include drawing review, sample evaluation, testing and production planning, subject to technical approval.
Descargar
CQAU2 Technical Documents
Request the current datasheet, drawings, wiring information and applicable documents for the ordered accessory configuration.
¿Necesita documentos técnicos?
Contáctenos para obtener hojas de datos, certificados, planos, orientación de selección o soporte para proyectos OEM/ODM.
CQAU2 Product FAQ
How does the CQAU2 work?
The CQAU2 monitors the supply against its published window: normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V. When the relevant limit is reached, the compatible breaker accessory function responds as specified by the product design.
What is an over/under-voltage protection device?
It monitors supply voltage and operates when voltage moves outside defined limits. The correct thresholds and reset behavior must be taken from the selected model's documentation.
What voltage range is published for the CQAU2?
The published reference is 230V AC 50Hz; Ui 415V and normal 175–255V; overvoltage trip ≥265±10V; undervoltage trip ≤165±10V. Confirm the system voltage, tolerance and installation conditions before ordering.
Is the CQAU2 the same as a shunt trip release?
No. A voltage release responds to its monitored voltage window, while a shunt trip is controlled by a separate energizing signal. Select the function that matches the protection or control logic.
Which breaker is compatible with the CQAU2?
The CQAU2 is an accessory for a compatible breaker interface. Confirm the exact breaker family, mounting position and coordination requirements.
What should be checked during installation of the CQAU2?
Check voltage, thresholds, wiring, breaker interface, enclosure conditions and the manufacturer's installation instructions. Testing must be performed by qualified personnel.
Confirm the Right CQAU2 Configuration
Share the required function, voltage, interface, quantity, destination market and technical documents. CHAC will review the request against the published accessory data.
