مفتاح الفصل عن بعد لسلسلة CQAM2
ال CQAM2 shunt trip release is specified for remote shunt trip switch. Published data includes 230V AC 50Hz control supply and operating range 160–260V; Ui 415V. Confirm the accessory interface, control circuit, wiring and destination-market requirements before ordering.
Product Overview
CQAM2 is a shunt trip release for low-voltage panel and breaker accessory systems. The summary below uses the published model record; it does not replace the complete drawing, wiring instructions or project design review.
Remote shunt trip switch. operating range 160–260V; Ui 415V is the published electrical reference. Compatibility, contact logic and installation details must be confirmed for the exact ordered version.
Key Features
Typical Applications
Use it where a compatible breaker must be tripped from a remote control or emergency circuit. Confirm the control voltage, trip logic, accessory interface and safe isolation procedure; a shunt release is not an undervoltage release.
Applications and Selection Guide
Use the product-specific values below as a shortlist, then validate the complete circuit and mechanical interface. An accessory rating alone does not establish compatibility with every breaker, panel or control system.
| Selection point | CQAM2 reference | What the project must confirm |
|---|---|---|
| Primary function | remote shunt trip switch | Confirm the required signal or protection function before ordering |
| Electrical reference | 230V AC 50Hz control supply | Match the project control or supply circuit |
| Rating / operating window | operating range 160–260V; Ui 415V | Use the published range; do not infer missing ratings |
| Interface | for compatible CQB2 breaker accessory interface | Verify the compatible breaker, panel, base or rail interface |
| Wiring | 1 × 2.5mm² conductor reference | Final conductor and protection selection follows the project design and local rules |
| مستندات | IEC 60947-5-1 | Request the exact drawing and applicable compliance documents for the ordered version |
Function and signal path
Remote shunt trip switch. Confirm whether the circuit needs status feedback, fault alarm, remote trip or voltage release.
Control-circuit fit
230V AC 50Hz control supply. Match the control voltage and operating window to the project circuit; never assume a nearby rating is interchangeable.
Mechanical interface
for compatible CQB2 breaker accessory interface. Confirm breaker family, rail/base or panel interface, clearances and maintenance access.
Wiring and documentation
1 × 2.5mm² conductor reference. Request the exact drawing and installation document for the ordered configuration.
Ordering Guide
- Specify the exact model and accessory function: CQAM2, remote shunt trip switch.
- State the control/supply voltage and any required operating window.
- Confirm the compatible breaker family, panel, base or DIN-rail interface.
- Provide quantity, destination market, wiring details and required technical documents.
- Ask CHAC to verify any non-standard marking, packaging or configuration request before production.
Installation and Coordination Checks
- Use the exact product drawing and installation instructions for the ordered configuration.
- Verify voltage, conductor, terminal, enclosure, clearances and maintenance access.
- Check the accessory’s signal or trip logic against the control circuit and upstream/downstream protection.
- Installation, testing and maintenance must be carried out by qualified personnel under applicable rules.
تعيين النوع

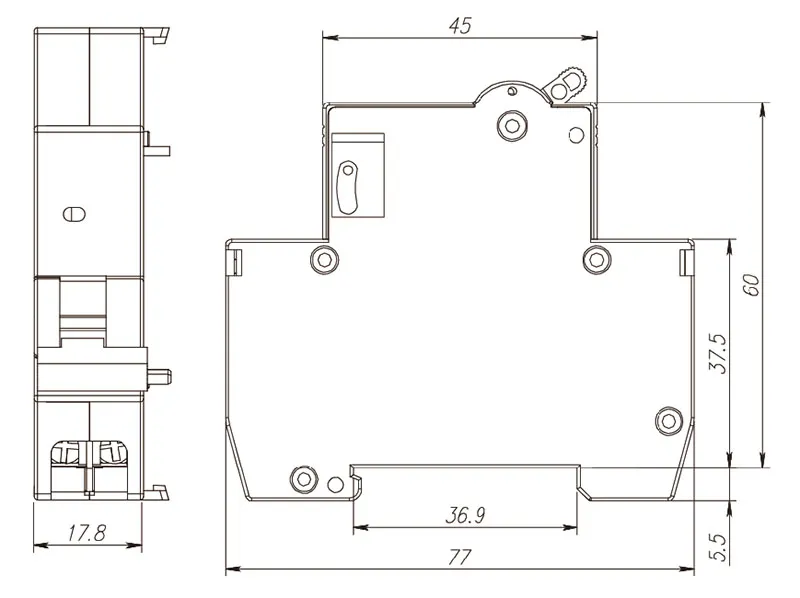

الأبعاد (مم)
المواصفات الفنية
| معامل | ||
| AC-15 | Rated Operational Voltage (V) | AC 230V 50Hz |
| Rated Insulation Voltage (V) | 415V | |
| Operating Characteristics | When the voltage is between 160-260V, the trip unit can reliably operate. | |
| Mechanical Life | 4000 | |
| معايير | GB/T 14048.5, IEC 60947-5-1 | |
متطلبات الموصل والمقطع العرضي
| مقطع عرضي للنحاس (مم2) |
| 1X2.5 |
لماذا تختار CHAC
مع خبرة تصنيع تزيد عن 30 عامًا، وأكثر من 1100 موظف، وأكثر من 100 مليون عمود
بفضل طاقتها الإنتاجية السنوية ونظام الإنتاج الآلي 90%، توفر شركة CHAC طاقة إنتاجية مستقرة ومعايير صارمة
مراقبة الجودة لعملاء OEM/ODM العالميين. يدعم نظام التصنيع الداخلي الخاص بنا على المدى الطويل
تعاون مع العلامات التجارية الكهربائية والمستوردين والموزعين.
30+
سنوات الخبرة
متخصص في تصنيع المعدات الكهربائية منخفضة الجهد
1100+
الموظفين
فريق محترف يضمن جودة ثابتة والتسليم
١٠٠ مليون+
السعة السنوية للأعمدة
قدرة إنتاجية واسعة النطاق لتلبية الطلب العالمي
90%
الإنتاج الآلي
الأتمتة المتقدمة لتحقيق كفاءة واتساق عاليين
خط التجميع الآلي
مختبر اختبار
حقن وختم
فحص الجودة
نظام صارم لمراقبة الجودة يضمن أن كل منتج يلبي المعايير العالمية.
ما الذي يمكننا تخصيصه؟
For CQAM2 projects, CHAC can review private-label marking, packaging, approved electrical options, accessory interface and technical-document requirements. Requests outside the published range are subject to engineering evaluation, testing, MOQ and project feasibility.
الشعار والعلامة التجارية
Private-label marking and nameplate options are subject to artwork review and sample approval.
تعبئة وتغليف
تخصيص
Cartons, labels and manuals can be prepared for the approved order specification and destination market.
كهربائي
تخصيص
Published 230V AC 50Hz control supply, operating range 160–260V; Ui 415V and interface options are reviewed against the ordered CQAM2 configuration; non-standard requests require technical evaluation.
منتج
مظهر
Appearance options can be reviewed subject to tooling, MOQ, marking requirements and technical feasibility.
شهادة
دعم
Datasheets, drawings and verified document information are supplied for the applicable approved configuration.
الهندسة
تطوير
Project support may include drawing review, sample evaluation, testing and production planning, subject to technical approval.
تنزيل
CQAM2 Technical Documents
Request the current datasheet, drawings, wiring information and applicable documents for the ordered accessory configuration.
هل تحتاج إلى وثائق فنية؟
اتصل بنا للحصول على أوراق البيانات، والشهادات، والرسومات، وإرشادات الاختيار، أو دعم مشاريع OEM/ODM.
CQAM2 Product FAQ
What is the CQAM2 used for?
The CQAM2 provides remote shunt tripping for a compatible breaker system. It is selected as a control accessory, not as a standalone overcurrent device.
What is the difference between a shunt trip and an undervoltage release?
A shunt trip is generally energize-to-trip, while an undervoltage release responds to a loss or reduction of its control voltage. Confirm the required trip logic for the project.
What control voltage does the CQAM2 use?
The published reference is 230V AC 50Hz control supply, with operating range 160–260V; Ui 415V. Do not substitute another coil voltage without confirming the exact model.
Which breaker is compatible with the CQAM2?
The product record specifies a compatible for compatible CQB2 breaker accessory interface. Confirm the breaker model, interface and accessory combination from the drawing.
Can a shunt release provide overload protection?
No. It trips a compatible breaker remotely; overload and short-circuit protection come from the breaker and must be selected separately.
What wiring is listed for the CQAM2?
The published conductor reference is 1 × 2.5mm² conductor reference. Final wiring, isolation and control-circuit protection must follow the project design and instructions.
