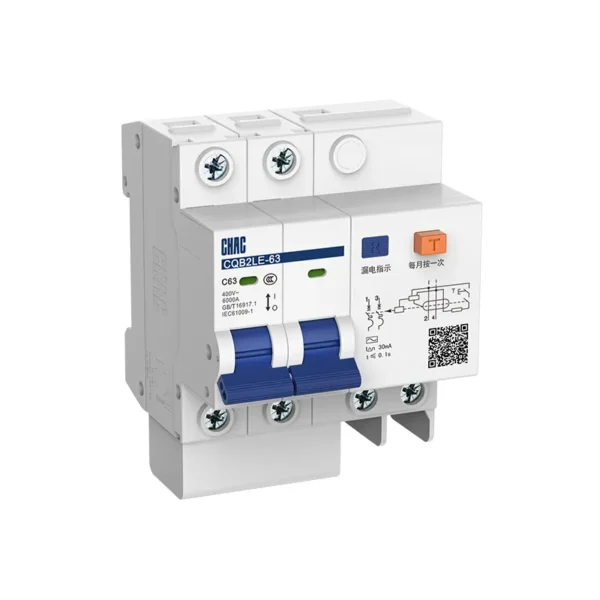

CQB2LE-63 Residual Current Circuit Breaker with Overcurrent Protection – Electronic Type
ال CQB2LE-63 RCBO provides overload, short-circuit and residual-current protection within its published 6A–63A range. Selection should be based on the circuit voltage, conductor, load behaviour, prospective fault current and applicable installation rules—not the ampere rating alone.
Product Overview
CQB2LE-63 is an RCBO for 230/400V AC distribution circuits. It combines thermal-magnetic overcurrent protection with residual-current protection in one device. The published range covers 6A–63A, 1P+N / 2P / 3P / 3P+N / 4P, B / C / D curves and 30 / 50 / 100 / 300mA sensitivity options. The saved model data describes the residual-current or construction type as Electronic type; waveform type is not stated in the saved technical table.
The CQB2LE-63 is a 63A RCBO available in multipole RCBO configurations for single-phase and three-phase distribution requirements.
The saved model record lists IEC 61009-1; GB/T 16917.1 as the applicable standard reference. It also lists CCC certification; scope must be confirmed for the ordered configuration.
Key Features
Typical Applications
Typical use is in final or sub-distribution circuits where both overcurrent and residual-current protection are required. The project must still confirm the expected residual-current waveform, sensitivity, neutral arrangement, pole configuration, fault level, conductor size, enclosure conditions and local wiring rules.
Applications and Selection Guide
Use the verified model values below to create a shortlist, then validate the complete circuit. Product ratings do not replace conductor calculations, a fault-current study, coordination review or local installation requirements.
| Selection point | CQB2LE-63 reference | What the project must confirm |
|---|---|---|
| Rated current | 6A–63A | Design current, conductor ampacity, installation method, ambient temperature and grouping |
| Voltage and frequency | 230/400V AC; 50Hz | Supply system and equipment rating |
| Pole configuration | 1P+N / 2P / 3P / 3P+N / 4P | Conductors to be switched/protected, including neutral treatment |
| Trip curve | B / C / D | Load inrush and required disconnection performance |
| Residual-current selection | 30 / 50 / 100 / 300mA; Electronic type; waveform type is not stated in the saved technical table | Expected waveform, sensitivity, purpose and local rules |
| Breaking capacity | 6kA (Icn = Ics) | Prospective short-circuit current and protection coordination |
Protection Scope
An RCBO combines overcurrent and residual-current protection; it is not simply an MCB with a different label.
MCB vs RCBO
Compare Protection Functions →
Residual-Current Selection
Published options: 30 / 50 / 100 / 300mA. Confirm sensitivity and waveform type for the actual circuit and market.
Sensitivity & Type
Review Selection Support →
Breaking Capacity and Curve
6kA (Icn = Ics); B / C / D curves. Both fault level and load inrush must be checked.
Fault Level & Inrush
Compare Breaking Capacity →
Pole and Wiring Arrangement
Published pole options: 1P+N / 2P / 3P / 3P+N / 4P. Use the exact model diagram; do not assume neutral routing.
Poles & Neutral
Confirm Wiring Data →
Ordering Guide
- Specify the exact model: CQB2LE-63.
- State the required current rating within 6A–63A.
- Confirm pole arrangement: 1P+N / 2P / 3P / 3P+N / 4P.
- Confirm trip curve: B / C / D.
- Confirm residual-current sensitivity and type from the published 30 / 50 / 100 / 300mA options.
- Provide system voltage, expected fault level, destination market, quantity and document requirements.
Installation and Coordination Checks
- Use the exact model drawing and instructions; do not infer supply direction, neutral routing or terminal positions from another product.
- Verify conductor material and cross-section against the circuit calculation and published terminal data.
- Confirm fault level, upstream/downstream coordination, enclosure temperature, grouping, altitude and clearances.
- Installation, isolation, testing and maintenance must be carried out by qualified personnel under applicable rules.
تعيين النوع
Tripping curves
الأبعاد (مم)
| أقطاب | L |
| 1P+N | 53.4 |
| 2P | 71.2 |
| 3P | 102.4 |
| 3P+N | 115.8 |
| 4P | 133.6 |
المواصفات الفنية
| معامل | |
| الجهد المقنن | 230V~ (2P, 1P+N) / 400V~ (3P, 4P, 3P+N) |
| Rated current | 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A |
| عدد الأقطاب | 2P, 3P, 4P, 1P+N, 3P+N |
| Rated breaking capacity (Icn = Ics) | 6000 A |
| Rated residual operating current (IΔn) | 30, 50, 100, 300 mA |
| Rated residual non-operating current | 0.5 IΔn |
| Rated residual making and breaking capacity | 2000 A |
| Tripping time | ≤ 0.1 s |
| Mechanical life | 4000 operations |
| حياة كهربائية | 4000 operations |
| Tripping curves | B, C, D |
| Degree of protection | IP20 |
| Overvoltage category | Ⅲ |
| معايير | IEC 61009-1, GB/T 16917.1 |
| شهادة | CCC |
Tripping characteristics (Reference temperature 30°C)
| Item | Tripping Curve | Test current In(A) | Initial Status | Time limit for tripping or non-tripping | Expected result | Remarks |
| Delay | ≤63 | Cold | 1.13In | ≤1h | Non-tripping | |
| Delay | ≤63 | Following previous test | 1.45In | <1h | Tripping | Current smoothly rises to specified value in 5s |
| Delay | ≤32 | Cold | 2.55In | 1<t<60s | Tripping | |
| Delay | >32 | Cold | 2.55In | 1<t<120s | Tripping | |
| Instantaneous | Any value | Cold | 3, 5, 10In | ≤0.1s | Non-tripping | B, C, D |
| Instantaneous | Any value | Cold | 5, 10, 20In | <0.1s | Tripping | B, C, D |
ملاحظة: The term “cold” means that the test is carried out at a reeference calibration temperature without load before the test.
متطلبات الموصل والمقطع العرضي
| مقطع عرضي للنحاس (مم2) | التيار المقنن In(A) |
| 1 | In≤6 |
| 1.5 | 6<In≤13 |
| 2.5 | 13<In≤20 |
| 4 | 20<In≤25 |
| 6 | 25<In≤32 |
| 10 | 32<In≤50 |
| 16 | 50<In≤63 |
لماذا تختار CHAC
مع خبرة تصنيع تزيد عن 30 عامًا، وأكثر من 1100 موظف، وأكثر من 100 مليون عمود
بفضل طاقتها الإنتاجية السنوية ونظام الإنتاج الآلي 90%، توفر شركة CHAC طاقة إنتاجية مستقرة ومعايير صارمة
مراقبة الجودة لعملاء OEM/ODM العالميين. يدعم نظام التصنيع الداخلي الخاص بنا على المدى الطويل
تعاون مع العلامات التجارية الكهربائية والمستوردين والموزعين.
30+
سنوات الخبرة
متخصص في تصنيع المعدات الكهربائية منخفضة الجهد
1100+
الموظفين
فريق محترف يضمن جودة ثابتة والتسليم
١٠٠ مليون+
السعة السنوية للأعمدة
قدرة إنتاجية واسعة النطاق لتلبية الطلب العالمي
90%
الإنتاج الآلي
الأتمتة المتقدمة لتحقيق كفاءة واتساق عاليين
خط التجميع الآلي
مختبر اختبار
حقن وختم
فحص الجودة
نظام صارم لمراقبة الجودة يضمن أن كل منتج يلبي المعايير العالمية.
ما الذي يمكننا تخصيصه؟
For CQB2LE-63 projects, CHAC can review private-label marking, packaging, approved appearance options, published 6A–63A electrical configurations and technical-document requirements. Requests outside the published range are subject to engineering evaluation, testing, minimum order quantity and project feasibility.
الشعار والعلامة التجارية
Private-label marking and nameplate options are subject to artwork review and sample approval.
تعبئة وتغليف
تخصيص
Cartons, labels and manuals can be prepared for the approved order specification and destination market.
كهربائي
تخصيص
Select from the published 6A–63A, 1P+N / 2P / 3P / 3P+N / 4P and B / C / D options; non-standard requests require technical evaluation.
منتج
مظهر
Appearance options can be reviewed subject to tooling, minimum order quantity, marking requirements and technical feasibility.
شهادة
دعم
Datasheets, drawings and verified certificate information are supplied for the applicable approved configuration.
الهندسة
تطوير
Project support may include drawing review, sample evaluation, testing and production planning, subject to technical approval.
تنزيل
قاطع الدائرة المصغر من سلسلة CQB2
نظرة عامة كاملة على مكونات كهربائية منخفضة الجهد ومرجع لاختيار المنتج.
هل تحتاج إلى وثائق فنية؟
اتصل بنا للحصول على أوراق البيانات، والشهادات، والرسومات، وإرشادات الاختيار، أو دعم مشاريع OEM/ODM.
CQB2LE-63 Product FAQ
What is the CQB2LE-63 RCBO?
The CQB2LE-63 combines overload and short-circuit protection with residual-current protection. Its verified range is 6A–63A with 1P+N / 2P / 3P / 3P+N / 4P configurations; the exact ordered option must match the circuit and local rules.
How does the CQB2LE-63 RCBO work?
A thermal-magnetic mechanism responds to overload and short-circuit conditions, while the residual-current function monitors imbalance between conductors and trips when the applicable threshold is reached. It does not remove the need for correct earthing, circuit design or testing.
How is the CQB2LE-63 RCBO different from an MCB or RCCB?
An MCB provides overcurrent protection but not residual-current protection. An RCCB provides residual-current protection but normally needs separate overcurrent protection. The CQB2LE-63 combines both functions in one product, within its published ratings.
Can the CQB2LE-63 RCBO be used as a circuit breaker?
It can provide the overcurrent and residual-current functions stated for the model, but only when 230/400V AC, 6A–63A, 6kA (Icn = Ics) and the residual-current requirements all suit the circuit. It should not be treated as a universal replacement for every breaker.
What are the selection limitations of the CQB2LE-63 RCBO?
The principal checks are residual-current sensitivity (30 / 50 / 100 / 300mA), residual-current or construction type (Electronic type; waveform type is not stated in the saved technical table), trip curve (B / C / D), pole arrangement (1P+N / 2P / 3P / 3P+N / 4P) and short-circuit data (6kA (Icn = Ics)). Board space, neutral handling, coordination and destination-market rules also have to be verified.
How should the CQB2LE-63 RCBO be wired and tested?
Use only the diagram and terminal identification supplied for the exact ordered model. Confirm supply direction, protected neutral arrangement, conductor size, torque and isolation procedure, then perform the prescribed test-button and functional checks. Qualified personnel should complete the work under local rules.
Confirm the Right CQB2LE-63 Configuration
Send the current rating, poles, trip curve, system voltage, expected fault level, destination market and quantity, plus residual-current sensitivity and type. CHAC will review the request against the published model range.
