CQB3GQ-80 Series Self-Resetting Over-Under Voltage Protector
ال CQB3GQ-80 is specified for over/under-voltage disconnection with automatic reconnection. Select it using the published voltage, current, pole and protection data, then confirm conductor coordination, fault conditions, enclosure requirements and local installation rules.
Product Overview
CQB3GQ-80 is a self resetting voltage protector for 230V or 230/400V AC applications. It is intended for single-phase or terminal-equipment circuits exposed to supply-voltage abnormalities; this describes an evaluation context, not a universal approval. Confirm the complete circuit design before specifying the product.
over/under-voltage disconnection with automatic reconnection is distinct from adjacent protection functions. Do not infer AC/DC suitability, residual-current protection, automatic control or isolation performance from the product family name alone.
Key Features
Typical Applications
single-phase or terminal-equipment circuits exposed to supply-voltage abnormalities. Verify system voltage, expected fault current or leakage, wiring arrangement, environment, coordination and applicable rules for the ordered configuration.
Applications and Selection Guide
Use the verified CQB3GQ-80 records below to create a shortlist. Product labels do not replace the project calculation, coordination review or exact installation instructions.
| Selection point | CQB3GQ-80 reference | What the project must confirm |
|---|---|---|
| Rated current | Use the exact model table | Design current, conductor capacity, ambient and grouping |
| Voltage and frequency | 230V or 230/400V AC | Supply system and equipment rating |
| أقطاب | 1P+N, 2P or 4P as listed | Conductors to be switched, protected or isolated |
| Protection / control | over/under-voltage disconnection with automatic reconnection | Required function and adjacent-device coordination |
| Fault / residual data | Thresholds and delay are model-specific; see the technical table | Prospective short-circuit or leakage conditions |
Voltage Protection and Reconnection
Over/under-voltage devices disconnect when thresholds are reached and may reconnect after a delay. Confirm thresholds, delay, neutral arrangement and downstream load behaviour.
Voltage Quality
Confirm Settings →
Model-Specific Ratings
Use the exact technical table for rated voltage, current, poles, terminals, life and environmental limits.
Verified Data
View Technical Support →
Installation and Coordination
Check the complete circuit, conductor sizing, fault or leakage conditions, enclosure and local rules before energising.
Engineering Check
Discuss a Configuration →
Ordering Information
State model, rating, poles, system, quantity, destination market and document requirements so the configuration can be reviewed.
Project Inputs
Send Project Details →
Ordering Guide
- State the exact model: CQB3GQ-80.
- Provide rated current and voltage from the published technical table.
- Confirm poles and the required protection, isolation or control function.
- Provide application, expected fault/leakage conditions, destination market and quantity.
- List accessory, terminal, documentation and approved marking or packaging requirements.
Installation and Coordination Checks
- Use the exact model drawing and instructions; do not infer wiring or accessory compatibility from another product.
- Verify conductor size, terminal torque, enclosure conditions, temperature, grouping and clearances.
- Coordinate upstream and downstream devices and confirm the required fault, leakage or voltage response.
- Installation, testing and maintenance must be completed by qualified personnel under applicable rules.

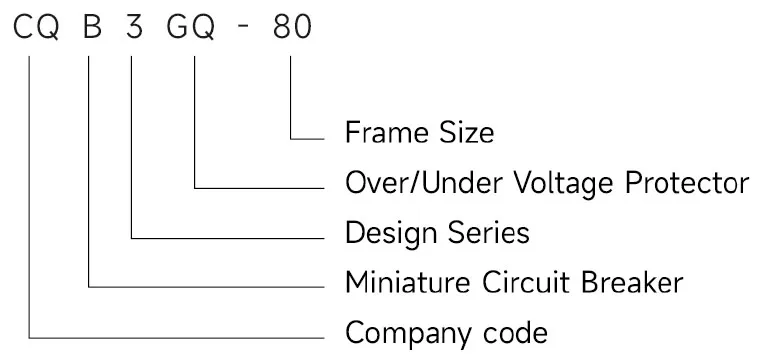

تعيين النوع
الأبعاد (مم)
المواصفات الفنية
| معامل | |
| Rated Voltage | AC 230V |
| Rated Frequency | 50 Hz |
| Rated Current | 40A,63A,80A |
| أقطاب | 1P+N |
| Overvoltage Tripping Value | AC 270V±5V |
| Undervoltage Tripping Value | AC 170V±5V |
| Delay Time | 30s±10s |
| Mechanical & Electrical Life | ≥100,000 operations |
| Terminal Torque | 2-3 Nm |
| Pollution Degree | Level 2 |
| Degree of Protection | IP20 |
| قياسي | JB/T12762 |
