PXB6HDC-125M DC Miniature Circuit Breaker
Product Features
■ Configurable & Flexible: Available in 1P to 4P configurations with cuurrent ratings from 63A to 125A, allowing precise matching to your systen topology and load requirements.
■ High Dielectric Performance: Rated for 1000 V insulation and 6 kV impulse withstand voltage, ensuring maximum reliability under transient overvoltages.
■ Broad Voltage Coverage: Supports DC systems from 250V (1P) up to 1000V (4P)
Ordering Specification
Please specify the following when ordering:
1.Product Model: PXB6HDC-125M
2.Number of Poles: 1P, 2P,3P, 4P
3.Rated Current : [e.g., 125A]
- Rated Current (In): 63,80,100,125A
5.Quantity: [e.g., 100 pcs]
Ordering Example:
PXB6HDC-125M 2P 125A 100 pcs

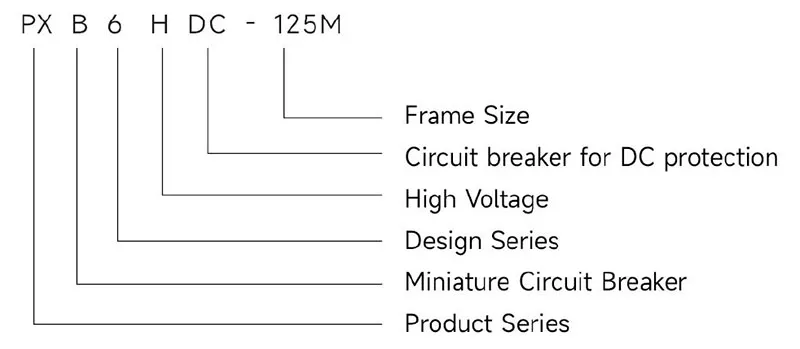

Type designation

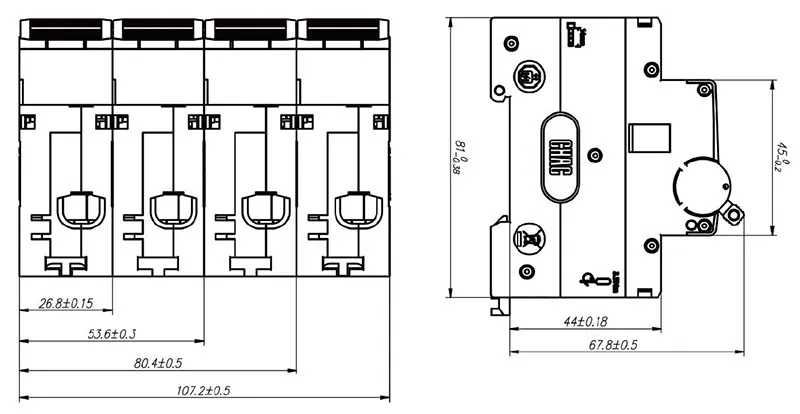

Dimensions(mm)
Technical Specifications
| Parameter | |
| Rated Voltage (V) | 1P DC250V 、2P DC500V 、3P DC750V 、4P DC1000V |
| Rated Current (A) | 63,80,100,125 |
| Rated Insulation Voltage (Ui) | 1000V |
| Rated impulse withstand voltage Uimp(kV) | 6 |
| Number of Poles | 1P,2P,3P,4P |
| Ultimate Breaking Capacity (Icu) (kA) | 6 |
| Service Breaking Capacity (Ics) (kA) | 6 |
| Mechanical Life (operations) | ≥ 10,000 operations |
| Electrical Life (operations) | ≥ 1,500 operations ( at rated conditions) |
| Pollution Degree | 3 |
| Protection Class | IP20 |
| Standard | GB/T 14048.2、IEC60947-2 |
Tripping Characteristics (Reference Temperature: 30℃)
| Item | Test Current (A) | Initial Status | Time limit for tripping or non-tripping | Expected result | Remarks |
| a | 1.05In | Cold | t ≤ 2h ( In > 63A) | Non-tripping | Current smoothly rises to specified value within 5s |
| t ≤ 1h ( In ≤ 63A) | |||||
| b | 1.3In | Following item a test | t < 2h ( In > 63A) | Tripping | |
| t < 1h ( In ≤ 63A) | |||||
| c | 2.55In | Cold | 1s < t < 60s ( In ≤ 32A) 1s < t < 120s ( In > 32A) |
Tripping | |
| d | 4In、8In、12In (±20%) | Cold | t ≤ 0.2s | Tripping | Circuit switched on by closing an auxiliary switch. Verifies rapid breaking capability. |
Note:The term “cold” means that the test is carried out at a reference calibration temperature without load before the test.
