PXB6-OF Kontak Bantu
Itu PXB6-OF auxiliary contact is specified for auxiliary status contact. Published data includes AC 240/415V; DC 24/48/130V and AC-12: 415V/3A or 240V/6A; DC-12: 130V/1A, 48V/2A or 24V/6A. Confirm the accessory interface, control circuit, wiring and destination-market requirements before ordering.

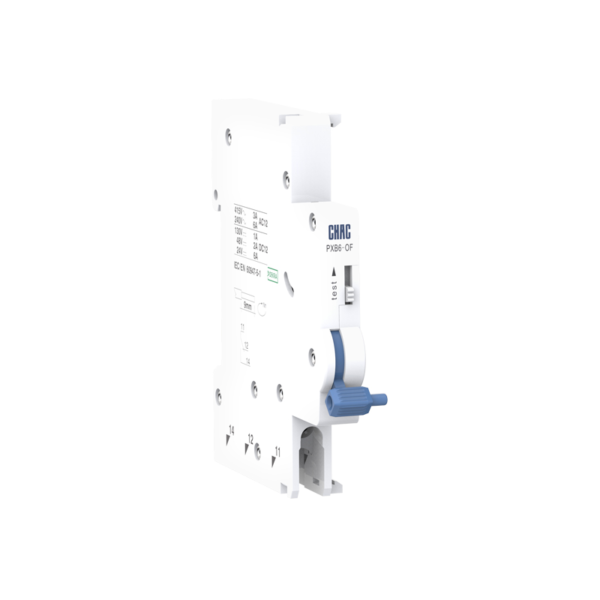

Product Overview
PXB6-OF is an auxiliary contact for low-voltage panel and breaker accessory systems. The summary below uses the published model record; it does not replace the complete drawing, wiring instructions or project design review.
Auxiliary status contact. AC-12: 415V/3A or 240V/6A; DC-12: 130V/1A, 48V/2A or 24V/6A is the published electrical reference. Compatibility, contact logic and installation details must be confirmed for the exact ordered version.
Key Features
Typical Applications
Use it where a low-power status signal is needed for panel indication, PLC, BMS or interlocking logic. Confirm the required contact function and the target breaker's accessory interface before specifying the device.
Applications and Selection Guide
Use the product-specific values below as a shortlist, then validate the complete circuit and mechanical interface. An accessory rating alone does not establish compatibility with every breaker, panel or control system.
| Selection point | PXB6-OF reference | What the project must confirm |
|---|---|---|
| Fungsi utama | kontak status tambahan | Confirm the required signal or protection function before ordering |
| Electrical reference | AC 240/415V; DC 24/48/130V | Match the project control or supply circuit |
| Rating / operating window | AC-12: 415V/3A or 240V/6A; DC-12: 130V/1A, 48V/2A or 24V/6A | Use the published range; do not infer missing ratings |
| Interface | untuk antarmuka aksesori pemutus PXB6 yang kompatibel | Verify the compatible breaker, panel, base or rail interface |
| Wiring | Referensi konduktor 0,5–2,5 mm² | Final conductor and protection selection follows the project design and local rules |
| Documents | IEC 60947-5-1 | Request the exact drawing and applicable compliance documents for the ordered version |
Function and signal path
Auxiliary status contact. Confirm whether the circuit needs status feedback, fault alarm, remote trip or voltage release.
Control-circuit fit
AC 240/415V; DC 24/48/130V. Match the control voltage and operating window to the project circuit; never assume a nearby rating is interchangeable.
Mechanical interface
for compatible PXB6 breaker accessory interface. Confirm breaker family, rail/base or panel interface, clearances and maintenance access.
Wiring and documentation
0.5–2.5mm² conductor reference. Request the exact drawing and installation document for the ordered configuration.
Ordering Guide
- Specify the exact model and accessory function: PXB6-OF, auxiliary status contact.
- State the control/supply voltage and any required operating window.
- Confirm the compatible breaker family, panel, base or DIN-rail interface.
- Provide quantity, destination market, wiring details and required technical documents.
- Ask CHAC to verify any non-standard marking, packaging or configuration request before production.
Ordering Specification
Please specify the following when ordering:
- Product Model: PXB6-OF
- Quantity: e.g.: 100 pcs
- PXB6-OF 100 pcs
The quantity shown is an ordering example, not a minimum order quantity.
Installation and Coordination Checks
- Use the exact product drawing and installation instructions for the ordered configuration.
- Verify voltage, conductor, terminal, enclosure, clearances and maintenance access.
- Check the accessory’s signal or trip logic against the control circuit and upstream/downstream protection.
- Installation, testing and maintenance must be carried out by qualified personnel under applicable rules.

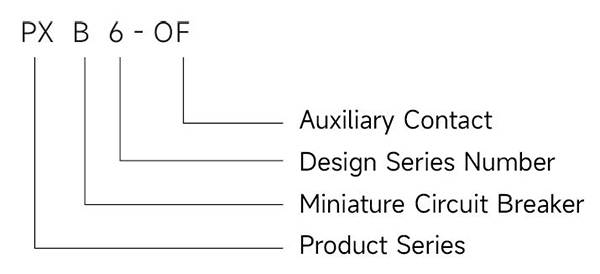

Type designation

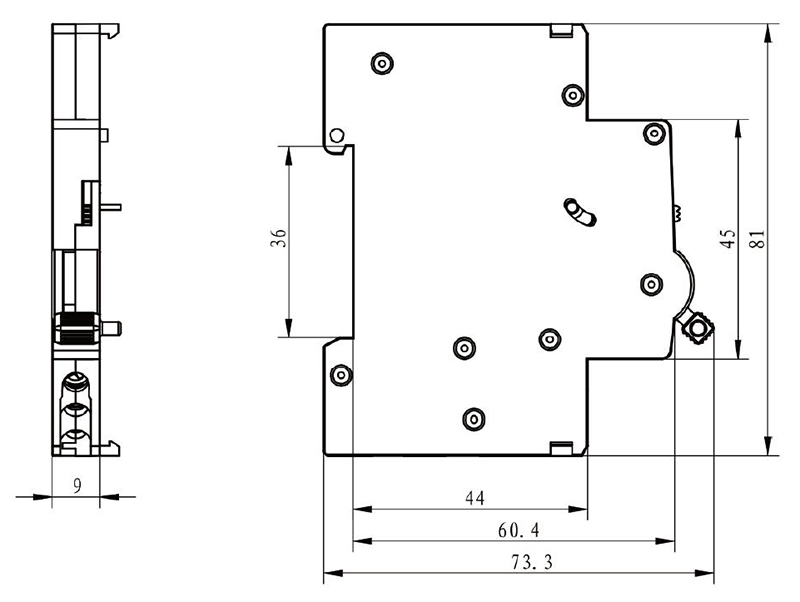

Dimensions(mm)
Technical Specifications
| Parameter | ||||
|---|---|---|---|---|
| AC-12 | Rated Operational Voltage | AC 415V | AC 240V | |
| Rated operating current | 3A | 6A | ||
| DC-12 | Rated Operational Voltage | DC 130V | DC48V | DC24V |
| Rated operating current | 1A | 2A | 6A | |
| Mechanical Endurance | 10000 | |||
| Standards | IEC 60947-5-1 | |||
| Sertifikasi | CE·CB·CCC |DEKRA Certified | |||
Conductor requirements and cross section
| Copper cross-section(mm2) |
|---|
| 0.5~2.5 |
