مفتاح إنذار CQAS2 لتطبيقات تيار متردد 230 فولت وتيار مستمر 110 فولت
ال CQAS2 alarm contact is specified for alarm switch for fault-trip indication. Published data includes AC 230V 50Hz / DC 110V and AC-15 230V 6A; DC-13 110V 1A. Confirm the accessory interface, control circuit, wiring and destination-market requirements before ordering.
Product Overview
CQAS2 is a alarm contact for low-voltage panel and breaker accessory systems. The summary below uses the published model record; it does not replace the complete drawing, wiring instructions or project design review.
Alarm switch for fault-trip indication. AC-15 230V 6A; DC-13 110V 1A is the published electrical reference. Compatibility, contact logic and installation details must be confirmed for the exact ordered version.
Key Features
Typical Applications
Use it where a breaker fault trip must be reported to a panel, PLC, BMS or audible signaling circuit. An alarm contact should not be described as a normal auxiliary status contact; confirm the target breaker's accessory interface and the project's alarm logic.
Applications and Selection Guide
Use the product-specific values below as a shortlist, then validate the complete circuit and mechanical interface. An accessory rating alone does not establish compatibility with every breaker, panel or control system.
| Selection point | CQAS2 reference | What the project must confirm |
|---|---|---|
| Primary function | alarm switch for fault-trip indication | Confirm the required signal or protection function before ordering |
| Electrical reference | تيار متردد 230 فولت 50 هرتز / تيار مستمر 110 فولت | Match the project control or supply circuit |
| Rating / operating window | تيار متردد AC-15 230 فولت 6 أمبير؛ تيار مستمر DC-13 110 فولت 1 أمبير | Use the published range; do not infer missing ratings |
| Interface | مُثَبَّتٌ كَمُلْحَقٍ مُعَدَّلٍ مَعَ قَاطِعِ الدَّائِرَةِ المُتَوَافِقِ | Verify the compatible breaker, panel, base or rail interface |
| Wiring | غير مدون على سجل المنتج | Final conductor and protection selection follows the project design and local rules |
| مستندات | IEC 60947-5-1 | Request the exact drawing and applicable compliance documents for the ordered version |
Function and signal path
Alarm switch for fault-trip indication. Confirm whether the circuit needs status feedback, fault alarm, remote trip or voltage release.
Control-circuit fit
AC 230V 50Hz / DC 110V. Match the control voltage and operating window to the project circuit; never assume a nearby rating is interchangeable.
Mechanical interface
installed as a modular accessory with the compatible breaker. Confirm breaker family, rail/base or panel interface, clearances and maintenance access.
Wiring and documentation
not stated on the product record. Request the exact drawing and installation document for the ordered configuration.
Ordering Guide
- Specify the exact model and accessory function: CQAS2, alarm switch for fault-trip indication.
- State the control/supply voltage and any required operating window.
- Confirm the compatible breaker family, panel, base or DIN-rail interface.
- Provide quantity, destination market, wiring details and required technical documents.
- Ask CHAC to verify any non-standard marking, packaging or configuration request before production.
Installation and Coordination Checks
- Use the exact product drawing and installation instructions for the ordered configuration.
- Verify voltage, conductor, terminal, enclosure, clearances and maintenance access.
- Check the accessory’s signal or trip logic against the control circuit and upstream/downstream protection.
- Installation, testing and maintenance must be carried out by qualified personnel under applicable rules.
تعيين النوع

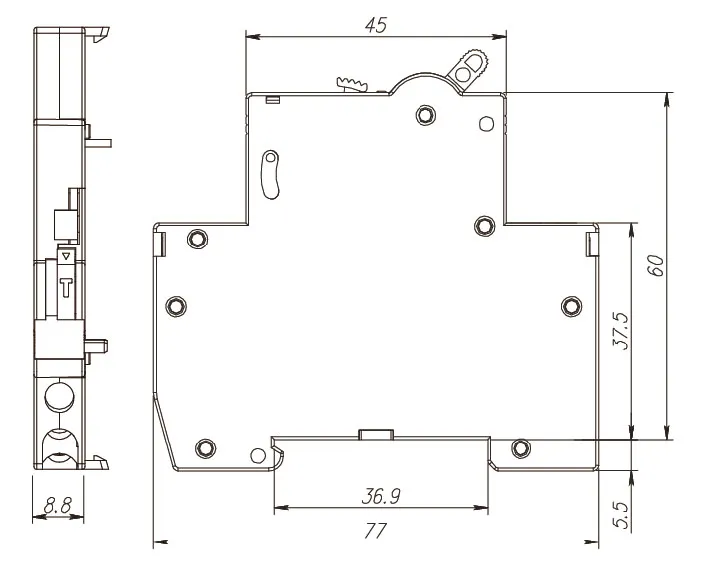

الأبعاد (مم)
المواصفات الفنية
| معامل | ||
| AC-15 | Rated operational Voltage | AC 230V 50Hz |
| Rated operating current | 6A | |
| DC-13 | Rated operational Voltage | DC110V |
| Rated operating current | 1A | |
| Mechanical Life | 10000 | |
| معايير | GB/T 14048.5, IEC 60947-5-1 | |
