CQM6L Leakage-Integrated MCCB OEM/ODM Manufacturer
Product Features
■ Integrated Safety: Combines the overcurrent protection of a standard MCCB with earth leakage (RCCB) functionality in a single device for enhanced safety.
■ Seamless Compatibility: Shares the same compact dimensions and accessory platform as the standard CQM6 series, allowing for easy upgrades.
■ Selective Tripping: Offers configurable options for the N-pole (protected/unprotected, combinable) to meet specific system grounding requirements.
■ High Reliability: Maintains the proven environmental resilience and mechanical durability of the CQM6 product line.
Compliance
■ Meets international and regional standards including
IEC/EN 60947-1( General Rules) GB/T 14048.1
IEC/EN 60947-2(Circuit-Breakers) GB/T 14048.2
IEC/EN 60947-3( Switchgear ) GB/T 14048.3
IEC/EN 60947-4( Contactors & Motor-Starters) GB/T 14048.4

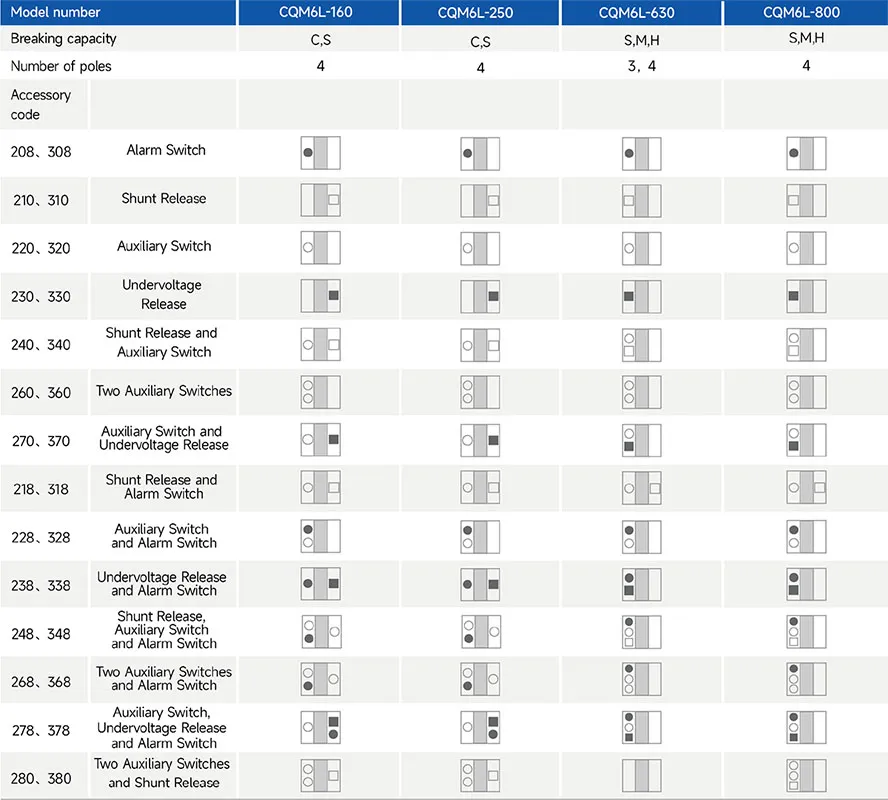

Accessory List

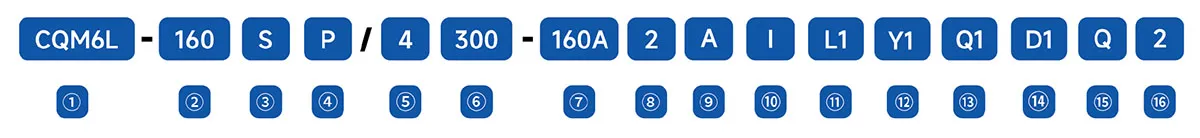

Selection Guide
| Product code ① | Shell frame grade ② | Breaking capacity ③ | Operating method ④ | The number of poles ⑤ | ||||
| CQM6L | 160 | C | P | 4 | ||||
| Molded case circuit breaker |
C | S | M | H | P:Motorized operation Z:Turning handle W.Direct operation |
3-pole 4-pole |
||
| 160 | 160 | 25/18 | 35/25 | / | / | |||
| 250 | 250 | 25/18 | 35/25 | / | / | |||
| 630 | 630 | / | 35/25 | 50/35 | 75/75 | |||
| 800 | 800 | / | 35/25 | 50/35 | 75/75 | |||
| 1250 | 1250 | / | 35/25 | 50/35 | 75/75 | |||
| Decoupler method and internal accessories ⑥ | Rated current A ⑦ | Function ⑧ | Optional code for four-pole products ⑨ | Special code ⑩ | |
| 300 | 160A | 2 | A | I | |
| The first digit indicates the type of detent 2:Instantaneous detent only 3:Duplicate detent Note:The last two digits are the accessory designator(see accessory table). |
160 | 10,16,20,32,40,50,63,80,100,125,140,160 | 1:For power distribution 2:For motor protection |
A:N-pole is unprotected and cannot be combined B:N-pole is unprotected and can be combined C:N-pole is protected and can be combined D:N-pole is protected and cannot be combined |
I: Overload alarm non trip function |
| 250 | 100,125,140,160,180,200,225,250 | ||||
| 630 | 250,315,350,400,500,630 | ||||
| 800 | 500,630,700,800 | ||||
| Product code ⑪ | Breaking capacity ⑫ | ||||||
| L1 | Y1 | ||||||
| Fixed delay type | Quick three-step adjustable | Fixed delay type | Quick three-step adjustable | ||||
| L1:30 | L6:200 | L11:30,50,100 | Y1:0.1S | Y4:0.4S | Y7:0.7S | Y10:1.0S | Y13:0.45,1,2 |
| L2:50 | L7:300 | L12:30,100,200 | |||||
| L3:75 | L8:500 | L13:30,100,500 | Y2:0.2S | Y5:0.5S | Y8:0.8S | Y11:1.1S | Y14:1,2,3 |
| L4:100 | L9:500 | L14:100,300,500 | |||||
| L5:150 | L10:1000 | L15:100,300,500 | Y3:0.3S | Y6:0.6S | Y9:0.9S | Y12:1.2S | |
| L16:100,300,1000 | |||||||
| Accessory Voltage ⑬ | Motorized operating voltage ⑭ | Installation ⑮ | Whether to install a terminal block ⑯ | |||
| Q1 | D1 | Q | 2 | |||
| Undervoltage detent Q1:AC220V Q2:AC240V Q3:AC380V Q4:AC415V |
Shunt release F1:AC220V F2:AC380V F3:DC110V F4:DC24V |
Auxiliary alarm J1:AC125V J2:AC250V J3:DC125V J4:DC24V |
DC1 Electrical Operation D1:AC220V D2:AC230V D3:AC380V D4:AC400V |
DC3 Electrical Operation D5:AC230V D6:AC110V D7:DC220 D8:DC110 D9:AC110~240V D10:DC100~220V |
Q:Front of plate H:Rear of plate C:Inserted |
1:No installation 2:Installation |
| Note:When motorized operation is selected,please refer to the external accessories for the two voltages applicable for motorized operation. | ||||||
Main Technical Parameters
| Model number | CQM6L-160 | CQM6L-250 | ||||
| Rated current of frame level Inm(A) | 160 | 250 | ||||
| Number of poles | 4 | 4 | ||||
| Rated current In(A),at 40℃,50℃,55℃ | 10, 16, 20, 32, 40, 50, 63, 80,100, 125, 160 | 125,140,160,180,200,225,250 | ||||
| Rated operating voltage Ue(V),AC 50/60Hz | 400/415 | 400/415 | ||||
| Rated insulation voltage Ui (V) | 800 | 800 | ||||
| Rated impulse withstand voltage Uimp(KV) | 8 | 8 | ||||
| Breaking capacity designation | C | S | C | S | ||
| Short-circuit breaking capacity Icu/Ics(kA) | AC400/415V | 25/18 | 35/25 | 25/18 | 35/25 | |
| Selectivity category | A | A | A | A | ||
| Number of operating cycles(cycle) | ON | 6000 | 6000 | |||
| OFF | 10000 | 10000 | ||||
| Trip mechanisms and protection types | Magnetic trip | Power distribution protection | ● | ● | ● | ● |
| Motor protection | ● | ● | ● | ● | ||
| Thermal-magnetic trip | Power distribution protection | ● | ● | ● | ● | |
| Motor protection | ● | ● | ● | ● | ||
| Accessory | Auxiliary contacts | ● | ● | ● | ● | |
| Alarm contacts | ● | ● | ● | ● | ||
| Shunt disconnect | ● | ● | ● | ● | ||
| Undervoltage detent | ● | ● | ● | ● | ||
| Manual operating mechanism | ● | ● | ● | ● | ||
| Motorized operating mechanism | ● | ● | ● | ● | ||
| Backplane wiring | ● | ● | ● | ● | ||
| Inserted | ● | ● | ● | ● | ||
| Coupling plate | ● | ● | ● | ● | ||
| Partition between phases | ● | ● | ● | ● | ||
| Derivative products | Dedicated for prepayment electric meters | ● | ● | ● | ● | |
| Overload alarm without trip | ● | ● | ● | ● | ||
| Overall dimensions (mm) (a-b-c-ca) |  |
4 P | 120-155-70-94 | 140-165-70-96 | ||
Note:● for optional accessories;”-“for no optional accessories.
| Model number | CQM6L-630 | CQM6L-800 | ||||||
| Rated current of frame level Inm(A) | 630 | 800 | ||||||
| Number of poles | 3, 4 | 4 | ||||||
| Rated current In(A),at 40℃,50℃,55℃ | 250, 315, 350, 400, 500, 630 | 500,630,700,800 | ||||||
| Rated operating voltage Ue(V),AC 50/60Hz | 400/415 | 400/415 | ||||||
| Rated insulation voltage Ui (V) | 800 | 800 | ||||||
| Rated impulse withstand voltage Uimp(KV) | 8 | 8 | ||||||
| Breaking capacity designation | S | M | H | S | M | H | ||
| Short-circuit breaking capacity Icu/Ics(kA) | AC400/415V | 35/25 | 50/35 | 75/75 | 35/25 | 50/35 | 75/75 | |
| Selectivity category | A | A | A | A | A | A | ||
| Number of operating cycles(cycle) | ON | 3000 | 3000 | |||||
| OFF | 8000 | 8000 | ||||||
| Trip mechanisms and protection types |
Magnetic trip | Power distribution protection | ● | ● | ● | ● | ● | ● |
| Motor protection | ● | ● | ● | ● | ● | ● | ||
| Thermal-magnetic trip | Power distribution protection | ● | ● | ● | ● | ● | ● | |
| Motor protection | ● | ● | ● | ● | ● | ● | ||
| Accessory | Auxiliary contacts | ● | ● | ● | ● | ● | ● | |
| Alarm contacts | ● | ● | ● | ● | ● | ● | ||
| Shunt disconnect | ● | ● | ● | ● | ● | ● | ||
| Undervoltage detent | ● | ● | ● | ● | ● | ● | ||
| Manual operating mechanism | ● | ● | ● | ● | ● | ● | ||
| Motorized operating mechanism | ● | ● | ● | ● | ● | ● | ||
| Backplane wiring | ● | ● | ● | ● | ● | ● | ||
| Inserted | ● | ● | ● | ● | ● | ● | ||
| Coupling plate | ● | ● | ● | ● | ● | ● | ||
| Partition between phases | ● | ● | ● | ● | ● | ● | ||
| Derivative products | Dedicated for prepayment electric meters | ● | ● | ● | ● | ● | ● | |
| Overload alarm without trip | ● | ● | ● | ● | ● | ● | ||
| Overall dimensions (mm) (a-b-c-ca) |
 |
4 P | 185-257-105-155 | 280-275-105-155 | ||||
Note:● for optional accessories;”-“for no optional accessories.
Operating Characteristics
1.The inverse time operating characteristics of power distribution circuit breakers when all poles are energized simultaneously at anambient airtemperature of +40℃(with no humidity compensation)are shown in the following table:
| Test current designation | Setting current multiple | Conventional time | Initial state |
| In≤63 In>63 | |||
| Conventional non-tripping current | 1.05 | ≥1h ≥2h | Cool state |
| Conventional tripping current | 1.3 | <1h<2h | Hot state |
2.The inverse time action characteristics of circuit breakers for motor protection without humidity compensation when all poles areenergizedsimultaneously at an ambient air temperature of +40℃ are shown in the following table:
| Test current designation | Setting current multiple | Conventional time | Initial state |
| In≤800 | |||
| Conventional non-tripping current | 1.0 | ≥2h | Cool state |
| Conventional tripping current | 1.2 | <2h | Hot state |
3.Action characteristics under short-circuit condition:The short-circuit curent setting value of the instantaneous tripper of the circuit breaker forpower distribution is 10In
The short-circuit current setting value of the instaneous tripper of the circuit breaker for motorprotection is 12ln
The accuracy of the short-circuit curent setting value of the instantaneous tripper is 20% of the short-circuit currentsetting value.

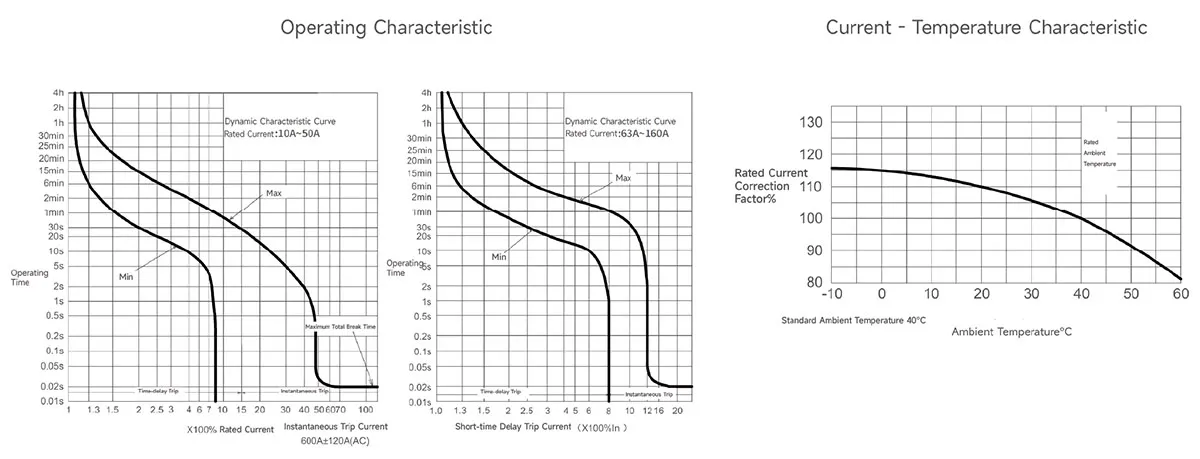

CQM6L-125 Operating Characteristic Curve

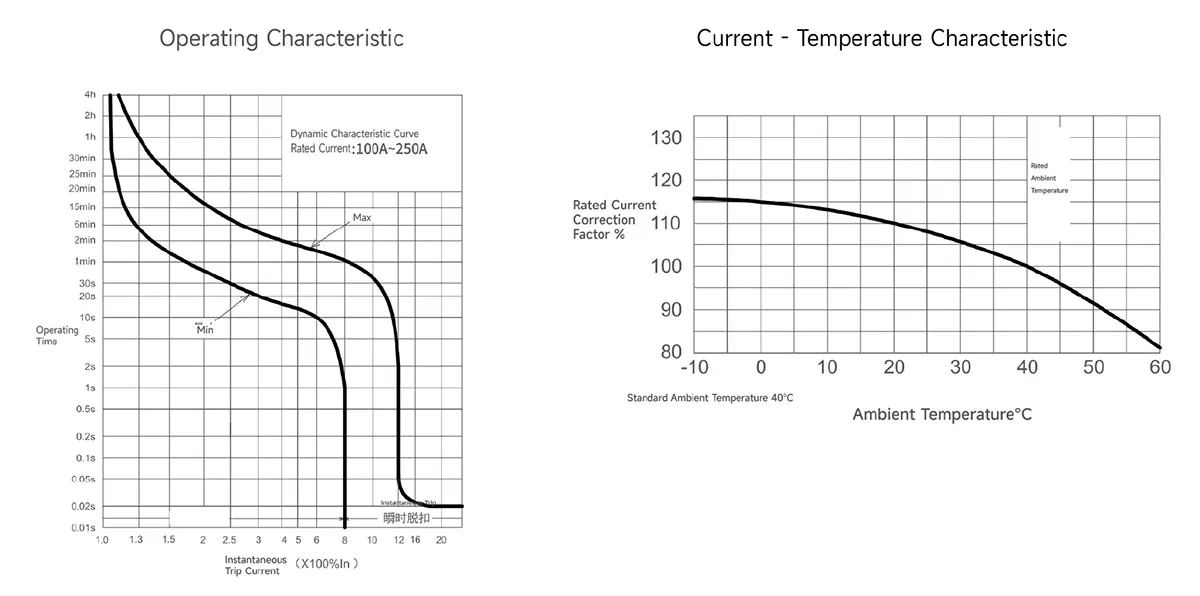

CQM6L-250 Operating Characteristic Curve

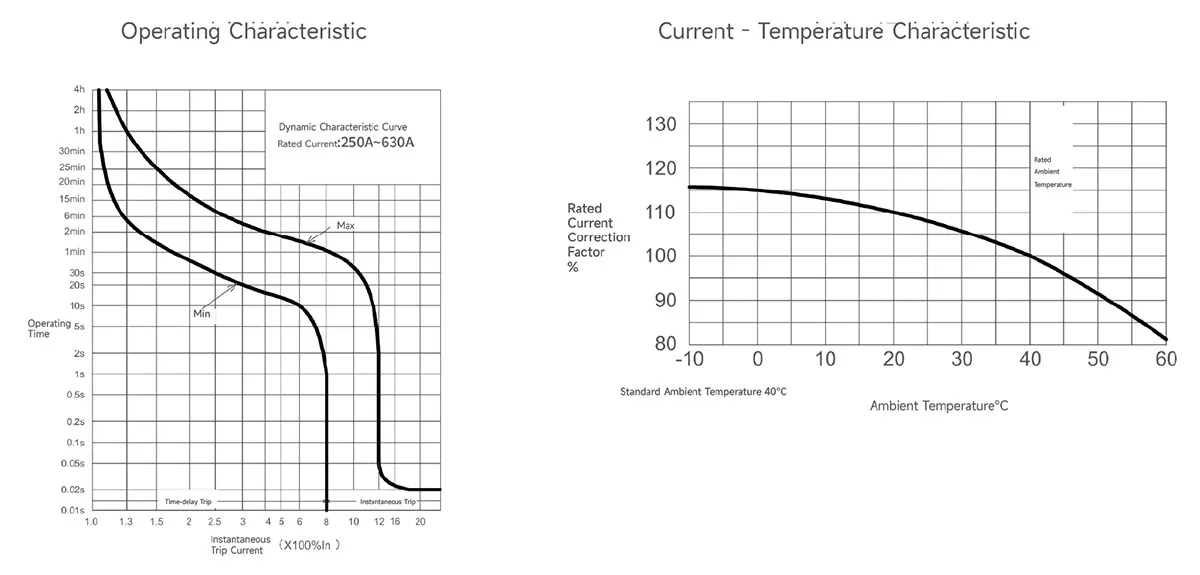

CQM6L-630 Operating Characteristic Curve

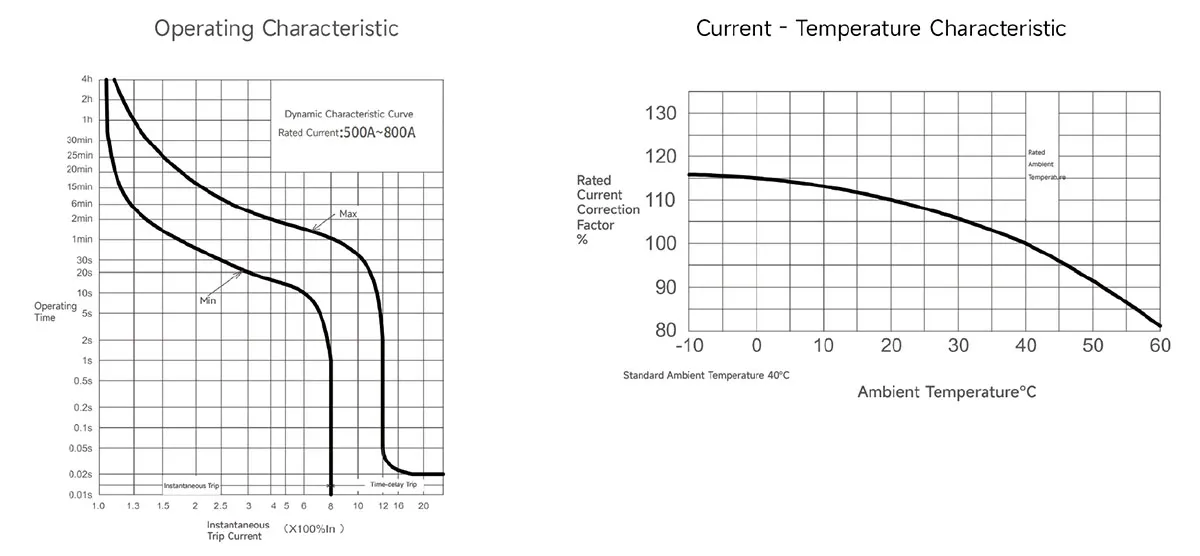

CQM6L-800 Operating Characteristic Curve

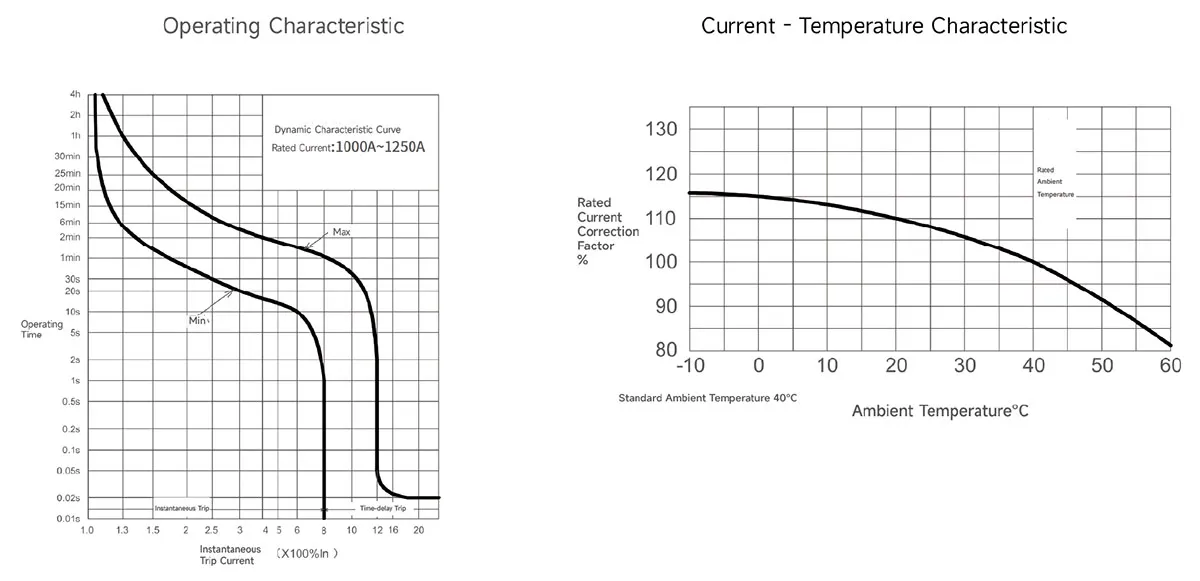

CQM6L-1250 Operating Characteristic Curve

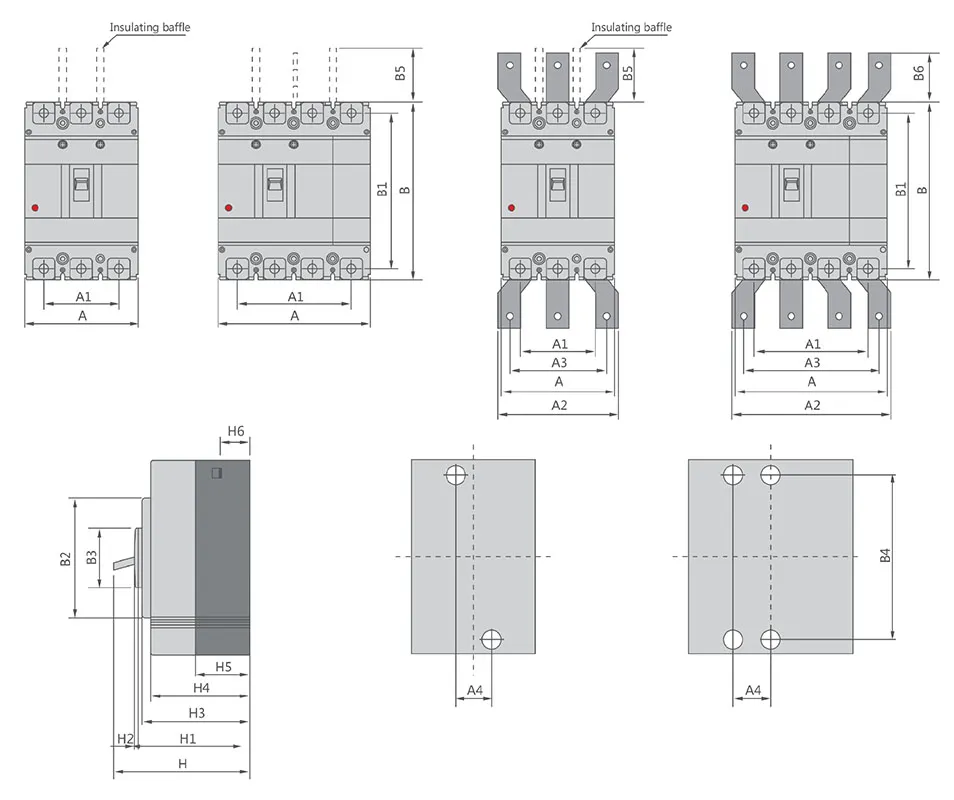

Outline and Installation Dimensions(mm)
| Molded case circuit breaker |
Overall dimension | Installation dimensions |
Bolt | |||||||||||||||||||||
| A | A1 | A2 | A3 | B | B1 | B2 | B3 | B5 | B6 | H | H1 | H2 | H3 | H4 | H5 | H6 | A4 | B4 | ||||||
| 3P | 4P | 3P | 4P | 3P | 4P | 3P | 4P | |||||||||||||||||
| CQM6L-160 | – | 120 | – | 90 | – | – | – | – | 155 | 134 | 103 | 50 | 50 | – | 94 | 72 | 4 | 70 | 61 | 41 | 24 | 30 | 132 | M8 |
| CQM6L-250 | – | 140 | – | 105 | – | – | – | – | 165 | 144 | 103 | 50 | 100 | – | 96 | 72 | 4 | 70 | 61 | 46 | 24 | 35 | 126 | M8 |
| CQM6L-630 | – | 185 | – | 132 | – | 196 | – | 168 | 257 | 230 | 179 | 90 | 110 | 42 | 155 | 107 | 5 | 105 | 97 | 64 | 35 | 44 | 194 | M10 |
| CQM6L-800 | – | 280 | – | 210 | – | 250 | – | 210 | 275 | 243 | 192 | 90 | 110 | 87 | 155 | 107 | 5 | 104 | 97 | 65 | 24 | 70 | 242.5 | M12 |
