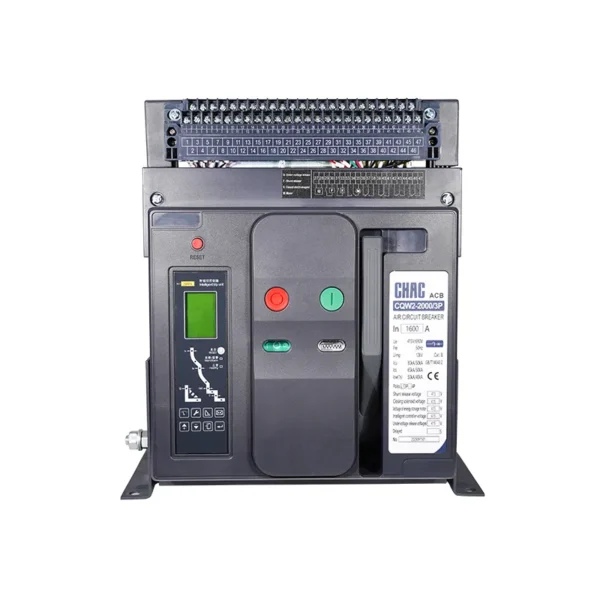

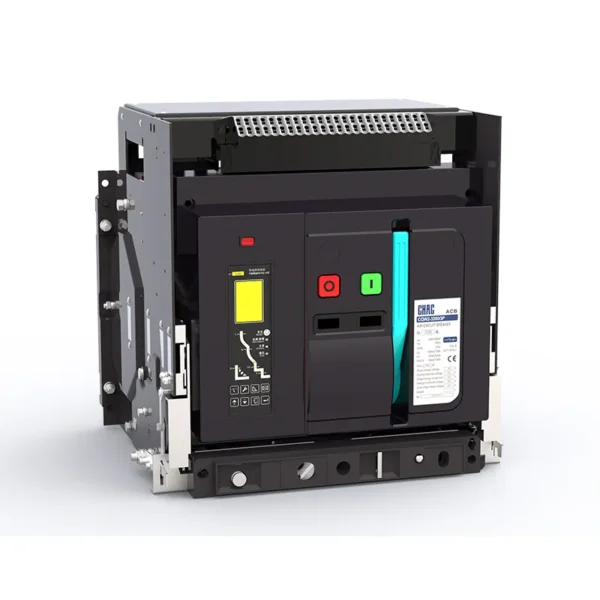

Interruptor Automático Serie CQW2

Polacos
3P / 4P

Corriente nominal:
200A-6300A

Voltaje nominal
400V/690V AC

Capacidad de ruptura:
Icu up to 120kA at AC415V

Estándar
IEC 60947-2
Personalización
Servicio OEM/ODM integral

Características del producto

■ Rated current from 200A to 6300A, suitable for AC 400V/690V, 50Hz distribution networks.

■ Provides comprehensive protection: overload, short-circuit, undervoltage, and earth fault protection, with isolation functionality.

■ High breaking capacity (Icu up to 120kA at AC415V) and short-circuit withstand capability.

■ Modular and compact design supports both fixed and withdrawable installation.

■Intelligent controller options (L/M/H-type) with precise selective protection, communication support (e.g., Profibus-DP), and remote monitoring capabilities.

■ Complies with IEC 60947-2 and GB/T 14048 standards.

Operating & Installation Conditions

■ Ambient temperature: −5℃ to +40℃ (average ≤ +35℃ within 24 hours).

■ Altitude: ≤ 2000 m (derating required above 2000 m).

■ Pollution degree: 3.

■ Relative humidity: ≤ 50% at +40℃; higher humidity permissible at lower temperatures.

■ Suitable for installation in non-explosive environments, free of conductive dust and corrosive substances.

■ Must be mounted vertically (±5° tilt tolerance).

■ Protection rating: IP30 (IP40 with door frame mounted).

■ Installation category:

  • Main circuit & undervoltage release: Ⅳ
  • Auxiliary/control circuits: Ⅲ

■ Connection: Horizontal or vertical, based on model configuration.

Designación del tipo

Code Position Code Symbol Meaning & Explanation
Enterprise Code Zhejiang Chuangqi Electric Co., LTD.
Product Code Universal Circuit Breaker
Design Serial Number Design Serial Number
Frame Rating Code 1600, 2000, 3200, 4000, 6300
Número de polos 3: 3-Pole, 4: 4-Pole
Mounting Type D: Drawout Type, F: Fixed Type
Rated Current 200~6300A
Intelligent Controller L: Electronic Type, M: Standard Type, H: Communication Type
Control Circuit Voltage AC230V, AC400V, DC220V, DC110V

Especificaciones técnicas

Parámetro CQW2-1600 CQW2-2000 CQW2-3200
Rated Current In (A) 200, 400, 630, 800
1000, 1250, 1600
400, 630, 800, 1000
1250, 1600, 2000
2000, 2500, 2900,
N-pole Rated Current 100%In 100%In 100%In
Rated Operational Voltage Ue AC415V/690V AC415V/690V AC415V/690V
Rated Frequency f 50/60Hz 50/60Hz 50/60Hz
Rated Insulation Voltage Ui 1000V 1250V 1000V
Rated Impulse Withstand Voltage Uimp 12kV 12kV 12kV
Número de polos 3, 4 3, 4 3, 4
Total Break Time ≤30ms ≤30ms ≤30ms
Closing Time ≤70ms ≤70ms ≤70ms
Rated Ultimate Short-Circuit AC415V 65kA 80kA 100kA
Breaking Capacity Icu (RMS) AC690V 42kA 65kA 75kA
Rated Service Short-Circuit AC415V 55kA 80kA 85kA
Breaking Capacity Ics (RMS) AC690V 35kA 65kA 65kA
Rated Making Capacity Icm AC415V 143kA 176kA 220kA
(Peak) AC690V 88kA 143kA 176kA
Rated Short-Time Withstand AC415V 42kA 60kA 85kA
Current Icw (RMS) AC690V 35kA 40kA 55kA
Operating Performance
(Number of operations)
Mechanical Life –
Maintenance-Free
10000 15000 15000
Mechanical Life –
With Maintenance
10000 15000 15000
Operating Frequency 20 operations/hour 20 operations/hour 20 operations/hour
Electrical Life – AC415V 15000 15000 15000
Electrical Life – AC690V 30000 30000 30000
Operating Frequency 60 operations/hour 60 operations/hour 60 operations/hour
Control and Protection Unit L Type (Electronic Type)
M Type (Standard Type)
H Type (Communication Type)
Connection Method Horizontal
Vertical
Estándar IEC60947-2, GB/T14048.2
Parámetro CQW2-4000 CQW2-6300
Rated Current In (A) 3200, 3600, 4000 4000, 5000, 6300
N-pole Rated Current 100%In 100%In
Rated Operational Voltage Ue AC415V/690V AC415V/690V
Rated Frequency f 50/60Hz 50/60Hz
Rated Insulation Voltage Ui 1000V 1000V
Rated Impulse Withstand Voltage Uimp 12kV 12kV
Número de polos 3, 4 3, 4
Total Break Time ≤30ms ≤30ms
Closing Time ≤70ms ≤70ms
Rated Ultimate Short-Circuit
Breaking Capacity Icu (RMS)
AC415V 100kA 120kA
AC690V 80kA 85kA
Rated Service Short-Circuit
Breaking Capacity Ics (RMS)
AC415V 85kA 100kA
AC690V 70kA 75kA
Rated Making Capacity Icm
(Peak)
AC415V 220kA 264kA
AC690V 176kA 187kA
Rated Short-Time Withstand
Current Icw (RMS)
AC415V 85kA 100kA
AC690V 70kA 75kA
Operating Performance
(Number of operations)
Mechanical Life –
Maintenance-Free
6000 1000
Mechanical Life –
With Maintenance
3000 800
Operating Frequency 20 operations/hour 20 operations/hour
Electrical Life – AC415V 12500 5000
Electrical Life – AC690V 25000 10000
Operating Frequency 60 operations/hour 60 operations/hour
Control and Protection Unit L Type (Electronic Type)
M Type (Standard Type)
H Type (Communication Type)
Connection Method Horizontal
Vertical
Estándar IEC60947-2, GB/T14048.2

Lista de accesorios

Accessory Name Parameters
Estándar
Configuración
Closing Solenoid AC230V, AC400V, DC220V, DC110V
Shunt Release AC230V, AC400V, DC220V, DC110V
Energy Storage Motor AC230V, AC400V, DC220V, DC110V

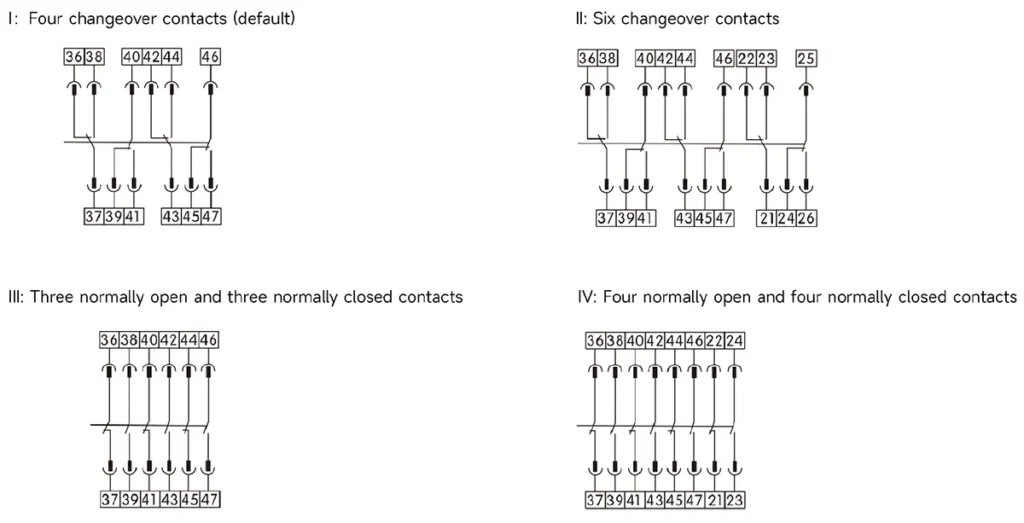

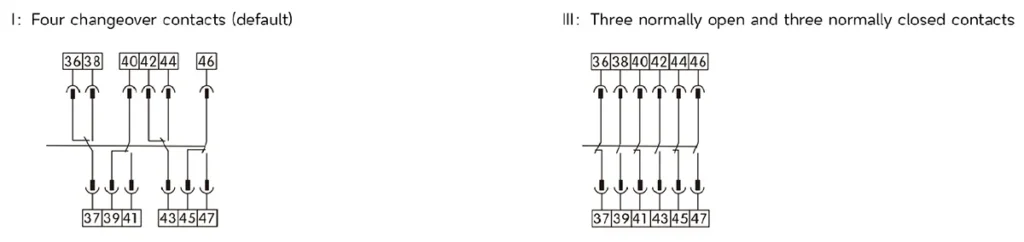

Auxiliary Switch 4 changeover contacts (default), 5 changeover contacts, 4NO+4NC, 6NO+6NC
Others Phase barrier, Door frame, Drawer base three-position lock
Optional
Configuración
Undervoltage Release AC230V, AC400V
Instantaneous, Delayed: 0.5s, 1s, 3s, 5s
Trip Locking Device 1 lock + 1 key, 2 locks + 1 key, 3 locks + 2 keys, 6NO+6NC
Mechanical Interlock For 2 circuit breakers: Linkage interlock (vertical), Cable interlock
For 3 circuit breakers: Linkage interlock (vertical), Cable interlock
Others Residual Current Transformer, External Neutral Current Transformer, Relay Module
Communication Module (Profibus-DP), Power Module, Wireless Remote Control Module

Intelligent Controller

Parámetro CQW2-L CQW2-M CQW2-2M
Basic
Functions
Overload long-time delay protection;
Short-time delay short-circuit protection;
Instantaneous short-circuit protection;
Ground fault protection;
Dial switch grading setting;
Running current bar graph indication;
Test function;
Fault recording function;
Thermal memory function
Overload long-time delay protection;
Short-time delay short-circuit protection;
Instantaneous short-circuit protection;
Ground fault protection (differential type);
LED digital display;
Key setting method;
Ammeter function;
Test function;
Fault recording function;
Thermal memory function
Overload long-time delay protection;
Short-time delay short-circuit protection;
Instantaneous short-circuit protection;
Ground fault protection (differential type);
LED digital display;
Key setting method;
Ammeter function;
Test function;
Fault recording function;
Thermal memory function;
Clock function;
Self-diagnosis function;
Contact pattern and mechanical operation count
Optional
Functions
MCR make-break and over-limit tripping;
Contact output;
3P+N type neutral protection
MCR make-break and over-limit tripping;
Contact output;
Voltage function;
Residual current type leakage protection;
Clock function;
Current unbalance protection;
Remote reset function;
Load monitoring function;
3P+N type neutral protection;
Low voltage ride-through
MCR make-break and over-limit tripping;
Contact output;
Voltage function;
Residual current type leakage protection;
Current unbalance protection;
Remote reset function;
Load monitoring function;
3P+N type neutral protection;
Low voltage ride-through
Optional
Accessories
DC Power Module (DC110V/220V)
External N-phase Transformer
DC Power Module (DC110V/220V)
External N-phase Transformer
Ground Current Transformer ZT100
Residual Current Transformer ZCT1
ST201 Relay Module
ST-4 Power Module
ST Handheld Programmer
DC Power Module (DC110V/220V)
External N-phase Transformer
Ground Current Transformer ZT100
Residual Current Transformer ZCT1
ST201 Relay Module
ST-4 Power Module
ST Handheld Programmer

Nota:

1.Only one of the following functions can be selected: 3P+N neutral protection, groundcurrent type leakage protection, or residual current leakage protection. The correspondingtransformer accessory must be additionally selected.

2.Only one signal unit (S1, S2, or S3) can be selected.

3.For detailed instructions on the intelligent controller, please refer to the “SW1 Series Intelligent Controller User Manual”.

Parámetro CQW2-2H CQW2-3M CQW2-3H
Basic
Functions
Overload long-time delay protection;
Short-circuit short-time delay protection;
Short-circuit instantaneous protection;
Ground fault protection (differential type);
LED digital tube display;
Key setting method;
Ammeter function;
Fault memory function;
Thermal memory function;
Clock function;
Self-diagnosis function;
Contact pattern and mechanical operation count;
Communication function
Load monitoring (current method 1);
Multi-curve long-time delay protection;
Multi-curve short-time inverse-time protection;
Short-time definite-time protection;
Instantaneous protection;
Current unbalance (phase loss) protection;
Ground fault alarm;
Ground fault protection (default T-type);
Neutral protection;
Four-phase current and ground current measurement;
Thermal capacity;
Eight records of faults, alarms and status changes;
Historical current peak;
Contact equivalent;
Operation count;
Clock function;
Self-diagnosis;
Chinese graphical LCD display;
LCD status indicator;
Keyboard operation
Load monitoring (current method 1);
Multi-curve long-time delay protection;
Multi-curve short-time inverse-time protection;
Short-time definite-time protection;
Instantaneous protection;
Current unbalance (phase loss) protection;
Ground fault alarm;
Ground fault protection (default T-type);
Neutral protection;
Four-phase current and ground current measurement;
Thermal capacity;
Eight records of faults, alarms and status changes;
Historical current peak;
Contact equivalent;
Operation count;
Clock function;
Self-diagnosis;
Chinese graphical LCD display;
LCD status indicator;
Keyboard operation;
Communication function
Optional
Functions
MCR make-break and over-limit tripping;
Contact output;
Voltage function;
Residual current type leakage protection;
Clock function;
Current unbalance protection;
Remote reset function;
Load monitoring function;
3P+N type neutral protection;
Low voltage ride-through
Function Table: D, U, UD, P, PD, H
Select HD from the table (refer to function table description)
Signal Unit: S1, S2, S3
Load Monitoring: Current Method 2
3P+N Type Neutral Protection
Ground Current Type Leakage Protection
Residual Current Type Leakage Protection
Remote Reset Function
Function Table: D, U, UD, P, PD, H
Select HD from the table (refer to function table description)
Signal Unit: S1, S2, S3
Load Monitoring: Current Method 2
3P+N Type Neutral Protection
Ground Current Type Leakage Protection
Residual Current Type Leakage Protection
Remote Reset Function
Profibus-DP Communication Protocol
Device-net Communication Protocol
Optional
Accessories
DC Power Module (DC110V/220V)
External N-phase Transformer
Ground Current Transformer ZT100
Residual Current Transformer ZCT1
ST201 Relay Module
ST-4 Power Module
ST Handheld Programme
DC Power Module (DC110V/220V)
External N-phase Transformer
Ground Current Transformer ZT100
Residual Current Transformer ZCT1
ST201 Relay Module
Selective Zone Interlocking Protection Device
DC Power Module (DC110V/220V)
External N-phase Transformer
Ground Current Transformer ZT100
Residual Current Transformer ZCT1
ST201 Relay Module
Selective Zone Interlocking Protection Device
D U UD P
Demand Measurement(Current)
Demand Protection
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Overvoltage Protection
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Current Demand Measurement
Overvoltage Protection
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
Demand Protection
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Power Measurement
Power Factor Measurement
Energy Measurement
Overvoltage Protection
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
PD H HD
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Power Measurement
Power Factor Measurement
Energy Measurement
Demand Measurement (Current, Power)
Overvoltage Protection
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Power Measurement
Power Factor Measurement
Energy Measurement
Harmonic Measurement
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
Voltage Measurement
Frequency Measurement
Voltage Unbalance Rate Measurement
Phase Sequence Detection
Power Measurement
Power Factor Measurement
Energy Measurement
Demand Measurement (Current, Power)
Undervoltage Protection
Overvoltage Protection
Undervoltage Protection
Voltage Unbalance Protection
Overfrequency Protection
Underfrequency Protection
Phase Sequence Protection
Reverse Power Protection

Secondary Circuit Wiring Diagram

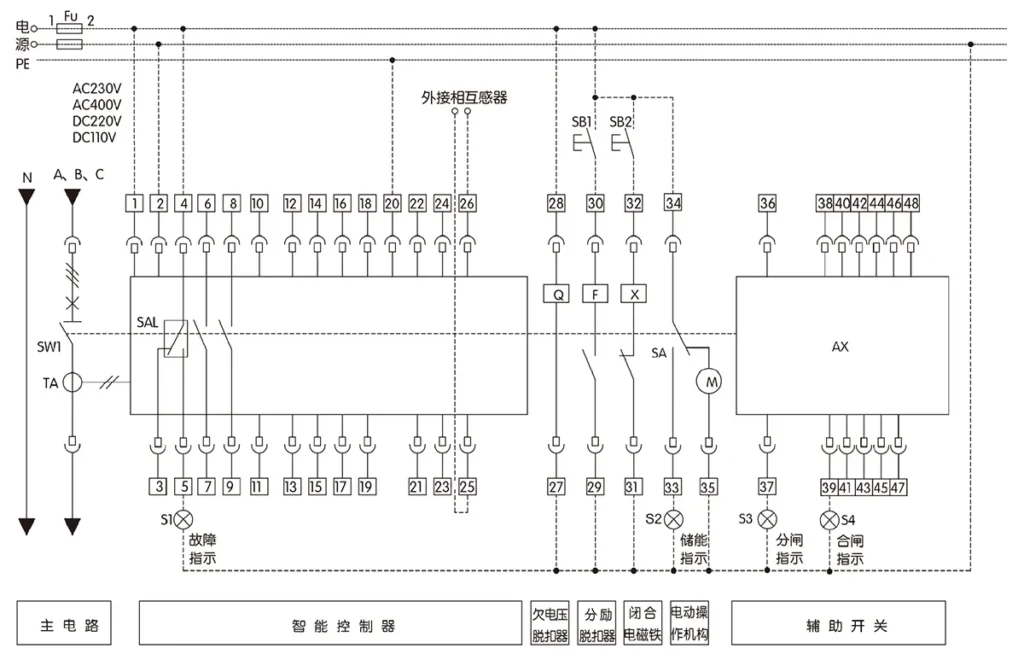

Wiring diagram of secondary circuit for SW1-1600-6300 circuit breakers equipped with L/M type intelligent controllers (auxiliary switch default

configuration: 4 changeover contacts)

Terminal Number Function Description Symbol Explanation Observaciones
1, 2 Auxiliary power input: AC230V,
AC400V, DC220V, DC110V
SW1 SW1 Universal Circuit Breaker Customer self-provided
For DC power: 1 is (+), 2 is (-) S1~S4 Signal lamp Customer self-provided
3, 4, 5 Fault trip auxiliary contact,
contact capacity: AC250V, 3A
TA Current transformer
20 Grounding (PE) SAL Micro switch Customer self-provided
27, 28 Undervoltage release SB1 Open button Customer self-provided
29, 30 Shunt release SB2 Close button
31, 32 Closing electromagnet x Closing electromagnet
33, 34, 35 Motor-operated mechanism
(motor energy storage),
37 connect green wire,
38 connect black wire,
39 connect red wire
F Shunt release
36~48 Auxiliary contact terminal Q Undervoltage release
M Motor-operated mechanism Customer self-provided
SA Travel switch of motor-operated mechanism Customer self-provided
Fu Fuse Customer self-provided
PE Grounding
N Neutral line (N phase)
A, B, C Phase line
For customer optional use of AX auxiliary switch form AX Auxiliary switch

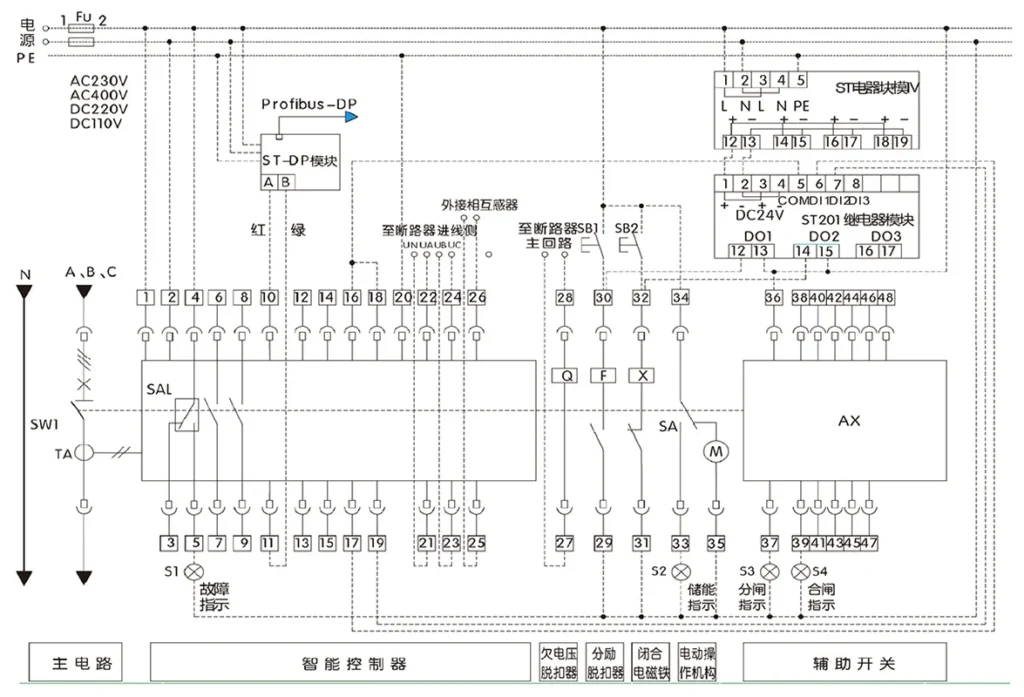

Wiring diagram of secondary circuit for SW1-1600-6300 circuitbreakers equipped with H type intelligent controllers (auxiliary :switch default configuration: 4 changeover contacts)

Terminal Number Function Description Symbol Explanation Observaciones
1, 2 Auxiliary power input: AC230V,
AC400V, DC220V, DC110V
SW1 SW1 Universal Circuit Breaker Customer self-provided
For DC power: 1 is (+), 2 is (-) S1~S4 Signal lamp Customer self-provided
3, 4, 5 Fault trip auxiliary contact,
contact capacity: AC250V, 3A
TA Current transformer
10, 11 Communication interface output,
10 is (+), 11 is (-)
SAL Micro switch Customer self-provided
12~15 DO1, Programmable signal output,
contact capacity: AC250V, 3A
SB1 Open button Customer self-provided
14, 15 DO2, Programmable signal output,
contact capacity: AC250V, 3A
SB2 Close button Customer self-provided
16, 17 DO3, Trip signal output, contact
capacity: AC250V, 3A
X Closing electromagnet
18, 19 DO4, Closing signal output,
contact capacity: AC250V, 3A
F Shunt release
20 Grounding (PE) Q Undervoltage release
21, 22, 23, 24 Voltage signal measurement,
21 connect N phase, 22 connect A
phase, 23 connect B phase,
24 connect C phase
M Motor-operated mechanism
25, 26 External N-phase transformer input SA Travel switch of motor-operated mechanism Customer self-provided
27, 28 Undervoltage release Fu Fuse Customer self-provided
29, 30 Shunt release PE Grounding
31, 32 Closing electromagnet N Neutral line (N phase)
33, 34, 35 Motor-operated mechanism (motor
energy storage), 37 connect green
wire, 38 connect black wire,
39 connect red wire
A, B, C Phase line
36~48 Auxiliary contact terminal AX Auxiliary switch
For customer optional use of AX auxiliary switch form ST-DP
Module
Required for Profibus-DP communication
ST-DP
Module
Required for communication function
ST201
Relay
Module
Required for communication function

Dimensiones (mm)

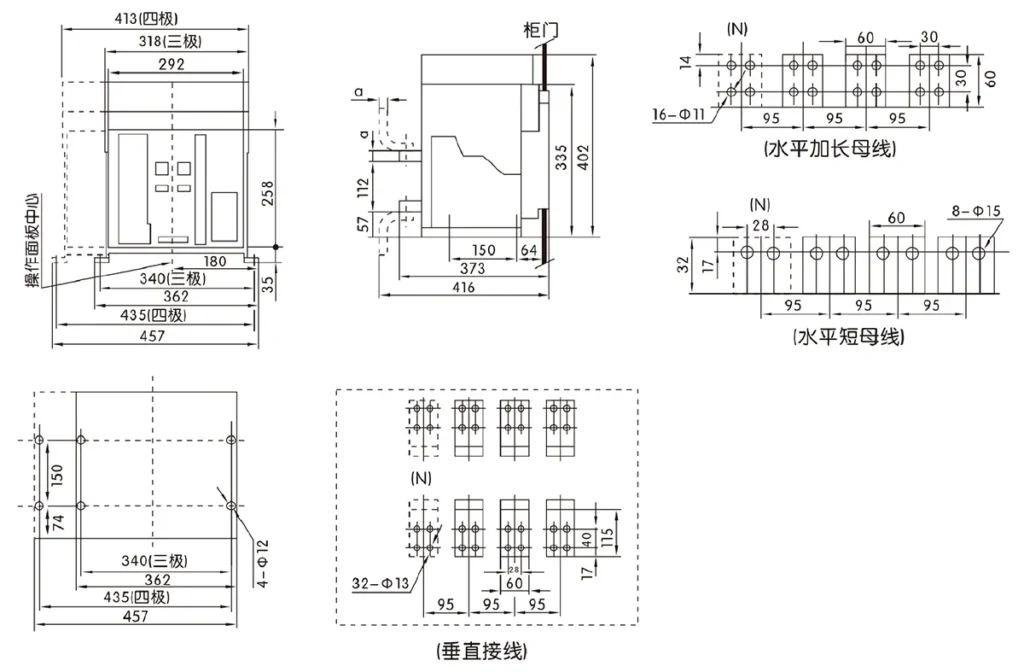

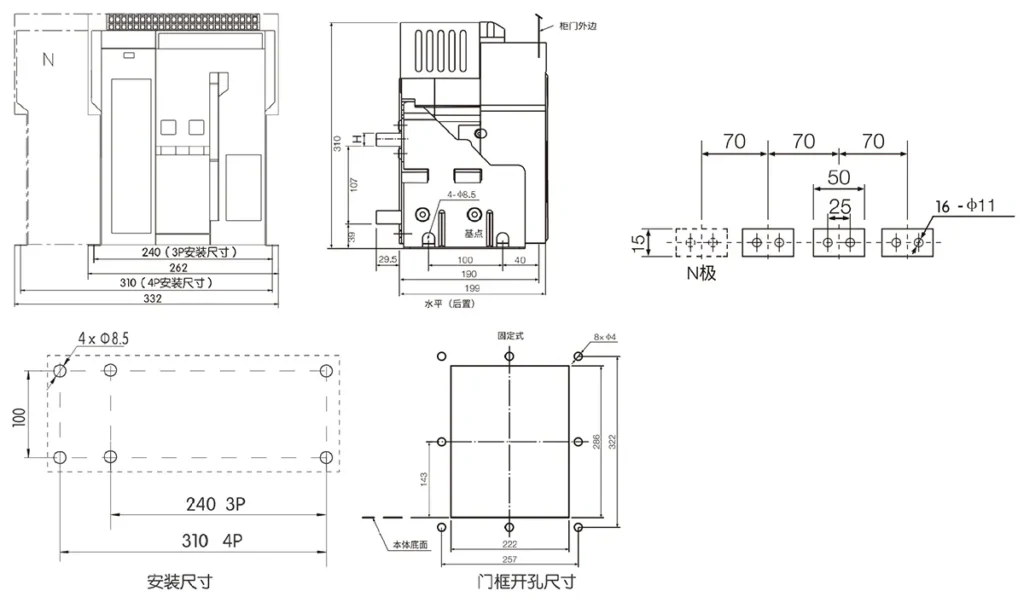

CQW2-1600 Series Fixed Type Overall Dimensions (Unit: mm)

Rated current H (mm)
200、400、630 6
800、1000 10
1250、1600 18

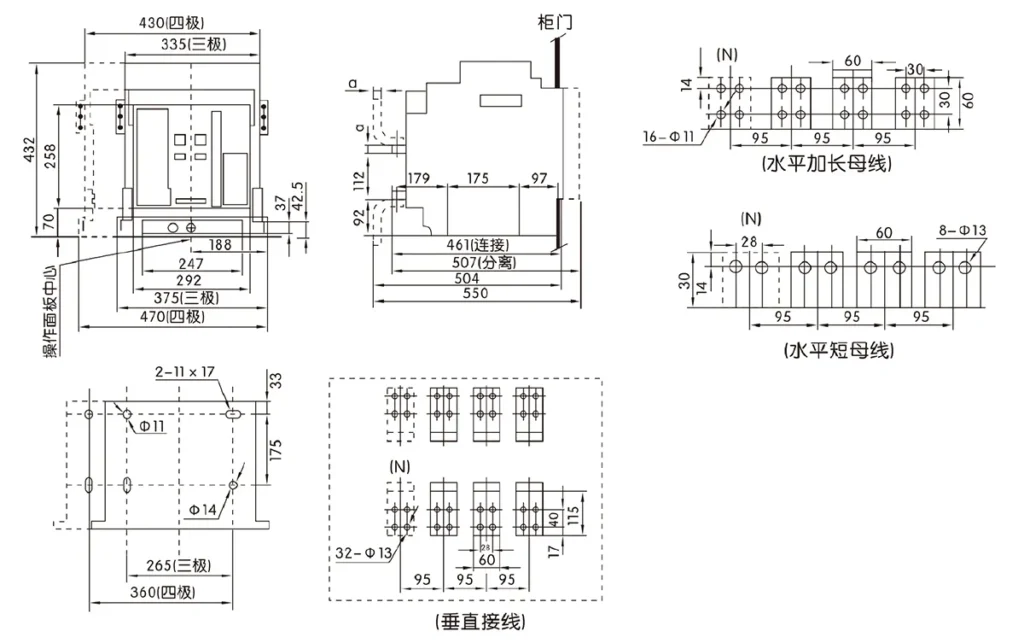

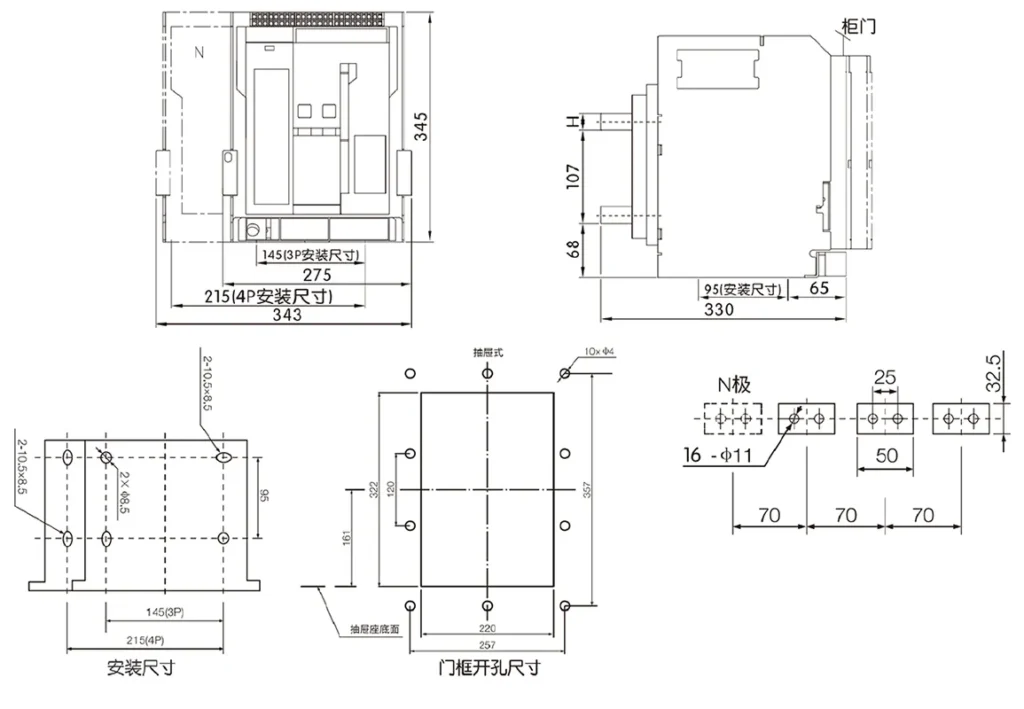

CQW2-1600 Series Drawout Type Installation Dimensions (Unit: mm)

Rated current H (mm)
200、400、630 6
800、1000 10
1250、1600 18

CQW2-1600 Series Fixed Type Overall Dimensions (Unit: mrm)

In a (mm)
400~800A 10
1000~1600A 15
2000A 20

CQW2-1600 Series Drawout Type Installation Dimensions (Unit: mm)

In a (mm)
400~800A 10
1000~1600A 15
2000A 20

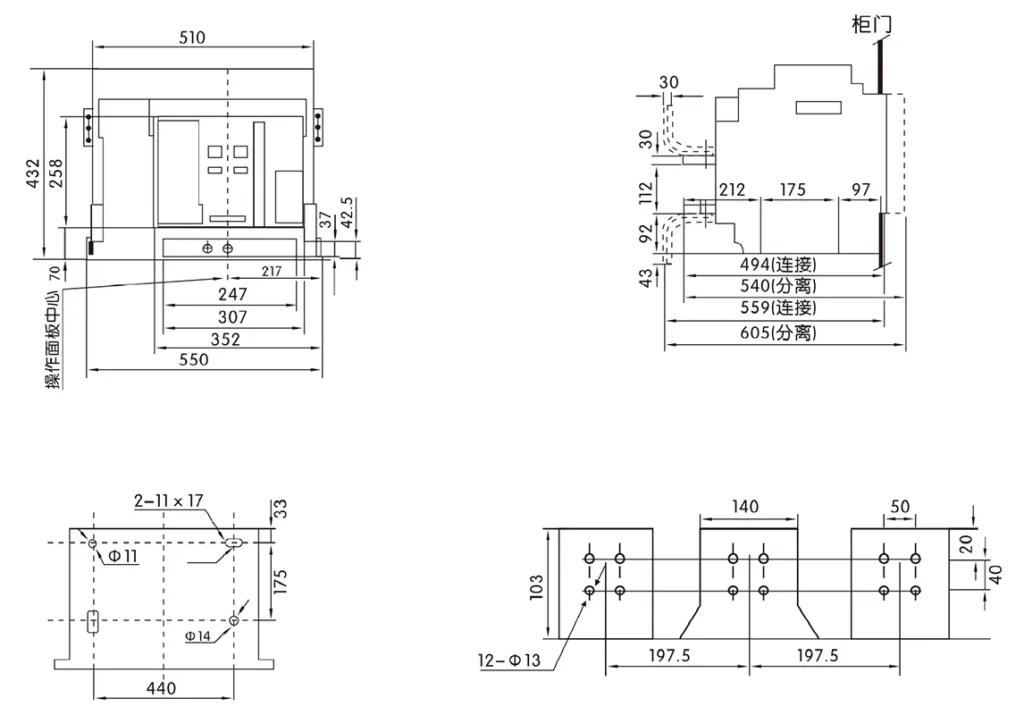

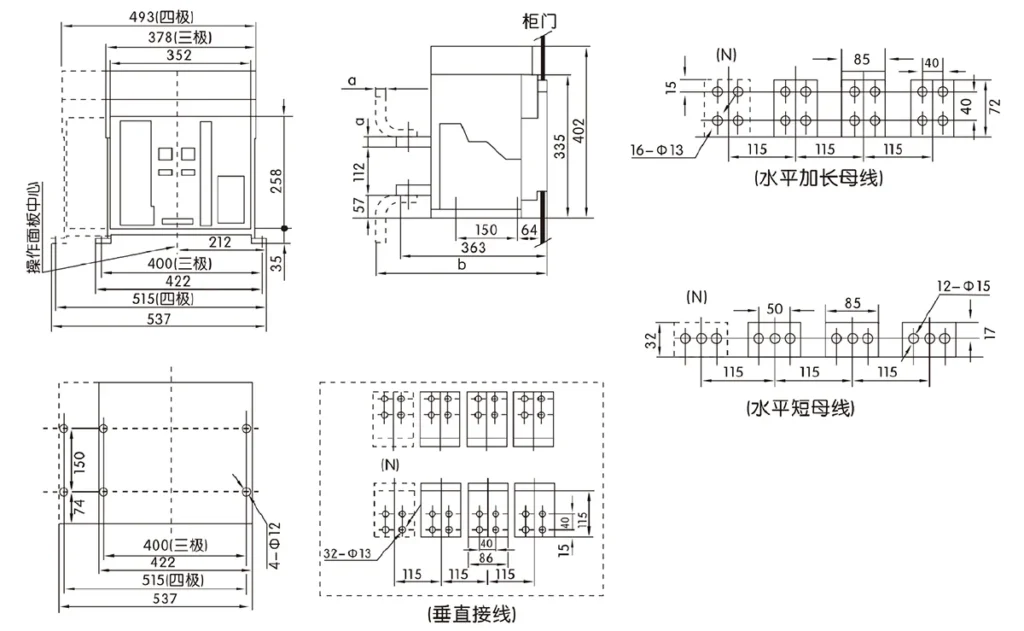

CQW2-1600 Series Fixed Type Overall Dimensions (Unit: rnm)

In a (mm) b (mm)
2000,2500A 20 408
2900~3200A 30 428

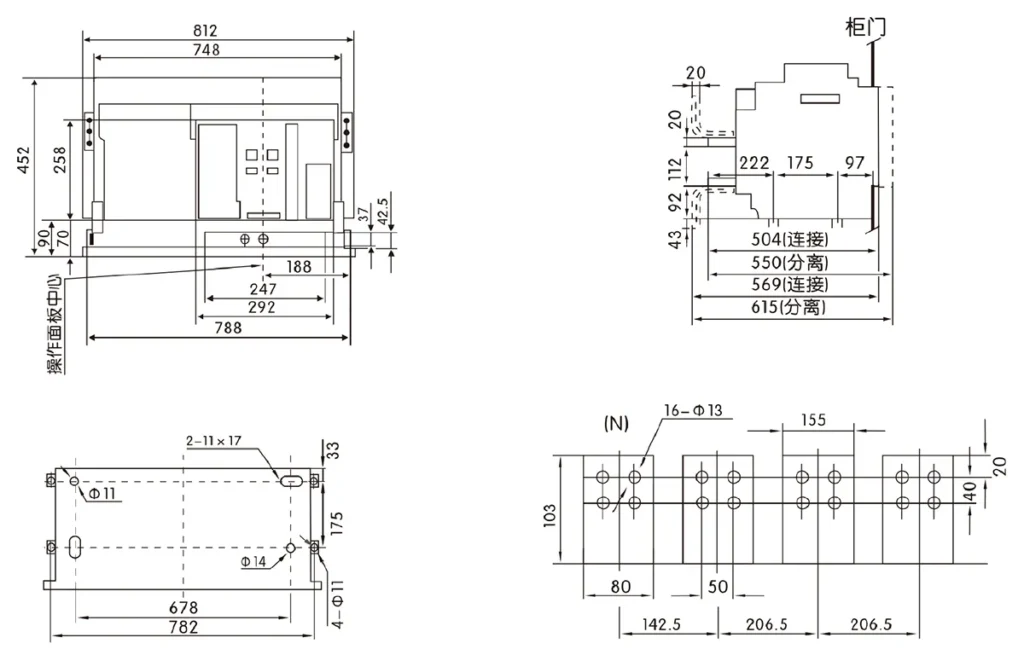

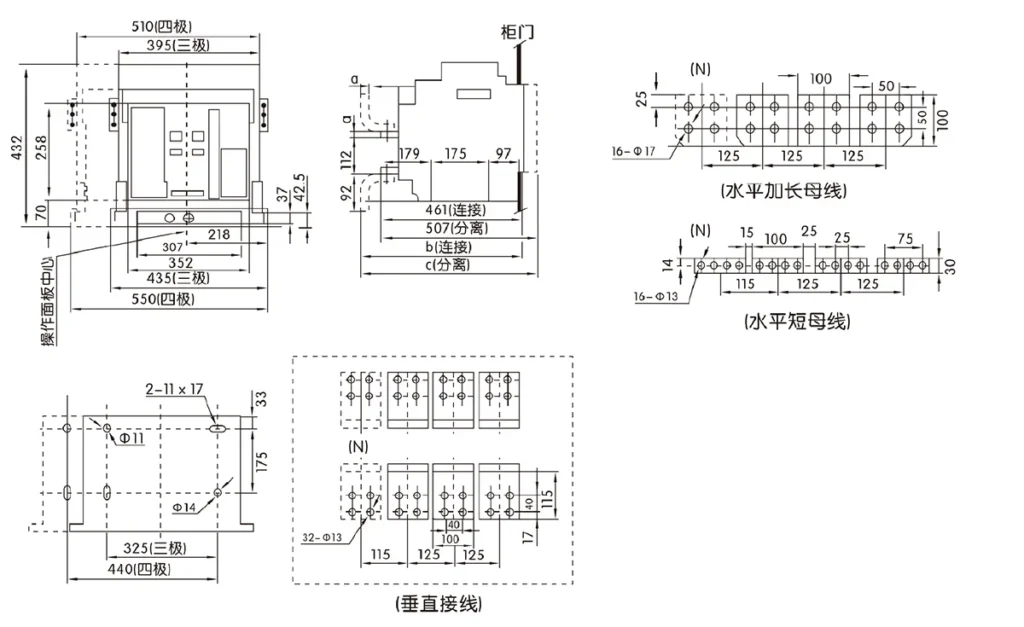

CQW2-1600 Series Drawout Type Installation Dimensions (Unit: mm)

In a (mm) b (mm) c (mm)
2000,2500A 20 506 552
2900-3200A 30 526 572

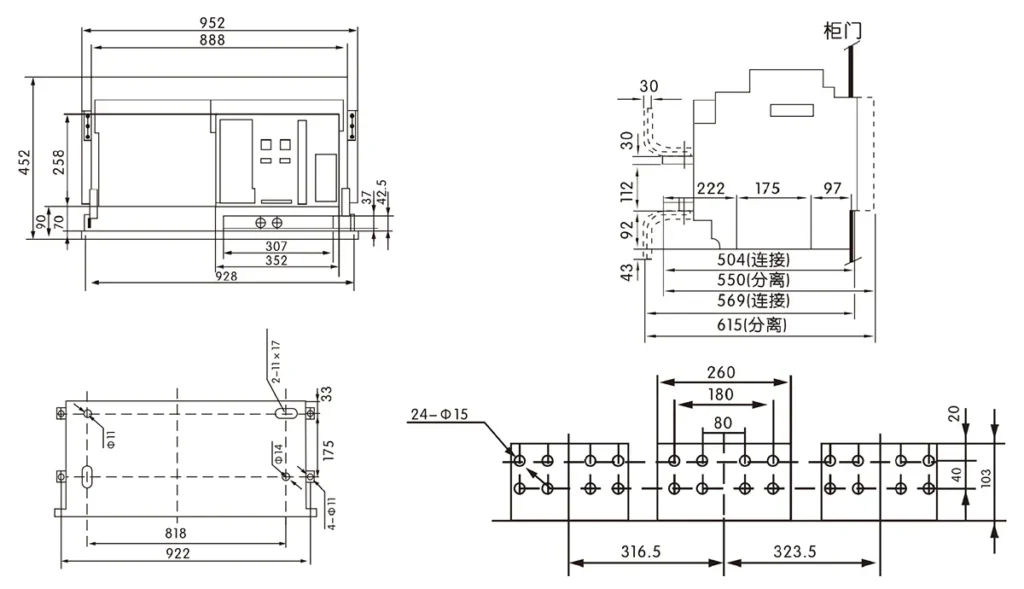

CQW2-4000 Series Drawout Type (3-Pole) Frame II Increased Capacity Type OvDimensions (Unit: mm)

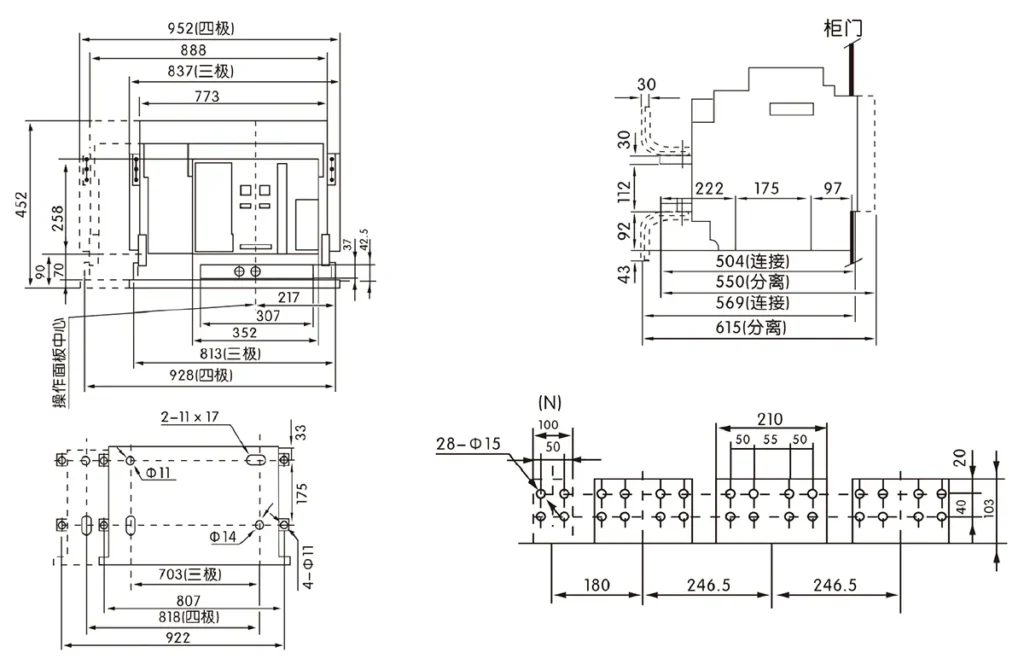

CQW2-4000 Series Drawout Type (4-Pole) Overall Dimensions (Unit: mm)

CQW2-6300 Series (In=5000A, 4000A) Drawout Type Overall Dimensions (Unit: mm)

CQW2-6300 Series (In=6300A) Drawout Type (3-Pole) Overall Dimensions (Unit: mm)

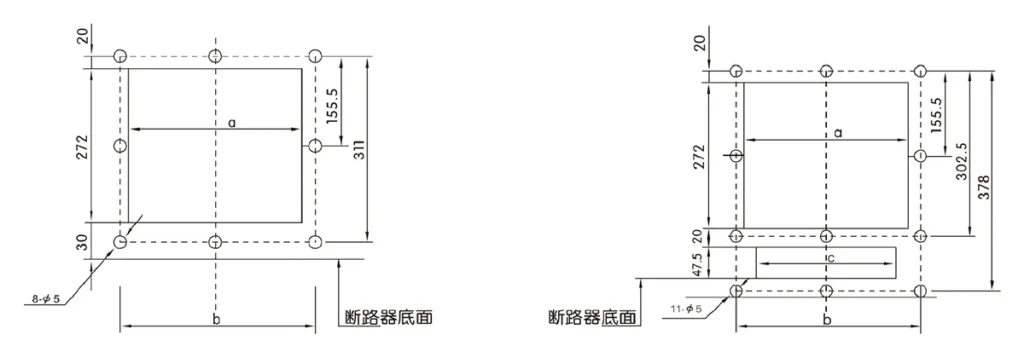

CQW2 Series Enclosure Door Frame Outline and Irnstallation Dimensions (Unit: mm)

Número de modelo a b c
CQW2-2000 304 345 263
CQW2-3200, 4000/3P 366 405 325
CQW2-4000/4P 304 345 263
CQW2-6300 366 405 325

¿Por qué elegir CHAC?

Con más de 30 años de experiencia en fabricación, más de 1100 empleados, más de 100 millones de postes
Con una capacidad anual y un proceso de producción automatizado 90%, CHAC ofrece una capacidad de producción estable y un estricto
control de calidad para clientes OEM/ODM globales. Nuestro sistema de fabricación interno respalda a largo plazo
Cooperación para marcas eléctricas, importadores y distribuidores.


30+

AÑOS DE EXPERIENCIA

Especializado en fabricación eléctrica de bajo voltaje


1100+

EMPLEADOS

Equipo profesional garantiza calidad y entrega estables


100M+

CAPACIDAD ANUAL DE LOS POLOS

Capacidad de producción a gran escala para satisfacer la demanda mundial


90%

PRODUCCIÓN AUTOMATIZADA

Automatización avanzada para alta eficiencia y consistencia

Línea de ensamblaje automatizada

Línea de ensamblaje automatizada

Laboratorio de pruebas

Laboratorio de pruebas

Inyección y Estampado

Inyección y Estampado

Inspección de calidad

Inspección de calidad

Certificación IEC
Certificación CE
Certificación CB
Certificación RoHS
Certificación ISO 14001

Un estricto sistema de control de calidad garantiza que cada producto cumpla con los estándares mundiales.

¿Qué podemos personalizar?

Flexible customization services are available for enclosure dimensions, component configuration,
branding and project requirements.

Diseño de cerramiento

Recinto
Diseño

Tamaños, estructuras y detalles de instalación de recintos personalizados.

Diseño de cerramiento
Configuración interna

Interno
Configuración

Opciones flexibles de diseño interno y disposición de componentes.

Configuración interna
Marca y Logotipo

Marca e
Logo

Logotipos de marca propia, placas de identificación e identificación de marca.

Marca y Logotipo
Diseño de empaque

Empaquetado
Diseño

Soluciones de embalaje, cajas personalizadas, etiquetas y manuales.

Diseño de empaque
Configuración eléctrica

Eléctrico
Configuración

Instalación eléctrica adaptada a los requisitos de la aplicación.

Configuración eléctrica
Soporte de Certificación

Certificación
Apoyo

Soporte para estándares del mercado objetivo y requisitos de cumplimiento.

Soporte de Certificación

Descargar

PDF

Interruptor Automático Serie CQW2

Descripción general completa de componentes eléctricos de bajo voltaje y referencia para la selección de productos.

Descargar PDF

Arriba

¿Necesita documentos técnicos?

Contáctenos para obtener hojas de datos, certificados, planos, orientación de selección o soporte para proyectos OEM/ODM.

Contáctanos

Preguntas frecuentes

¿Admite la personalización de productos según nuestros requisitos de diseño?

Absolutamente. Nos especializamos en cooperación OEM y ODM en el campo de la electricidad de bajo voltaje y hemos brindado servicios personalizados a muchas empresas de renombre internacional. Ofrecemos soporte de proceso completo, que incluye diseño de I+D, ajustes de parámetros y selección de materiales especiales, asegurando que el producto cumpla completamente con sus requisitos.

P2: ¿Cuál es tu capacidad de producción y Cantidad Mínima de Pedido (MOQ)?

A2: Operamos una base de producción altamente automatizada con una producción anual de más de 100 millones de polos para interruptores automáticos en miniatura. Nuestra política de MOQ es flexible. Podemos ofrecer pedidos de prueba competitivos para lotes pequeños y planes de garantía de capacidad de producción dedicada.

P3: ¿Qué garantías hay sobre la calidad del producto y las certificaciones?

Nuestros productos principales cuentan con las certificaciones CCC, CE, CB y más, y se venden en más de 30 países y regiones en todo el mundo. La empresa ha establecido un Centro de Operaciones de Calidad dedicado que trabaja con los departamentos de negocios y producción para implementar un control de calidad de proceso completo, garantizando que los productos cumplan con los estándares internacionales.

P4: ¿Tiene la capacidad para la I+D de productos y para convertir conceptos en realidad?

A4: Contamos con un equipo completo de I+D y talleres digitales, respaldados por una amplia experiencia en personalización al servicio de numerosos clientes internacionales. Desde la propuesta conceptual y el desarrollo de muestras hasta la producción en masa, ofrecemos soporte técnico integral para ayudar a dar vida a tus ideas.
