Disjuntor de Caixa Moldada Eletrónico da Série CQM5E
O CQM5E MCCB provides overload, short circuit and optional ground-fault protection within its published 10–800A range. Specification should follow the system voltage, load, conductor coordination, prospective fault current and applicable rules—not the ampere value alone.
Visão Geral do Produto
CQM5E is a electronic MCCB for AC 380/400/415V and AC 660/690V distribution and protection applications. Its published range covers 10–800A with 3P / 4P options. Selection depends on the complete power-system design, including fault level, coordination, conductor ampacity, enclosure conditions and local rules.
The saved model record lists IEC 60947-1 and IEC 60947-2 as the applicable standard reference. No certification claim is added beyond the model record.
Principais Características
Aplicações Típicas
Typical applications include commercial and industrial distribution or motor circuits that benefit from adjustable electronic protection. These are evaluation contexts rather than universal approvals. Confirm the exact frame, voltage, breaking duty, trip unit, accessories and installation method before specification.
Guia de Candidaturas e Seleção
Use the verified CQM5E values below to create a shortlist, then validate the complete circuit. An MCCB rating does not replace conductor calculations, fault-current analysis, coordination review or local installation requirements.
| Ponto de seleção | CQM5E reference | O que o projeto deve confirmar |
|---|---|---|
| Corrente nominal | 10–800A | Design current, conductor ampacity, installation method, temperature and grouping |
| Tensão | AC 380/400/415V and AC 660/690V | Sistema de alimentação e classificação de equipamento |
| Polacos | 3P / 4P | Live conductors and neutral treatment |
| Trip / protection | electronic trip settings | Load profile, fault response and coordination |
| Capacidade de corte | 20/70/85/100kA Icu and 10/50/65/75kA Ics values by frame and voltage | Prospective short-circuit current at the installation point |
Electronic vs Thermal-Magnetic Trip
Electronic trip units can provide adjustable thresholds and additional monitoring functions. Confirm the actual setting range, auxiliary supply and coordination study for the ordered model.
Protection Settings
Review Electronic MCCBs →
MCCB vs MCB
An MCCB is normally evaluated for higher current, fault duty or accessory flexibility; an MCB may be more suitable for compact final circuits.
Current & Fault Duty
Compare MCCB and MCB →
Icu vs Ics
The saved data for CQM5E lists 20/70/85/100kA Icu and 10/50/65/75kA Ics values by frame and voltage. Match the declared duty to the prospective short-circuit current and continuity objective.
Short-Circuit Study
Review Technical Support →
Pole and Neutral Arrangement
Published pole options are 3P / 4P. Confirm which conductors must be switched, protected and isolated together.
System Arrangement
View MCCB Range →
Guia de Encomenda
- State the exact model: CQM5E.
- Provide frame and rated current within the published range: 10–800A.
- Confirm poles: 3P / 4P.
- Specify the trip unit or protection function: electronic trip settings.
- Provide system voltage, frequency, application, expected fault level, destination market and quantity.
- List required accessories, terminals, documents and any approved OEM/ODM marking or packaging requirements.
Verificações de Instalação e Coordenação
- Use the exact model drawing and instructions; do not infer terminal positions, supply direction or accessory compatibility from another MCCB.
- Verify conductor material and cross-section against the circuit calculation, terminal data, temperature and grouping.
- Confirm Icu/Ics or DC fault duty, upstream/downstream coordination, enclosure conditions, altitude and clearances.
- Installation, isolation, testing and maintenance must be performed by qualified personnel under applicable rules.

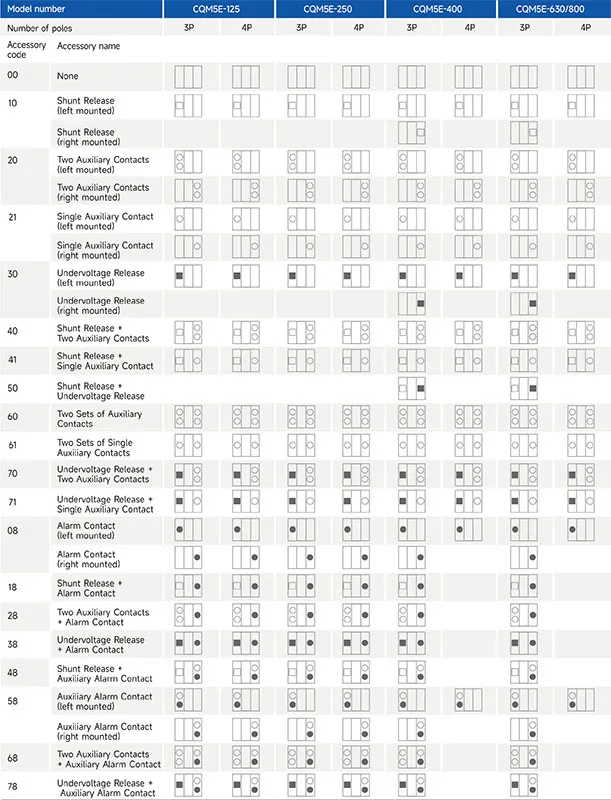

Accessory List

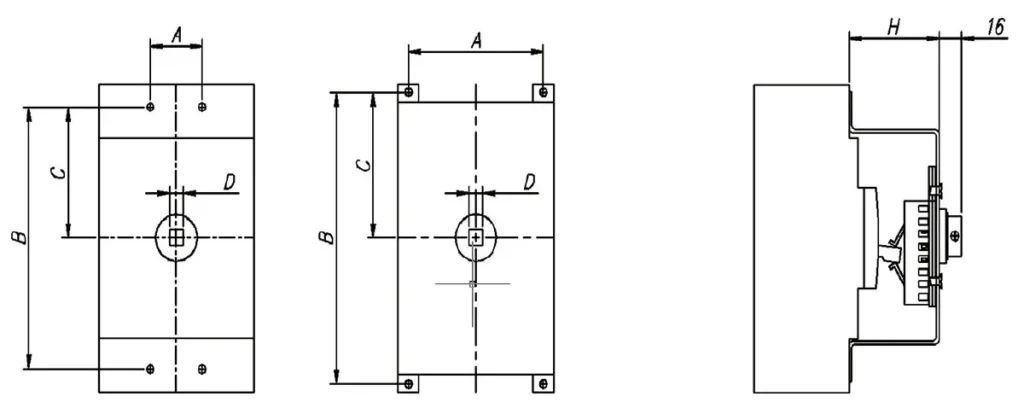

Dimensões (mm)

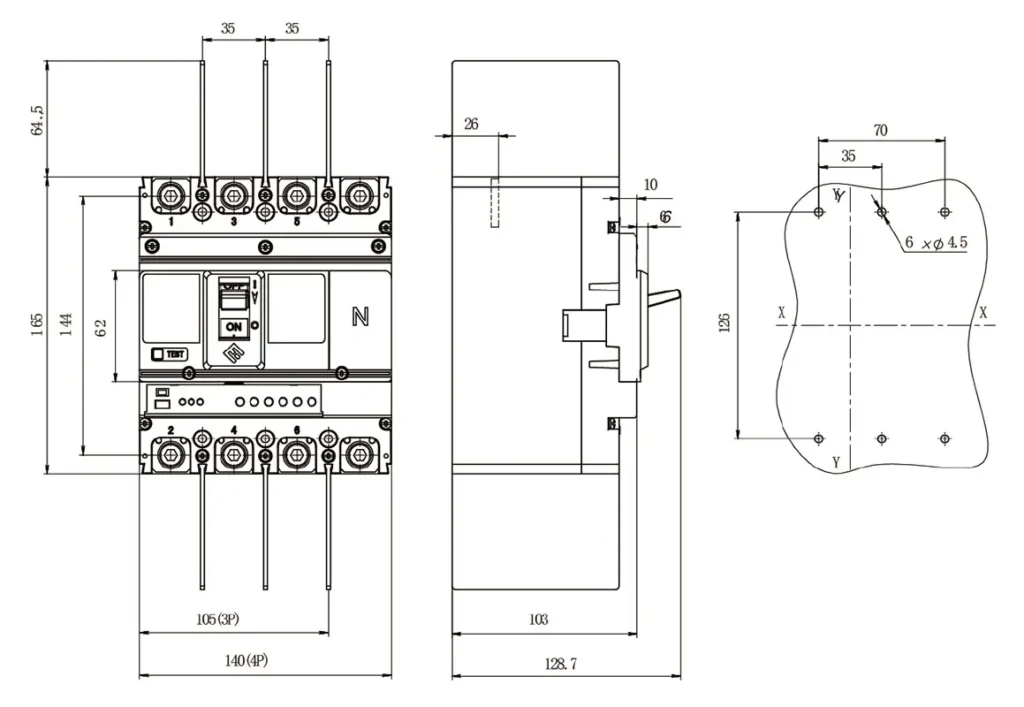

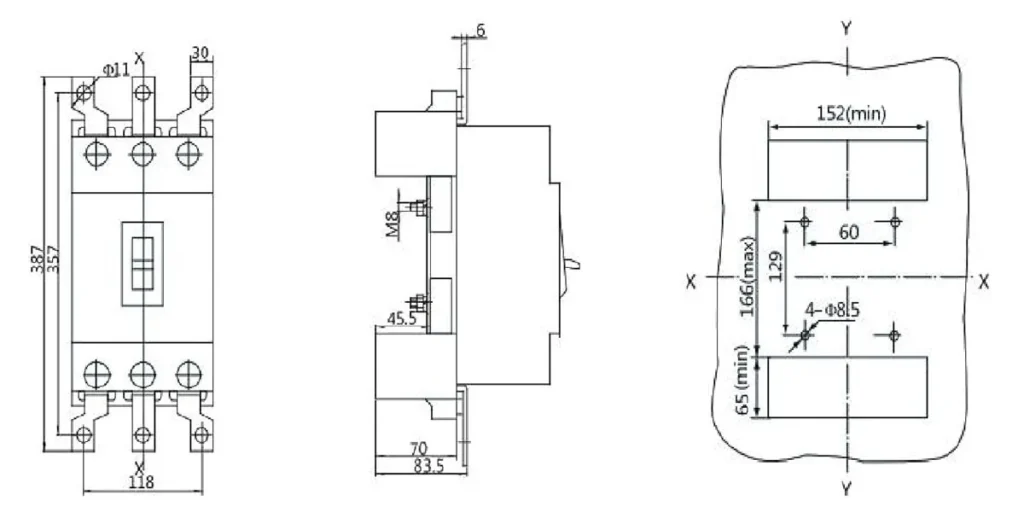

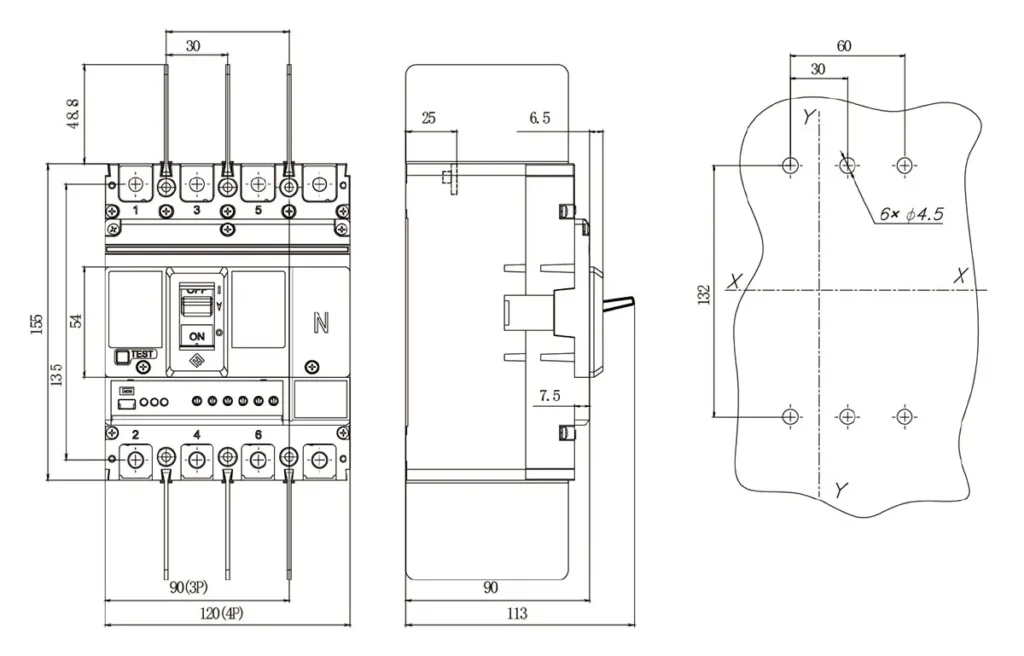

CQM5E-125 (M, H Types)

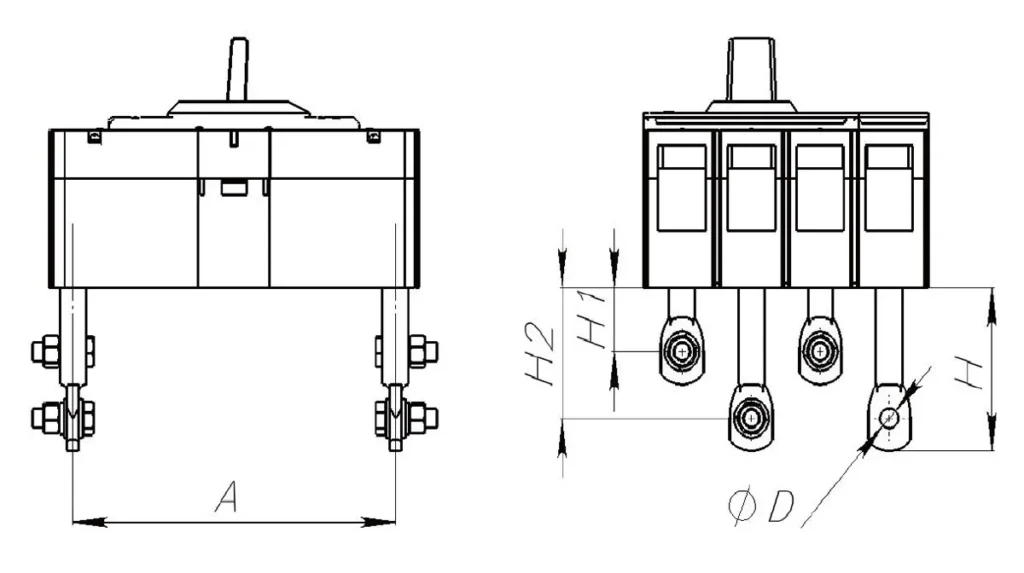

Front Terminal Connection Dimensions
(X-X, Y-Y denote center points for 3P breakers)

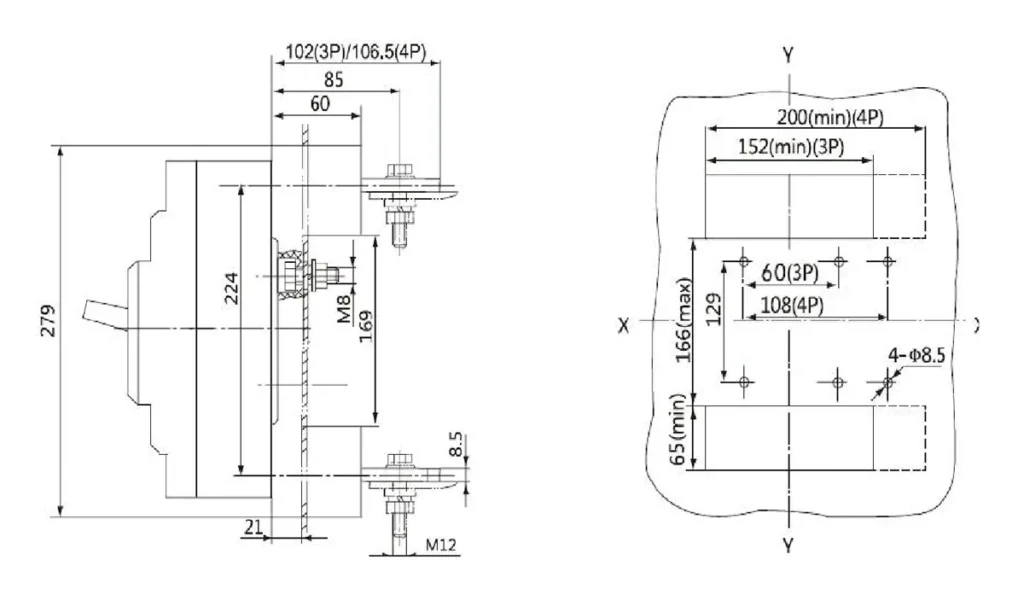

CQM5E-250 (M, H Types)
Front Terminal Connection Dimensions
(X-X,Y-Y denote center points for 3P breakers)

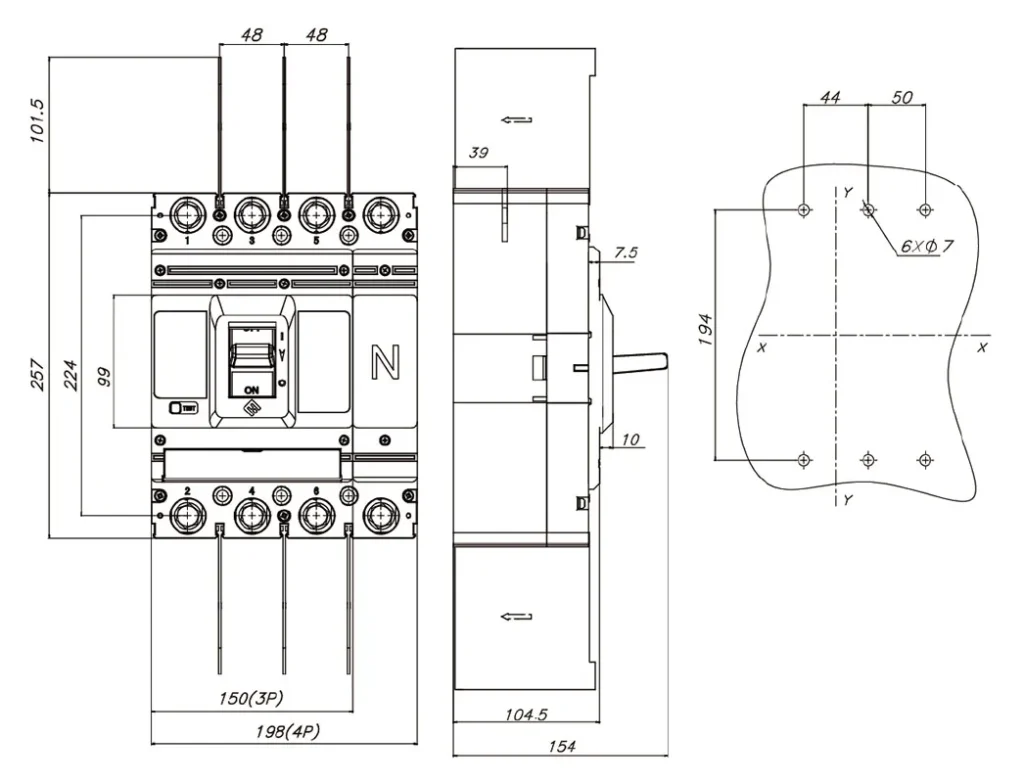

CQM5E-400 (M, H Types)

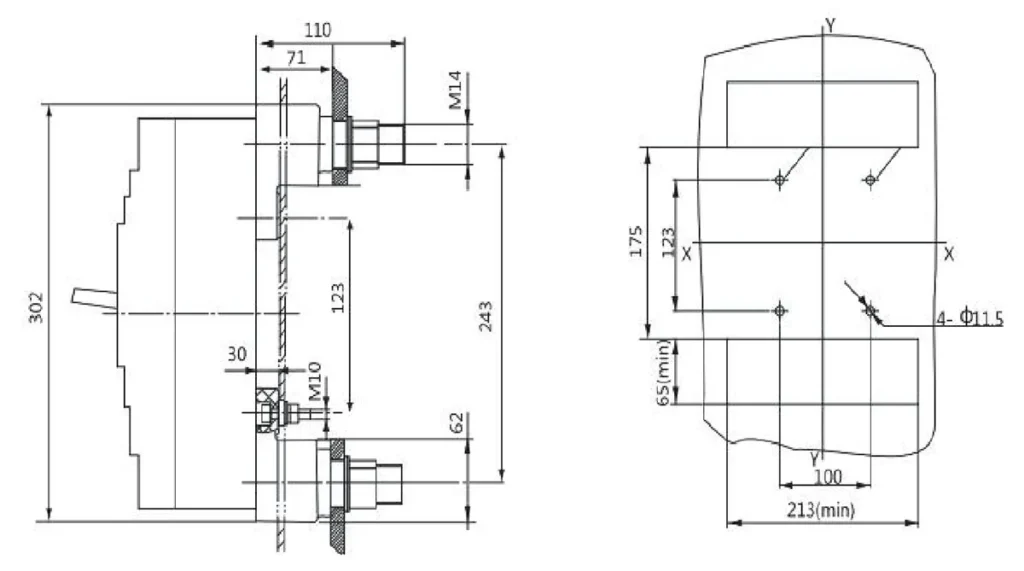

Front Terminal Connection Dimensions
(X-X, Y-Y denote center points for 3P breakers)

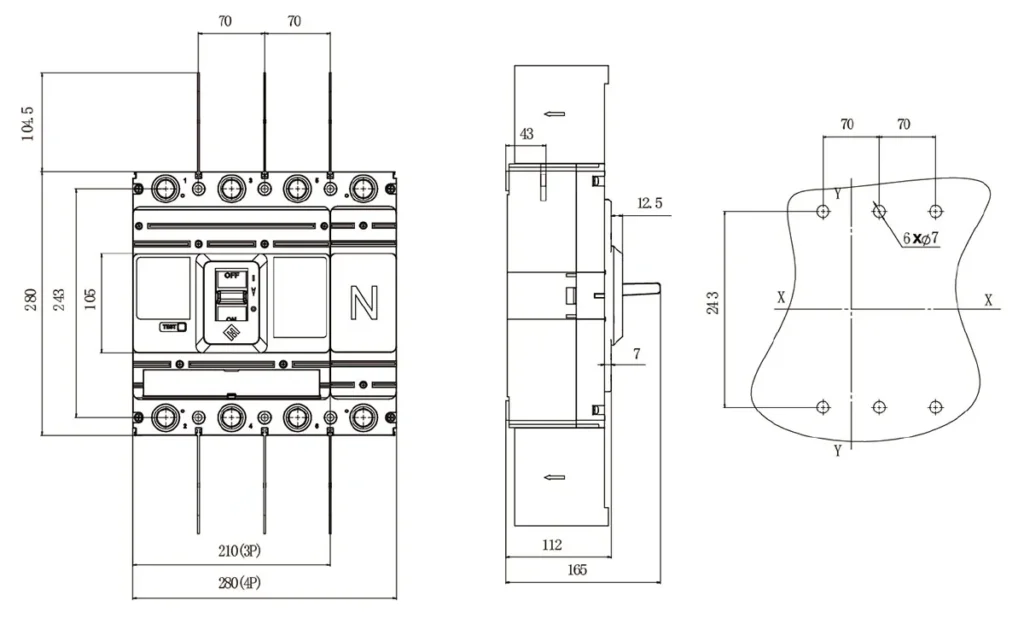

CQM5E-630 (M, H Types)、CQM5E-800 (M, H Types)
Front Terminal Connection Dimensions
(X-X, Y-Y denote center points for 3P breakers)
Designação do tipo
| Code Position | Code Symbol | Meaning & Explanation |
| ① | CQ | Enterprise Code: Zhejiang Chuangqi Electric Co., LTD. |
| ② | M | Disjuntor de caixa moldada |
| ③ | 5 | Design Serial Number |
| ④ | E | Special Protection Function Residual Current Protection (Options: L=RC Protection) |
| ⑤ | 125 | Rated Frame Current (A): Options: 125, 250, 400, 630, 800 |
| ⑥ | M | Short-Circuit Breaking Capacity: • M: Higher Fault Capacity • H: High Fault Capacity |
| ⑦ | □ | Operation Mechanism [blank]: Manual | Z: Rotary Handle | P: Motorized |
| ⑧ | □ | Intelligence Function • [blank]: Basic Protection • G: Ground Fault Protection • T: Communication Capable • GT: Ground+Communication |
| ⑨ | 4 | Number of Poles:• 3 – Three Poles • 4 – Four Poles |
| ⑩ | 300 | Trip Unit & Accessories Code:• 3 – Electronic Trip (Compound Trip) • 00 – No Accessories (Refer to accessory table for specific codes) |
| ⑪ | □ | □: Application Profile [blank]: Distribution | 2: Motor Protection |
| ⑫ | B | N-Pole Type (For 4P products only): • Type A: N-pole is always connected, without overcurrent release. • Type B: N-pole breaks with other poles, without overcurrent release. • Type C: N-pole breaks with other poles, with overcurrent release. • Type D: N-pole is always connected, with overcurrent release. |
| ⑬ | □ | Special Function I: Overload Alarm (non-trip) |
| ⑭ | □ | Rated Current (A) Options: 32 | 63 | 125 | 250 | 400 | 630 | 800 |
| ⑮ | □ | Terminal & Connection Type: • (No Code) – Front Terminal Connection • B – Rear Terminal Connection • C – Plug-in Type |
Especificações Técnicas
| Número do modelo | CQM5E-125 | CQM5E-250 | ||||||
| Rated current In(A), 40℃ | 32 | 63 | 125 | 250 | ||||
| Setting Current Ir (A), 40℃ | 16/20/25/32 | 32/40/50/63 | 63/80/100/125 | 100, 125, 140, 160, 180, 200,225, 250 | ||||
| Rated operating voltage Ue(V) | AC380/400/415V | AC380/400/415V | ||||||
| AC660/690V | AC660/690V | |||||||
| Rated insulation voltage Ui (V) | 1000 | 1000 | ||||||
| Rated impulse withstand voltage Uimp(KV) | 8 | 8 | ||||||
| Vida mecânica | 20000 | 20000 | ||||||
| Electrical life(AC415V) | 8000 | 8000 | ||||||
| Trip mechanisms and protection types | Electronic | Electronic | ||||||
| Selectivity category | A | A | ||||||
| Número de polos | 3P | 4P | 3P | 4P | ||||
| Breaking capacity designation | M | H | / | M | H | / | ||
| Rated ultimate short-circuit breaking capacity (Icu) (kA) | AC380/400/415V | 70 | 85 | 70 | 70 | 85 | 70 | |
| AC660/690V | 20 | / | 20 | 20 | / | 20 | ||
| Rated service short-circuit breaking capacity (Ics) (kA) | AC380/400/415V | 50 | 65 | 50 | 50 | 65 | 50 | |
| AC660/690V | 10 | / | 10 | 10 | / | 10 | ||
| Phase spacing (mm) | 30 | 35 | ||||||
| Arc distance (mm) | ≤50 | ≤100 | ||||||
| Operating ambient temp | -35 ℃ to +70℃ | -35 ℃ to +70℃ | ||||||
| Rated short-time withstand current (Icw) | 1kA/1s | 2.5kA/1s | ||||||
| Accessory | Auxiliary contacts | ● | ● | ● | ● | ● | ● | |
| Alarm contacts | ● | ● | ● | ● | ● | ● | ||
| Shunt Release | ● | ● | ● | ● | ● | ● | ||
| Under-Voltage Release | ● | ● | ● | ● | ● | ● | ||
| Motor Operating Mechanism | ● | ● | ● | ● | ● | ● | ||
| Manual Handle Assembly | ● | ● | ● | ● | ● | ● | ||
| Fixed Type Rear-Mounting Kit | ● | ● | ● | ● | ● | ● | ||
| Plug-in Type, Front-of-Panel | ● | ● | ● | ● | ● | ● | ||
| Plug-in Type, Rear-of-Panel | ● | ● | ● | ● | ● | ● | ||
| Mechanical Interlock | ● | ● | ● | ● | ● | ● | ||
| Short-circuit protection types | Short-time delay protection (S) | Isd= (2-12) Ir | Isd= (2-12) Ir | |||||
| Instantaneous protection (I) | Ii= (4-14) Ir | Ii= (4-14) Ir | ||||||
| Overall dimensions (mm) (L-W-H) |
 |
3 P | 155-90-90 | 165-105-103 | ||||
| 4 P | 155-120-90 | 165-140-103 | ||||||
Note: ● for optional accessories;”-” for no optional accessories.
| Número do modelo | CQM5E-400 | CQM5E-630 | ||||||
| Rated current In(A), 40℃ | 400 | 630 | ||||||
| Setting Current Ir (A), 40℃ | 200, 225, 250, 280, 315, 350, 400 | 400, 420, 440, 460, 480, 500, 530, 560, 600, 630 | ||||||
| Rated operating voltage Ue(V) | AC380/400/415V | AC380/400/415V | ||||||
| AC660/690V | AC660/690V | |||||||
| Rated insulation voltage Ui (V) | 1000 | 1000 | ||||||
| Tensão nominal de impulso suportada Uimp (kV) | 8 | 8 | ||||||
| Vida mecânica | 10000 | 10000 | ||||||
| Electrical life(AC415V) | 7000 | 7000 | ||||||
| Trip mechanisms and protection types | Electronic | Electronic | ||||||
| Selectivity category | B | B | ||||||
| Número de polos | 3P | 4P | 3P | 4P | ||||
| Breaking capacity designation | M | H | / | M | H | / | ||
| Rated ultimate short-circuit breaking capacity (Icu) (kA) | AC380/400/415V | 70 | 100 | 70 | 70 | 100 | 70 | |
| AC660/690V | 20 | / | 20 | 20 | / | 20 | ||
| Rated service short-circuit breaking capacity (Ics) (kA) | AC380/400/415V | 50 | 75 | 50 | 50 | 75 | 50 | |
| AC660/690V | 10 | / | 10 | 10 | / | 10 | ||
| Phase spacing (mm) | 48 | 70 | ||||||
| Arc distance (mm) | ≤100 | ≤100 | ||||||
| Operating ambient temp | -35℃ to +70℃ | -35℃ to +70℃ | ||||||
| Rated short-time withstand current (Icw) | 5kA/1s | 10kA/1s | ||||||
| Accessory | Auxiliary contacts | ● | ● | ● | ● | ● | ● | |
| Alarm contacts | ● | ● | ● | ● | ● | ● | ||
| Shunt Release | ● | ● | ● | ● | ● | ● | ||
| Under-Voltage Release | ● | ● | ● | ● | ● | ● | ||
| Motor Operating Mechanism | ● | ● | ● | ● | ● | ● | ||
| Manual Handle Assembly | ● | ● | ● | ● | ● | ● | ||
| Fixed Type Rear-Mounting Kit | ● | ● | ● | ● | ● | ● | ||
| Plug-in Type, Front-of-Panel | ● | ● | ● | ● | ● | ● | ||
| Plug-in Type, Rear-of-Panel | ● | ● | ● | ● | ● | ● | ||
| Mechanical Interlock | ● | ● | ● | ● | ● | ● | ||
| Short-circuit protection types | Short-time delay protection (S) | Isd= (2-12) Ir | Isd= (2-12) Ir | |||||
| Instantaneous protection (I) | Ii= (4-14) Ir | Ii= (4-14) Ir | ||||||
| Overall dimensions (mm) (L-W-H) |
|
3 P | 257-150-140.5 | 280-210-112 | ||||
| 4 P | 257-198-140.5 | 280-280-112 | ||||||
Note: ● for optional accessories;”-” for no optional accessories.
| Número do modelo | CQM5E-800 | ||||
| Rated current In(A), 40℃ | 800 | ||||
| Setting Current Ir (A), 40℃ | 630,640,660,680,700,720,740,760,780,800 | ||||
| Rated operating voltage Ue(V) | AC380/400/415V | ||||
| AC660/690V | |||||
| Rated insulation voltage Ui (V) | 1000 | ||||
| Tensão nominal de impulso suportada Uimp (kV) | 8 | ||||
| Vida mecânica | 10000 | ||||
| Electrical life(AC415V) | 7000 | ||||
| Trip mechanisms and protection types | Electronic | ||||
| Selectivity category | B | ||||
| Número de polos | 3P | 4P | |||
| Breaking capacity designation | M | H | / | ||
| Rated ultimate short-circuit breaking capacity (Icu) (kA) | AC380/400/415V | 70 | 100 | 70 | |
| AC660/690V | 20 | / | 20 | ||
| Rated service short-circuit breaking capacity (Ics) (kA) | AC380/400/415V | 50 | 75 | 50 | |
| AC660/690V | 10 | / | 10 | ||
| Phase spacing (mm) | 70 | ||||
| Arc distance (mm) | ≤100 | ||||
| Operating ambient temp | -35℃ to +70℃ | ||||
| Rated short-time withstand current (Icw) | 10kA/1s | ||||
| Accessory | Auxiliary contacts | ● | ● | ● | |
| Alarm contacts | ● | ● | ● | ||
| Shunt Release | ● | ● | ● | ||
| Under-Voltage Release | ● | ● | ● | ||
| Motor Operating Mechanism | ● | ● | ● | ||
| Manual Handle Assembly | ● | ● | ● | ||
| Fixed Type Rear-Mounting Kit | ● | ● | ● | ||
| Plug-in Type, Front-of-Panel | ● | ● | ● | ||
| Plug-in Type, Rear-of-Panel | ● | ● | ● | ||
| Mechanical Interlock | ● | ● | ● | ||
| Short-circuit protection types | Short-time delay protection (S) | Isd= (2-12) Ir | |||
| Instantaneous protection (I) | Ii= (4-14) Ir | ||||
| Overall dimensions (mm) (L-W-H) |
|
3 P | 280-210-112 | ||
| 4 P | 280-280-112 | ||||
Note: ● for optional accessories;”-” for no optional accessories.
Internal Accessories
1.1 AX Auxiliary Contact
Function
Remote status indicator for breaker ON/OFF or trip-free operation, integrated into the auxiliary circuit.
Indicating Circuit Breaker ON/OFF Status
| When the circuit breaker is in the “OFF” and “TRIPPED”position | Dual auxiliary contact |  |
| Single auxiliary contact. |  |
|
| When the circuit breaker is in the “ON” position |
Dual auxiliary contact |  |
| Single auxiliary contact |  |
Electrical Characteristics
| Classification | Frame Rating | Conventional Thermal Current (A) | Rated Operational Current (A) | |
| Auxiliary Contact | 63,100,125,250 | 3 | AC400V | DC220V |
| 400,630,800 | 3 | 0.4 | 0.15 | |
1.2 AL Alarm Contact
Wiring Diagram
Function
Primarily used to provide a signal when a fault such as overloadd,short circuit,or undervoltage occurs on the circuit breaker’s loaad side,orwhenitentersafree-trip state.
Reasons for the alarm contact to issue a fault indication signal:
Overload or Short Circuit Trip
Undervoltage Trip
Residual Current Operation Trip
Manual Free-Trip
Indicating Circuit Breaker ON/OFF Status
| When the circuit breaker is in the “OFF” and “ON” position |  |
| When the circuit breaker is in the “TRIPPED” position. |  |
Electrical Characteristics
| Classification | Frame Rating | Conventional Thermal Current (A) | Rated Operational Current (A) | |
| Alarm Contact | 63,100,125,250 | 3 | AC400V | DC220V |
| 400,630,800 | 3 | 0.4 | 0.15 | |
1.3 SHT Shunt Release
Wiring Diagram
Function
The shunt release is activated by an electrical signal, enabling remote and automatic control of the circuit breaker. The shunt release shall reliably cause the circuit breaker to operate when the supply voltage is any value between 70% and 110% of the rated control supply voltage.
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | DC24V | DC220V | AC230V | AC380V | ||
| 1 | CQM5-63/100 | 5.7 | 0.62 | 0.64 | 0.38 | 136.8 | 136.4 | 147.2 | 152 |
| 2 | CQM5-125 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 3 | CQM5-250 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 4 | CQM5-400/630 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| 5 | CQM5-800 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | DC24V | DC220V | AC230V | AC380V | ||
| 1 | CQM5L-125 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 2 | CQM5L-250 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 3 | CQM5L-400 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| 4 | CQM5L-630 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | DC24V | DC220V | AC230V | AC380V | ||
| 1 | CQM5E-125 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 2 | CQM5E-250 | 4 | 0.24 | 0.25 | 0.43 | 97.6 | 52.6 | 57.5 | 173.9 |
| 3 | CQM5E-400 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| 4 | CQM5E-630 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
| 5 | CQM5E-800 | 6.8 | 0.48 | 0.76 | 0.28 | 164.5 | 105 | 176.3 | 112 |
1.4UVR Under-Voltage Release
Wiring Diagram
Function
Protects equipment by tripping breakers during voltage dips.
Operational Thresholds
Reliable closing: ≥85% rated voltage
Mandatory tripping: 70%-35% rated voltage
Closing prevention:<35% rated voltage
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||
| Pick-up Power (W) | Hold-in Power (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | AC230V | AC380V | ||
| 1 | CQM5E-125 | 0.2 | 0.3 | / | / | 0.5 | 0.5 |
| 2 | CQM5E-250 | 0.006 | 0.01 | / | / | 0.3 | 0.3 |
| 3 | CQM5E-400 | 0.006 | 0.01 | / | / | 0.8 | 0.9 |
| 4 | CQM5E-630 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| 5 | CQM5E-800 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||
| Pick-up Power (W) | Hold-in Power (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | AC230V | AC380V | ||
| 1 | CQM5L-125 | 0.006 | 0.01 | / | / | 0.3 | 0.3 |
| 2 | CQM5L-250 | 0.006 | 0.01 | / | / | 0.3 | 0.3 |
| 3 | CQM5L-400 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| 4 | CQM5L-630 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | ||||
| Pick-up Power (W) | Hold-in Power (W) | ||||||
| DC24V | DC220V | AC230V | AC380V | AC230V | AC380V | ||
| 1 | CQM5E-125 | 0.006 | 0.01 | / | / | 0.3 | 0.3 |
| 2 | CQM5E-250 | 0.006 | 0.01 | / | / | 0.3 | 0.3 |
| 3 | CQM5E-400 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| 4 | CQM5E-630 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
| 5 | CQM5E-800 | 0.8 | 0.5 | 190 | 223 | 0.8 | 0.9 |
External Accessories
2.1 Motor Operating Mechanism

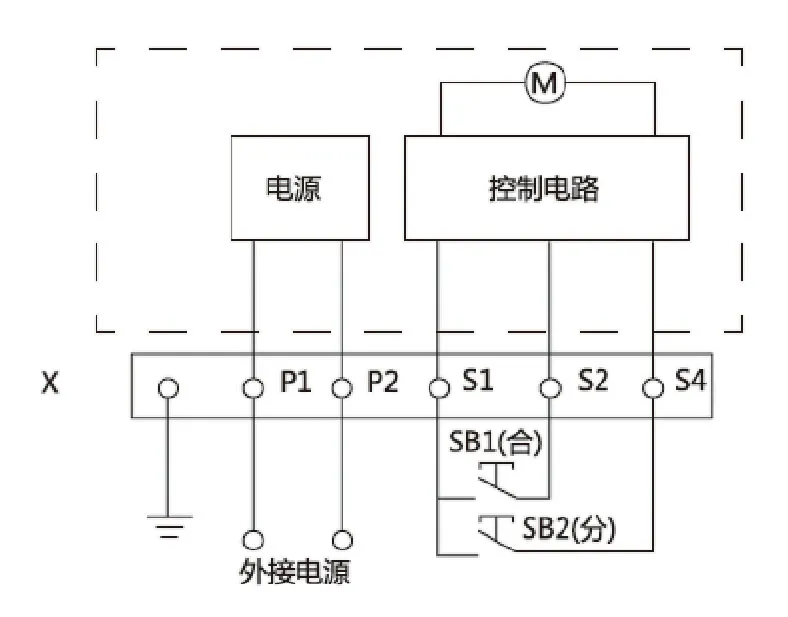

Schematic Diagram
Function
Suitable for remotely closing, tripping (resetting) the circuit breaker,and for automated applications.
Position indication for O (OFF), I (ON), and TRIPPED.
Enables free trip operation of the circuit breaker.
Allows manual or automatic closing and opening of the circuit breaker.
Automatic closing or tripping can be achieved using momentary pulse signals or maintained signal control.
Reliable closing and tripping of the circuit breaker is ensured only when the control voltage is **≥85% and ≤ 110%** of the rated control
voltage (Un).

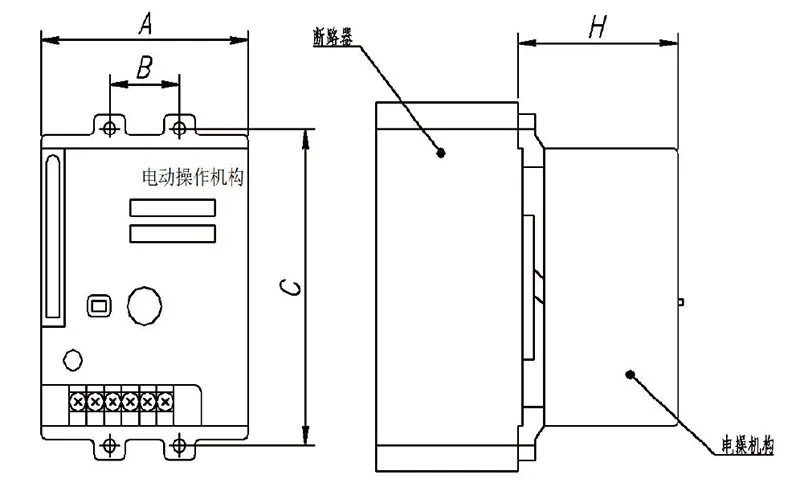

Dimensões (mm)
Schematic & Symbol Legend:
SB1, SB2: Operation buttons(To be provided by customer)
X: Terminal block
P1、P2:External power supply
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | Operating Mechanism Height |
|||
| DC24V | AC/DC110V | AC/DC220V | AC380V | ||||
| 1 | CQM5-63/100 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 94 |
| 2 | CQM5-125 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 97 |
| 3 | CQM5-250 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 101 |
| 4 | CQM5-400/630 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 149 |
| 5 | CQM5-800 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 152 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | Operating Mechanism Height |
|||
| DC24V | AC/DC110V | AC/DC220V | AC380V | ||||
| 1 | CQM5L-125 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 97 |
| 2 | CQM5L-250 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 101 |
| 3 | CQM5L-400/630 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 149 |
| 4 | CQM5L-800 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 152 |
| Code | Número do modelo | Instantaneous Tripping Current (A) | Power Consumption (W) | Operating Mechanism Height |
|||
| DC24V | AC/DC110V | AC/DC220V | AC380V | ||||
| 1 | CQM5E-125 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 97 |
| 2 | CQM5E-250 | 80 | ≤180 | ≤180 | ≤350 | 20000 | 101 |
| 3 | CQM5E-400 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 149 |
| 4 | CQM5E-630 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 152 |
| 5 | CQM5E-800 | 160 | ≤250 | ≤350 | ≤600 | 10000 | 152 |
Note: General tolerance grade shall be in accordance withGB/T 1804-c.
2.2 Manual Handle Assembly
Function
Employs a unique design and transmission mechanism to perform circuit breaker Closing, Tripping (Reset), and Opening operations via handle rotation.
Features isolated position indication.
Clear position indications: O (OFF), I (ON), and TRIPPED
The breaker in the OFF position accepts 1-3 padlocks (Φ5-8mm), preverhting inadvertent closure and locking compartment access.
In the ON (closed) position, handle rotation mechanically prevents compartment door opening.(For emergency door access, use the handle’smanual override release).
Standard shaft length: 150mm.
Dimensões (mm)
| Code | Número do modelo | A | B | C | D | H |
| 1 | CQM5-63/100 | 25 | 111 | 55 | 8 | 40 |
| 2 | CQM5-125 | 30 | 132 | 66 | 8 | 44 |
| 3 | CQM5-250 | 35 | 126 | 63 | 8 | 44 |
| 4 | CQM5-400/630 | 138 | 195 | 97.5 | 10 | 70 |
| 5 | CQM5-800 | 198 | 243 | 121.5 | 10 | 76 |
| Code | Número do modelo | A | B | C | D | H |
| 1 | CQM5L-125 | 30 | 132 | 66 | 8 | 44 |
| 2 | CQM5L-250 | 35 | 126 | 63 | 8 | 44 |
| 3 | CQM5L-400 | 138 | 195 | 97.5 | 10 | 70 |
| 4 | CQM5L-630 | 198 | 243 | 121.5 | 10 | 76 |
| Code | Número do modelo | A | B | C | D | H |
| 1 | CQM5E-125 | 30 | 132 | 66 | 8 | 44 |
| 2 | CQM5E-250 | 35 | 126 | 63 | 8 | 44 |
| 3 | CQM5E-400 | 138 | 195 | 97.5 | 10 | 70 |
| 4 | CQM5E-630 | 198 | 243 | 121.5 | 10 | 76 |
| 5 | CQM5E-800 | 198 | 243 | 121.5 | 10 | 76 |
Note: General tolerance grade shall be in accordance with GB/T1804-c.

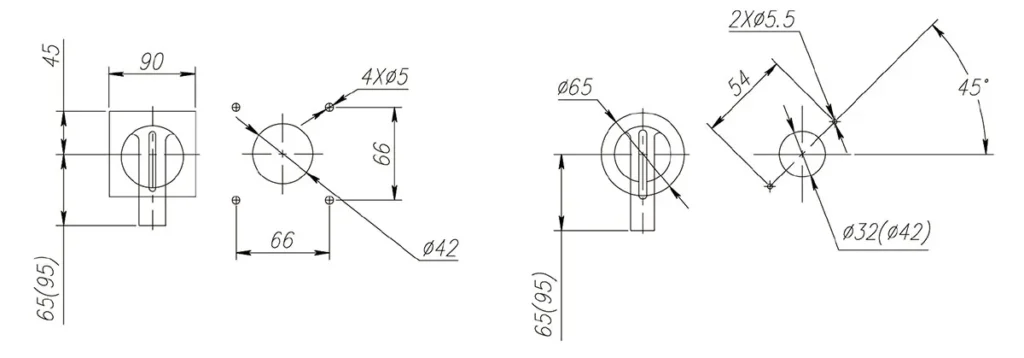

The figure below shows the rotating handle and installation dimernsions of the manual operating mechanism.
Handle Length Dimensions in the Figure:
For models CQM5-125/250: 65 mm or 95 mm (optional), with 65 mm as the default.
For models CQM5-400/630/800: 95 mm.
For models CQM5E-125/250:65 mm or 95 mm (optional), with 65mm as the default.
For models CQM5E-400/630/800:95 mm.
For models CQM5L-125/250: 65 mm or 95 mm (optional), with 65 mm as the default.
For models CQM5L-400/630/800: 95 mm.
2.3 Fixed Type Rear-Mounting Kit

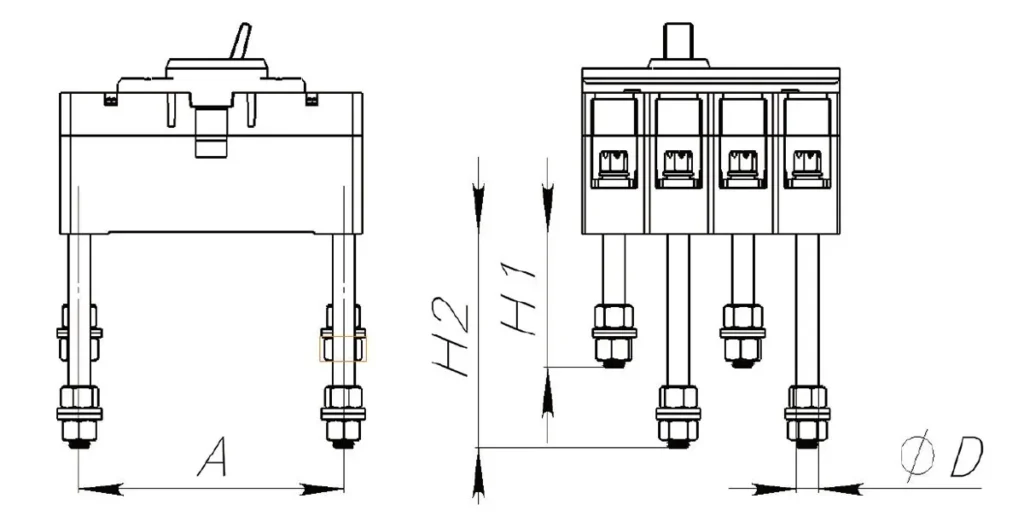

Dimensões (mm)
CQM5 / CQM5E / CQM5L – 125/250
CQM5 / CQM5E / CQM5L – 400/630/800
| Code | Número do modelo | A | H | H1 | H2 | D |
| 1 | CQM5-63/100 | 111 | / | 60.5 | 102.5 | M8 |
| 2 | CQM5-125 | 135 | / | 58 | 98 | M8 |
| 3 | CQM5-250 | 144 | / | 65 | 104 | M8 |
| 4 | CQM5-400/630 | 224 | 102 | 42 | 82 | M12 |
| 5 | CQM5-800 | 243 | 118 | 33 | 98 | M16 |
| Code | Número do modelo | A | H | H1 | H2 | D |
| 1 | CQM5L-125 | 135 | / | 58 | 98 | M8 |
| 2 | CQM5L-250 | 144 | / | 65 | 104 | M8 |
| 3 | CQM5L-400 | 224 | 102 | 42 | 82 | M12 |
| 4 | CQM5L-630 | 243 | 118 | 33 | 98 | M16 |
| Code | Número do modelo | A | H | H1 | H2 | D |
| 1 | CQM5E-125 | 135 | / | 58 | 98 | M8 |
| 2 | CQM5E-250 | 144 | / | 65 | 104 | M8 |
| 3 | CQM5E-400 | 224 | 102 | 42 | 82 | M12 |
| 4 | CQM5E-630 | 243 | 118 | 33 | 98 | M16 |
| 5 | CQM5E-800 | 243 | 118 | 33 | 98 | M16 |
Note: General tolerance grade shall be in accordance with GB/T 1804-c.
2.4 Plug-in Type, Front-of-Panel

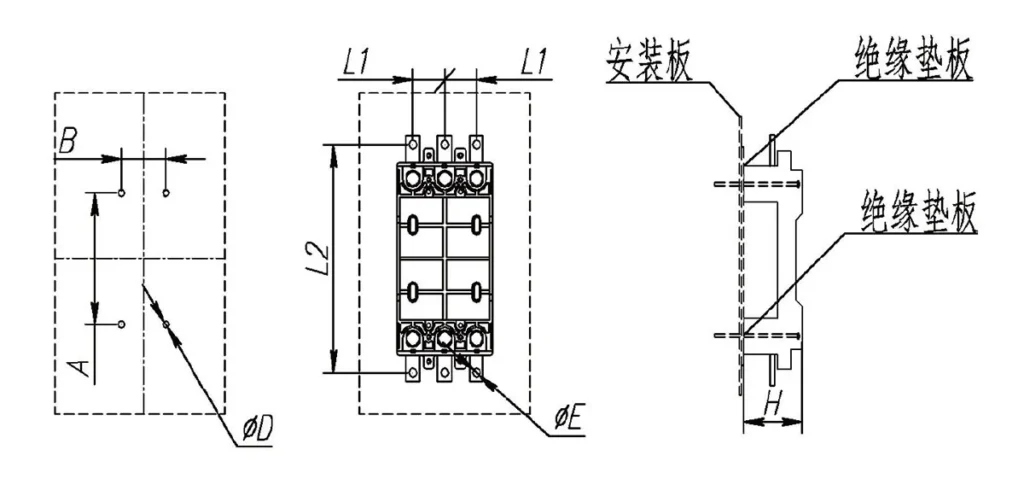

Dimensões (mm)
CQM5 / CQM5E/CQM5L-125/250
CQM5 / CQM5E/CQM5L-400
| Code | Número do modelo | A | B | L1 | L2 | D | E | H |
| 1 | CQM5-125 | 112 | 30 | 30 | 200 | 5.5 | 6.5 | 56 |
| 2 | CQM5-250 | 150 | 35 | 35 | 223 | 5.5 | 8.5 | 73 |
| Code | Número do modelo | A | B | L1 | L2 | D | E | H |
| 1 | CQM5E-125 | 112 | 30 | 30 | 200 | 5.5 | 6.5 | 56 |
| 2 | CQM5E-250 | 150 | 35 | 35 | 223 | 5.5 | 8.5 | 73 |
| Code | Número do modelo | A | B | L1 | L2 | D | E | H |
| 1 | CQM5L-125 | 112 | 30 | 30 | 200 | 5.5 | 6.5 | 56 |
| 2 | CQM5L-250 | 150 | 35 | 35 | 223 | 5.5 | 8.5 | 73 |
Note: General tolerance grade shall be in accordance with GB/T 1804-c.
2.5 Plug-in Type, Rear-of-Panel

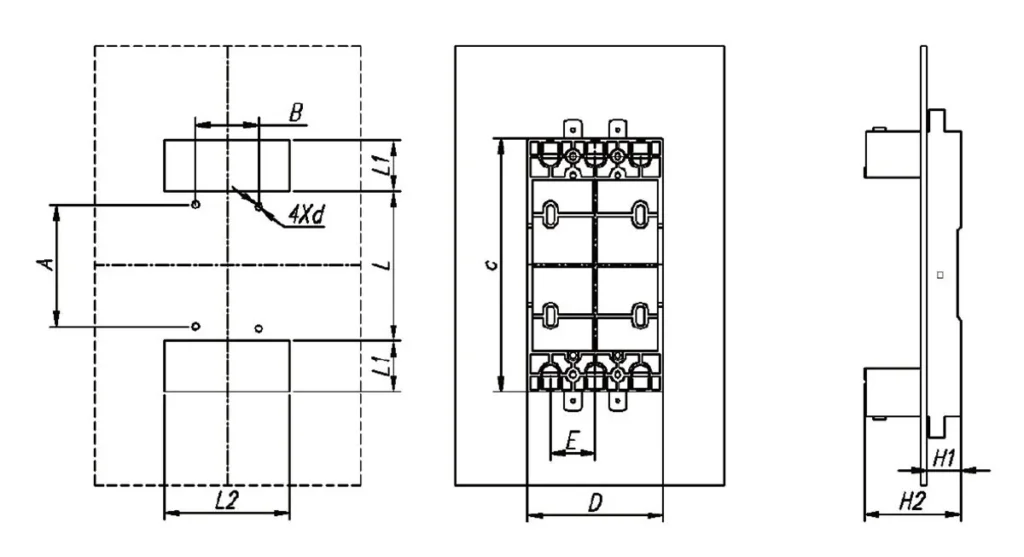

Dimensões (mm)
CQM5 / CQM5E/CQM5L-125/250
CQM5 / CQM5E/CQM5L-400
CQM5 / CQM5E / CQM5L-630/800
| Code | Número do modelo | A | B | L | L1 | L2 | d | C | D | E | H1 | H2 |
| 1 | CQM5-125 | 67 | 60 | 90 | 51 | 94 | 6.5 | 162 | 90 | 30 | 20 | 56 |
| 2 | CQM5-250 | 74 | 70 | 100 | 55 | 110 | 6.5 | 179 | 105 | 35 | 27 | 73 |
| Code | Número do modelo | A | B | L | L1 | L2 | d | C | D | E | H1 | H2 |
| 1 | CQM5E-125 | 67 | 60 | 90 | 51 | 94 | 6.5 | 162 | 90 | 30 | 20 | 56 |
| 2 | CQM5E-250 | 74 | 70 | 100 | 55 | 110 | 6.5 | 179 | 105 | 35 | 27 | 73 |
| Code | Número do modelo | A | B | L | L1 | L2 | d | C | D | E | H1 | H2 |
| 1 | CQM5L-125 | 67 | 60 | 90 | 51 | 94 | 6.5 | 162 | 90 | 30 | 20 | 56 |
| 2 | CQM5L-250 | 74 | 70 | 100 | 55 | 110 | 6.5 | 179 | 105 | 35 | 27 | 73 |
Note: General tolerance grade shall be in accordance with GB/T 1804-c.
2.6 Mechanical Interlock

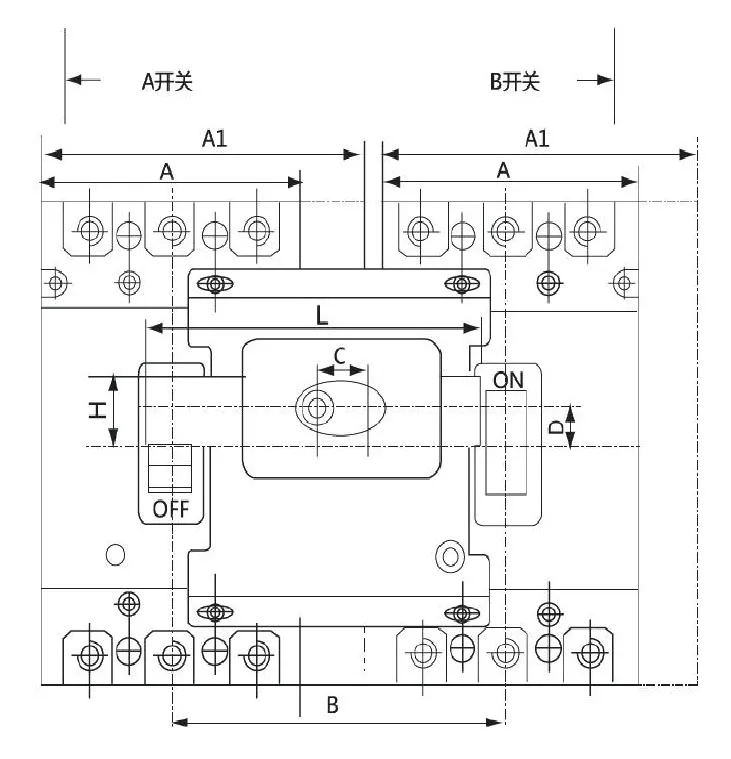

| Parâmetro | CQM5-125 | CQM5-250 | CQM5-400 | CQM5-630/800 |
| A (3P) | 90 | 105 | 150 | 210 |
| B (3P) | 120 | 130 | 180 | 243 |
| C(3P) | 45 | 50 | 57 | 58 |
| D (3P) | 14 | 16.5 | 10 | 20 |
| L (3P) | 134 | 140.5 | 190 | 240 |
| H (3P) | 22 | 22 | 30 | 20 |
| A (4P) | 120 | 140 | 198 | 280 |
| B (4P) | 150 | 170 | 230 | 310 |
| C (4P) | 45 | 50 | 57 | 58 |
| D (4P) | 14 | 16.5 | 10 | 20 |
| L (4P) | 164 | 233 | 240 | 320 |
| H (4P) | 22 | 22 | 30 | 30 |
| Parâmetro | CQM5E-125 | CQM5E-250 | CQM5E-400 | CQM5E-630/800 |
| A (3P) | 90 | 105 | 150 | 210 |
| B (3P) | 120 | 130 | 180 | 243 |
| C(3P) | 45 | 50 | 57 | 58 |
| D (3P) | 14 | 16.5 | 10 | 20 |
| L (3P) | 134 | 140.5 | 190 | 240 |
| H (3P) | 22 | 22 | 30 | 20 |
| A (4P) | 120 | 140 | 198 | 280 |
| B (4P) | 150 | 170 | 230 | 310 |
| C (4P) | 45 | 50 | 57 | 58 |
| D (4P) | 14 | 16.5 | 10 | 20 |
| L (4P) | 164 | 233 | 240 | 320 |
| H (4P) | 22 | 22 | 30 | 30 |
| Parâmetro | CQM5L-125 | CQM5L-250 | CQM5L-400 | CQM5L-630/800 |
| A (3P) | 90 | 105 | 150 | 210 |
| B (3P) | 120 | 130 | 180 | 243 |
| C(3P) | 45 | 50 | 57 | 58 |
| D (3P) | 14 | 16.5 | 10 | 20 |
| L (3P) | 134 | 140.5 | 190 | 240 |
| H (3P) | 22 | 22 | 30 | 20 |
| A (4P) | 120 | 140 | 198 | 280 |
| B (4P) | 150 | 170 | 230 | 310 |
| C (4P) | 45 | 50 | 57 | 58 |
| D (4P) | 14 | 16.5 | 10 | 20 |
| L (4P) | 164 | 233 | 240 | 320 |
| H (4P) | 22 | 22 | 30 | 30 |
Notes: a. Units: mm b. Undefined tolerances comply with GB/T 1804-2000 medium grade (m)
Porquê escolher a CHAC
Com mais de 30 anos de experiência em fabrico, mais de 1100 funcionários, mais de 100 milhões de postes
Com uma capacidade anual e um processo de produção automatizado 90%, a CHAC garante uma capacidade de produção estável e rigorosos
Controlo de qualidade para clientes OEM/ODM globais. O nosso sistema de fabrico interno suporta a longo prazo
cooperação para marcas elétricas, importadores e distribuidores.
30+
ANOS DE EXPERIÊNCIA
Especializado em fabrico de baixa tensão elétrica
1100+
FUNCIONÁRIOS
Equipa profissional garante qualidade e entrega estáveis
100M+
CAPACIDADE ANUAL DE POSTOS
Capacidade de produção em larga escala para satisfazer a procura global
90%
PRODUÇÃO AUTOMATIZADA
Automação avançada para alta eficiência e consistência
Linha de Montagem Automatizada
Laboratório de Ensaios
Injeção e Estampagem
Inspeção de Qualidade
Um rigoroso sistema de controlo de qualidade garante que cada produto cumpre as normas globais.
O que podemos personalizar?
For CQM5E projects, CHAC can review private-label marking, packaging, approved appearance options, published 10–800A electrical configurations and technical-document requirements. Requests outside the published range are subject to engineering evaluation, testing, minimum order quantity and project feasibility.
Recinto
Design
Tamanhos de caixas personalizadas, estruturas e detalhes de instalação.
Interno
Configuração
Layout interno flexível e opções de arranjo de componentes.
Branding &
Logótipo
Logótipos de marca própria, placas de identificação e identificação da marca.
Embalagem
Design
Caixas personalizadas, etiquetas, manuais e soluções de embalagem.
Elétrico
Configuração
Instalação elétrica à medida com base nos requisitos da aplicação.
Certificação
Apoio
Apoio a normas e requisitos de conformidade do mercado-alvo.
Transferir
Disjuntor de Caixa Moldada Série CQM5
Visão geral completa de componentes elétricos de baixa tensão e referência para seleção de produtos.
Precisa de Documentos Técnicos?
Contacte-nos para folhas de dados, certificados, desenhos, orientação de seleção ou suporte a projetos OEM/ODM.
CQM5E Product FAQ
What is the CQM5E MCCB used for?
The CQM5E is specified for overload, short circuit and optional ground-fault protection in AC 380/400/415V and AC 660/690V systems within the published 10–800A range. Suitability depends on the fault study, conductor coordination, enclosure and local rules.
What does the electronic trip unit do in the CQM5E?
The electronic trip unit processes current signals and provides the adjustable protection functions stated for the model. Confirm the available long-time, short-time, instantaneous, ground-fault, auxiliary-power and communication options for the ordered configuration.
How do I choose the CQM5E rated current and poles?
Start with the design current and conductor calculation, then choose a published current within 10–800A and poles from 3P / 4P. Neutral treatment, fault level, ambient conditions and coordination also need review.
What breaking capacity should I check on the CQM5E?
Use the declared 20/70/85/100kA Icu and 10/50/65/75kA Ics values by frame and voltage for the exact frame, voltage and configuration. The prospective short-circuit current at the installation point must be within the applicable duty; a larger ampere value alone is not a selection rule.
Can the CQM5E replace an MCB or an earth-leakage device?
An MCCB is not automatically a like-for-like replacement. The CQM5E provides overload, short circuit and optional ground-fault protection; residual-current protection, DC interruption, adjustable settings and other functions must be confirmed separately from the project requirement.
How should the CQM5E be installed and tested?
Use only the exact model drawing, terminal identification and accessory instructions. A qualified person should verify isolation, conductor size, torque, clearances, settings, fault duty and functional tests before energising the circuit.
Confirm the Right CQM5E Configuration
Send the frame, rated current, poles, protection function, system voltage, expected fault level, destination market and quantity. CHAC will review the request against the published model range.
