FB2H-63 Miniature Circuit Breaker
ال FB2H-63 miniature circuit breaker provides overload and short-circuit protection within the published 10A–63A range. Its verified product data lists 10kA Icu; 7.5kA Ics, 1P / 2P and C. Final selection must match the conductor, load, prospective fault current, installation system and applicable local rules.
Product Overview
FB2H-63 is a 10kA Icu; 7.5kA Ics miniature circuit breaker covering 10A–63A. It is available with 1P / 2P and C trip options as stated in the product data. For the FB2 plug-in family, confirm the receiving panel and base arrangement; a matching current rating alone does not establish compatibility.
The model data references IEC 60898-1. Standards, certification scope and technical documents must be confirmed for the ordered configuration and destination market.
Key Features
Typical Applications
It is intended for AC distribution circuits where the selected current rating, curve, pole arrangement and breaking capacity match the conductor and system study. Typical project contexts include residential, commercial and light-industrial final distribution; suitability depends on the actual circuit rather than the application label alone.
Applications and Selection Guide
Use the product-specific values below as a shortlist, then validate the complete circuit design. Product ratings do not replace a fault-current study, conductor calculation, coordination review or applicable installation rules.
| Selection point | FB2H-63 option | What the project must confirm |
|---|---|---|
| Rated current | 10A–63A | Coordinate with design current, conductor ampacity, ambient temperature and grouping |
| Trip curve | C | Choose for load inrush and required fault-clearing performance, not by current alone |
| Breaking capacity | 10kA Icu; 7.5kA Ics | Confirm against the prospective short-circuit current at the installation point |
| ترتيب الأقطاب | لاعب واحد / لاعبان | Match supply system and local switching or isolation rules |
| Installation interface | Plug-in mounting | Check enclosure, rail/base, terminal and conductor compatibility |
Breaking Capacity
10kA Icu; 7.5kA Ics is the published product value. Confirm the prospective short-circuit current at the installation point.
Trip and Load Behaviour
C is the available trip/protection option. Match it to load inrush and required disconnection performance.
Pole Configuration
Available arrangement: 1P / 2P. Confirm which conductors must be switched and protected under local rules.
MCB or RCBO
An MCB does not replace residual-current protection where an RCD or RCBO is required.
Ordering Guide
- Specify the exact model: FB2H-63.
- State the required current rating within 10A–63A.
- Confirm pole arrangement: 1P / 2P.
- Confirm trip or protection option: C.
- Provide system voltage, expected fault level, destination market, quantity and any document requirements.
Installation and Coordination Checks
- Verify conductor material and cross-section against the circuit calculation and the published terminal range.
- Confirm the prospective short-circuit current does not exceed the applicable breaking rating.
- Check upstream/downstream coordination, enclosure temperature, grouping, altitude and required clearances.
- Installation, isolation, testing and maintenance must be carried out by qualified personnel under applicable rules.
تعيين النوع

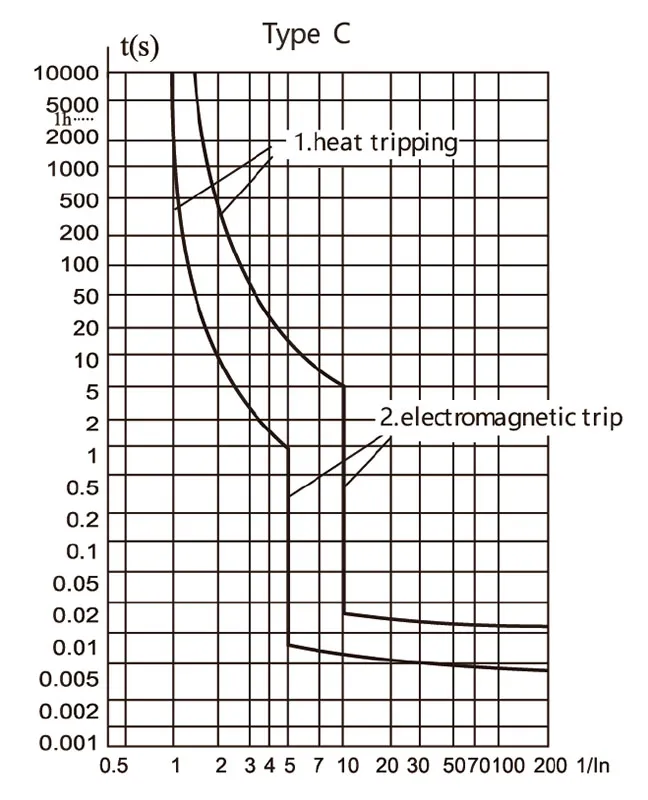

Tripping curves

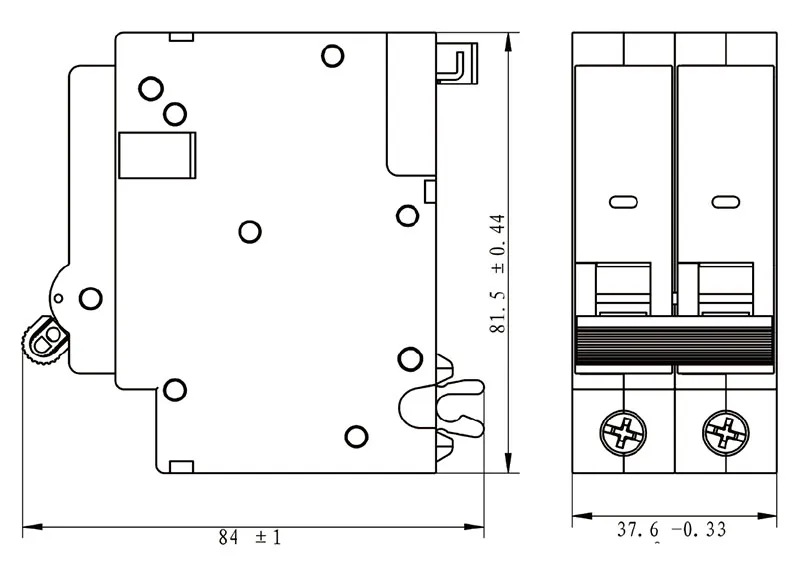

الأبعاد (مم)
المواصفات الفنية
| معامل | |
| Bracket rating current | ٦٣ أمبير |
| عدد الأقطاب | 1P, 2P |
| Feature | Overload and short circuit protection |
| Rated frequency f(HZ) | 50/60 هرتز |
| Rated operating voltage Ue(V AC) | 240V~ |
| التيار المقنن In(A) | 10,16,20,25,32,40,50,63A |
| Rated insulation voltage Ui(V) | 500V |
| Rated impulse withstand voltage Uimp(kV) | 4kV |
| Rated operating short-circuit breaking capacity (kA) | 7.5 kA |
| Rated limit short-circuit breaking capacity (kA) | 10kA |
| Current limiting class | 3 |
| Instantaneous trip characteristics | Electromagnetic type |
| Trip type | C |
| Electrical service life | 4000 times |
| Service life of machinery | 10000 times |
| Class of protection | IP20 |
| Wiring capability (mm2) | 1 to 25mm2 |
| Ambient temperature (daily average temperature ℃) | 35 ℃ or less |
| Storage temperature | -25℃ to +55℃ |
| Types of climate protection | Damp-heat type |
| Altitude (m) | ≤2000m |
| Relative humidity of air | 50% ~ 90% |
| Pollution level | 2 |
| Installation environment | / |
| Installation category | Ⅱ or Ⅲ |
| Installation mode | plug-in |
| Meet the standard | IEC 60898-1 |
