ال قاطع حماية المحرك من سلسلة CQV2 is a CHAC motor protection circuit breaker for overload, phase-failure and short-circuit protection. The page keeps the model-specific technical table and original product images so buyers can verify voltage, current, configuration, mounting and applicable standards before ordering. Final suitability depends on the complete circuit, installation method and destination-market rules.
Product Overview
CQV2 Series Motor Protection Circuit Breaker is a motor protection circuit breaker intended for overload, phase-failure and short-circuit protection. The current product record identifies it for three-phase motors, pumps and machine feeders. Use the exact model variant and preserved technical source as the basis for procurement rather than assuming that every family member has the same rating.
Verified source summary: Type Designation Tripping Characteristic Curve Test condition: Ambient temperature 20℃ Curve parameters (based on multiples of setting current in): (1) Starting from cold state, 3-pole (2) Starting from cold state, 2-pole (3) Starting from hot state, 3-pole Dimensions (mm) CQV2-ME CQV-AU/AX/AS CQV-AN/AD/AM CQV-AE Circuit Shield Technical Specifications Product Model Rated current(A) Motor output(kW) Setting Range(A)
Key Features
Typical Applications
Typical use can include three-phase motors, pumps and machine feeders when the project confirms system voltage, current, fault or surge exposure, conductor and enclosure requirements, and the selected variant’s installation instructions. This page does not replace the project design or the authority having jurisdiction.
Applications and Selection Guide
Use the following decision points with the preserved model data. Product-family descriptions explain intent, but the exact technical table controls the ordered variant.
| Selection point | قاطع حماية المحرك من سلسلة CQV2 | What the project must confirm |
|---|---|---|
| تطبيق | Motor Protector projects | Confirm the actual system and environment |
| Selection basis | overload, phase-failure and short-circuit protection | Use the exact model and technical table |
| Installation | Follow the model instructions | Check mounting, clearances and termination |
| Compliance | Use the listed standard where applicable | Verify edition, scope and destination rules |
| Adjacent product | Evaluate the related CHAC family where function differs | Do not substitute without engineering review |
Function
overload, phase-failure and short-circuit protection
Match the protection or switching function to the system.
إعدادات
Model-specific options
Confirm current, voltage, poles, terminals or accessories from the table.
Installation
Mechanical and electrical fit
Check enclosure, mounting, wiring space and maintenance access.
Project evidence
Documents and test records
Retain the approved drawing, technical sheet and commissioning record.
Ordering Guide
- State the exact model and variant.
- Provide the system voltage, current, frequency and load or protection function.
- Confirm mounting, terminals, accessories, enclosure and environmental conditions.
- Share quantity, destination market and required technical documents.
Installation and Coordination Checks
- Verify the model’s ratings and connection arrangement against the project drawings.
- Check conductor, busbar, enclosure, clearances and tightening requirements using the product documentation.
- Coordinate upstream and downstream protection or control devices where applicable.
- Use qualified personnel for installation, testing, isolation and maintenance.
Type Designation

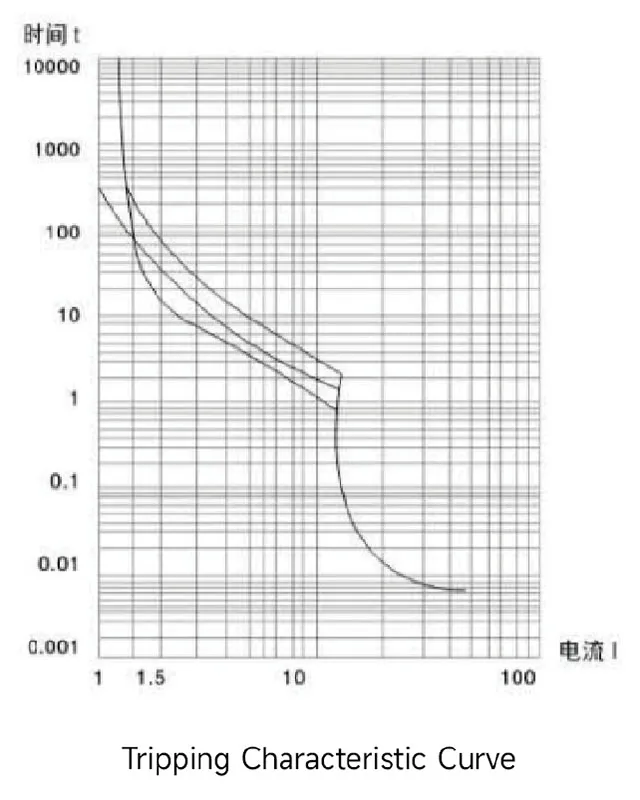

Tripping Characteristic Curve
Test condition: Ambient temperature 20℃
Curve parameters (based on multiples of setting current in):
(1) Starting from cold state, 3-pole
(2) Starting from cold state, 2-pole
(3) Starting from hot state, 3-pole

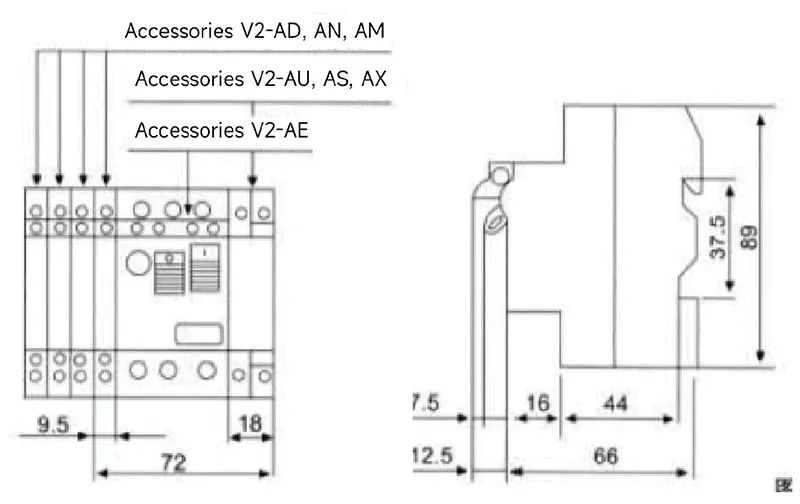

الأبعاد (مم)
CQV2-ME
CQV-AU/AX/AS CQV-AN/AD/AM CQV-AE
Circuit Shield
المواصفات الفنية
| طراز المنتج | Rated current(A) | Motor output(kW) | Setting Range(A) | Order Number | Packing parameters | |
| CQV2-ME32 | Thermal overload releases
|
Instantaneous overcurrent releases
|
QTY:50PCS N.W:13.5KG G.W:15KG MEAS:48X27X19CM |
|||
| 0.16 | 0.04 | 0.1-0.16 | 1.9 | CQV2-ME01 | ||
| 0.25 | 0.07 | 0.16-0.25 | 3 | CQV2-ME02 | ||
| 0.4 | 0.09/0.12 | 0.25-0.4 | 4.8 | CQV2-ME03 | ||
| 0.63 | 0.12/0.18 | 0.4-0.63 | 7.2 | CQV2-ME04 | ||
| 1 | 0.25 | 0.63-1 | 12 | CQV2-ME05 | ||
| 1.6 | 0.37/0.55 | 1-1.6 | 19 | CQV2-ME06 | ||
| 2.5 | 0.75 | 1.6-2.5 | 30 | CQV2-ME07 | ||
| 4 | 1.1/1.5 | 2.5-4 | 51 | CQV2-ME08 | ||
| 6.3 | 2.2 | 4-6.3 | 78 | CQV2-ME10 | ||
| 10 | 3/4 | 6-10 | 138 | CQV2-ME14 | ||
| 14 | 4/6.5 | 9-14 | 170 | CQV2-ME16 | ||
| 18 | 7/8 | 13-18 | 220 | CQV2-ME20 | ||
| 23 | 8/10 | 17-23 | 320 | CQV2-ME21 | ||
| 25 | 9/12 | 20-25 | 350 | CQV2-ME22 | ||
| 32 | 15 | 24-32 | 420 | CQV2-ME32 | ||
| CQV2-ME80 | 40 | 18.5 | 25-40 | 480 | CQV2-ME40 | QTY:30PCS N.W:23KG G.W:23.5KG MEAS:42X36X27.7CM |
| 63 | 28 | 40-63 | 720 | CQV2-ME63 | ||
| 80 | 32 | 56-80 | 960 | CQV2-ME80 | ||
Accessories Description
CQV-AE: Instantaneous Auxiliary Contact.
CQV-AN/AD/AM: Combination of Signal Contacts for trouble and short-circuit signals.
| طراز المنتج | Accessory Name | Part Code | Contact Configuration | Mounting Position |
| CQV-AE | Instantaneous Auxiliary Contact | AE1 | 1NO or 1NC | Front |
| CQV-AE | Instantaneous Auxiliary Contact | AE11 | 1NO or 1NC | Front |
| CQV-AE | Instantaneous Auxiliary Contact | AE20 | 2NO | Front |
| CQV-AN (-AD-AM) | Trouble Signal Contact | AD1001 | 1NC (Fault) | Left |
| CQV-AN (-AD-AM) | Trouble Signal Contact | AD1010 | 1NO (Fault) | Left |
| CQV-AN (-AD-AM) | Instantaneous Auxiliary Contact | AM11 | 1NO + 1NC | Left |
CQV-AU/AX/AS: Under-voltage Disjoining Accessory.
| طراز المنتج | Release Type | Part Code | جهد كهربائي | Operating Range |
| CQV2-AU (-AX-AS) | Undervoltage Release | AU225 | 220-240V AC | Operate: 0.85-1.1Ue; Trip: 0.35-0.7Ue |
| CQV2-AU (-AX-AS) | Undervoltage Release | AU385 | 380-415V AC | Operate: 0.85-1.1Ue; Trip: 0.35-0.7Ue |
| CQV2-AU (-AX-AS) | Shunt Release | AS115 | 220-240V AC | Operate: 0.85-1.1Ue; Trip: 0.2-0.75Ue |
| CQV2-AU (-AX-AS) | Shunt Release | AS225 | 220-240V AC | Operate: 0.85-1.1Ue; Trip: 0.2-0.75Ue |
| CQV2-AU (-AX-AS) | Shunt Release | AS385 | 220-240V AC | Operate: 0.85-1.1Ue; Trip: 0.2-0.75Ue |
CQV2-MC02: Circuit Shield
| طراز المنتج | تطبيق | Protection Type | Protection Rating | Packing Dimensions (cm) |
| CQV2-MC02 | For CQV2 breakers with/without accessories (max 1/side) | Surface-mount. double-insulated, sealed cover | IP55 | 51×31.5×48.5 |
