Miniature Circuit Breaker Types & Specifications: Complete Guide to Selection, Working Principle and Applications

As modern electrical systems become increasingly sophisticated and regulations regarding electrical safety become ever more rigorous, the need for MCBs is growing at an exponential rate. The MCB provides a vital service to ensure that electrical power distribution systems (residential; commercial; industrial) remain operationally continuous and protect the equipment from overloads and shorts.

The demand for high-performance mini circuit breakers has greatly increased due to the worldwide growth of renewable energy sources, intelligent buildings, and automated industrial equipment. Traditionally, buyers were mainly interested in the protective functions of their equipment; however, today’s buyers not only require these basic protections from their equipment but also need to understand the detailed technical characteristics (i.e., rated current, breaking capacity, and tripping characteristics) of their equipment to ensure they will work together and will continue to be reliable over time.

Customers often experience these common problems selecting and buying MCBs: not knowing what type of MCBs are right for them; being confused by B/C/D curves; having no idea if a particular product is appropriate for use with their electrical loads; difficulties comparing prices from the various suppliers who manufacture MCBs; and, finally, the challenge of verifying whether an MCB meets the relevant international quality standards, such as IEC compliance.Engineers, installers, and purchasing professionals must understand how miniature circuit breakers work and how to select the right mini circuit breaker. This guide provides a complete overview of the different types of MCBs, technical specifications, possible applications and methods for selecting an MCB in the process of designing electrical systems in today’s world. It is designed to help buyers make more knowledgeable and technically-based choices.



The Core Working Principle of Miniature Circuit Breakers

An MCB is a device that protects electrical circuits by automatically shutting off power to the circuit should there be an overload or a short circuit. It can be easily reset and reused after the fault has been corrected, significantly reducing the time that an electrical facility needs to be out of service and the associated maintenance costs.

A very carefully adjusted thermal-magnetic trip unit will provide the internal architecture with two (2) different methods of responding to different types of faults through the use of two (2) different but related physical mechanisms.

Thermal Overload Protection (Inverse-Time Delay)

Overload occurs when there is an excessive amount of current that has been drawn from an electric circuit for a prolonged period, at which time the wire(s) become overheated due to both the heat produced in the circuit and the atmospheric heat. The overload is corrected by the MCB, which utilizes a bimetallic strip composed of two different metals that have different coefficients of thermal expansion; when the current exceeds the rated operational current ($I_n$) for the wire, the excessive current flowing through a portion of the circuit produces localized heating ($I^2R$), which bends the bimetallic strip.

When the bend exceeds a specific mechanical limit, the trip latch will activate. The trip latch has an inverse time response. A small overload (e.g., 120% of $I_n$) can take many minutes to trip while a larger overload (e.g., 250% of $I_n$) will cause the bimetallic strip to bend and cause the breaker to trip in a matter of seconds. This allows the breaker to avoid nuisance (false) tripping due to temporary harmless current peaks, such as turning on a bank of fluorescent fixtures.

Magnetic Short-Circuit Protection (Instantaneous Tripping)

A short circuit is a catastrophic event caused by current getting around its load and causing an instantaneous, large amount of current to flow. An MCB utilizes a magnetic trip unit, which is composed of an internal solenoid to provide protection against short circuits.

An electromagnetic field is created when a short-circuit fault current travels through the solenoid coil, producing high levels of intensity. If the spike in current exceeds that which would allow for the operation of the device’s magnetic tripping threshold, the electromagnetic field quickly attracts a spring loaded plunger, causing it to strike the trip lever and rapidly separate the electrical contacts within a few milliseconds.

Advanced Arc Extinction Physics

Separation of internal contacts marks the start of the short-circuit isolation process. With such high voltage at the moment of the short-circuit isolation, current continues to flow through the air gap, resulting in ionization of the air where the air gap once existed to generate an extremely hot, usually above 3000 degrees Celsius, plasma arc.

Modern MCBs use an arc chute to prevent an arc from vaporizing the internal components of the circuit breaker. The magnetic field generated by an event inductively pushes the plasma arc out of the contacts and into a series of parallel metal split plates that are precisely spaced. These split plates extend, separate, and cool the plasma. As a result, by separating out 1 plasma arc into multiple arc segments, the total voltage of the arc will rise rapidly until it exceeds the system supply voltage, extinguishing the arc and clearing the fault.

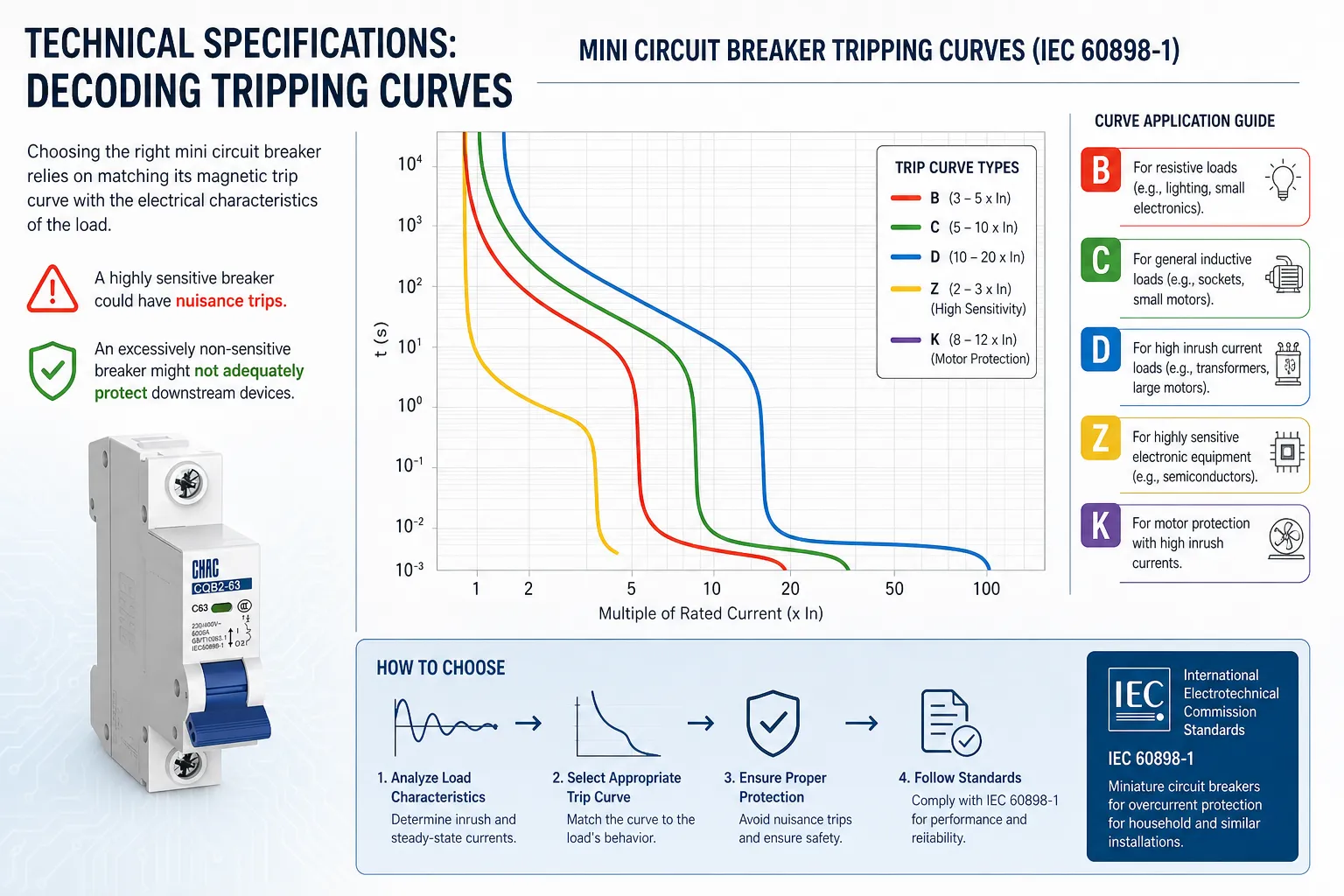

Technical Specifications: Decoding Tripping Curves

Choosing the right mini circuit breaker relies on matching its magnetic trip curve with the electrical characteristics of the load. A highly sensitive breaker could have nuisance trips whereas an excessively non-sensitive breaker might not adequately protect downstream devices.

The analysis presented below is of the standard and specialized tripping curves with International Electrotechnical Commission standards as a basis.

Critical Electrical Parameters and System Sizing

When it comes to identifying circuit breakers for an acquisition or electrical engineering purpose, this task is considerably more involved than just determining the nominal amperage rating assigned to the circuit breaker. Accurate short circuit breaking capacity, or rating, is necessary for ensuring the safety and compliance of an industrial panel enclosure.

Ultimate vs. Service Breaking Capacity

According to IEC 60947-2, short-circuit ratings that must be examined by consumers when selecting a circuit breaker for extremely heavy use in a commercial/industrial application.

• The technical term “Ultimate Short-Circuit Breaking Capacity” ($I_{cu}$) is the maximum amount of fault current that a circuit breaker is designed to safely interrupt at least once. After interrupting an $I_{cu}$ level of fault current, the circuit breaker has successfully prevented a fire or explosion; however, most circuit breaker contact surfaces will have been severely damaged, and the device would most likely require replacement.
• Breaking capacity (Ics) indicates the ability of an equipment to interrupt a short-circuit fault current. It is a maximum rating of a fault current to which the device has been tested and is able to operate at for continuous service following an interruption and can be represented as a percent of the device’s ultimate breaking capacity (Icu) e.g.: 50%, 75%, 100%.

When looking to purchase miniature circuit breakers, the procurement group will only buy an MCB where $I_{cs}$ equals 100% of $I_{cu}$ for any mission critical infrastructure including data centres, hospital’s electrical supply, or an automated manufacturing line so as to provide the maximum resiliency of operation and to reduce expensive facility downtime following a significant fault event.

Let-Through Energy Limitation

An MCB’s energy-limiting class denotes its efficacy in limiting the amount of harmful thermal energy transmitted through the downstream conductors. The amount of thermal energy present during a short circuit is determined by the energy-limiting total (or energy-limiting quantity), expressed as I2t (where I is the amperage and t is time), expressed in ampere squared seconds.

An MCB classified by the National Electrical Manufacturers Association (NEMA) as a “Class 3” energy-limiting device is one that quenches (extinguishes) the electrical arc in the circuit so quickly as to minimize the amount of energy transferred to downstream conductors, thereby preventing conductor insulation from degrading.

Let-Through Energy : The total destructive thermal and mechanical energy that passes through the circuit breaker down into the downstream wiring during the brief milliseconds it takes for the breaker contacts to open and fully extinguish a short-circuit arc. It is mathematically expressed as $I^2t$ (ampere-squared seconds).

The Lifecycle Challenge: Recognizing When to Replace an Aging MCB

Even though mini circuit breakers (MCBs) serve as part of an industrial electrical system, there are only a finite number of hours a properly functioning MCB can perform before requiring replacement due to mechanical failure (deterioration). As manufacturers modernize their facilities and upgrades to the electrical systems supporting them, each manufacturer is faced with the same questions regarding maintaining the existing electrical infrastructure or proactively replacing the existing MCBs with new ones. Continuing to use a deteriorated MCB well past its rated lifetime aged puts the entire electrical system at risk; therefore an assessment of the overall quality of MCB operation must occur in conjunction with any planned replacement of existing electrical systems. In order to determine quality of MCB operation any assessments can be accomplished using physical, mechanical and operational characteristics. Since most parts used within MCBs will deteriorate generally without visual inspection the maintenance tools will help the maintenance personnel understand if the MCB has reached its useful life through monitoring the physical/mechanical/operational items listed above.

1. Mechanical Fatigue: The “Spongy” Toggle Test

2. Thermal and Visual Degradation: Scorching and Case Discoloration

3. Acoustic Anomalies: Internal Buzzing or Humming

4. Unexplained Nuisance Tripping (Thermal Drift)

Application Matrix: Standard AC vs. Specialized DC Loads

The introduction of many complexities into the B2B electrical procurement process as part of the global shift to renewable energy. More specifically, with the increasing demand for solar photovoltaic (PV) sites, battery energy storage systems (BESS) and direct current (DC) fast charging stations for electric vehicles, procurement teams must now source additional valuable and specialized direct current (DC) protective devices for these applications.

Applying a standard alternating current (AC) circuit breaker to a direct current (DC) load is a severe safety violation. Alternating current naturally drops to zero volts twice per cycle (the zero-crossing point), which naturally assists in extinguishing electrical arcs. Direct current, however, provides a continuous, unyielding flow of power.

If an AC breaker attempts to interrupt a high-voltage DC fault, the plasma arc will simply sustain itself, melting the breaker and potentially starting a panel fire. Specialized DC MCBs are engineered with internal permanent magnets that forcefully manipulate the sustained DC plasma arc, blowing it into the arc chute regardless of polarity. When sourcing for solar or BESS applications, buyers must verify specific DC voltage ratings (often up to 1000V DC or 1500V DC) and confirm IEC 60947-2 compliance for DC applications.

Manufacturing Capability and Procurement Best Practices

As the miniature circuit breaker market matures, a manufacturer’s production ecosystem is the most reliable indicator of product consistency. B2B buyers must evaluate Original Equipment Manufacturers (OEMs) based on their automation maturity and material science standards. Industry veterans, such as CHAC, demonstrate how high-volume automated manufacturing mitigates risks like thermal drift—a defect where manual assembly inconsistencies cause the breaker to trip outside its designated safety curve.

Leading OEMs utilize Supervisory Control and Data Acquisition (SCADA) systems and automated laser calibration lines. This ensures that the bimetallic strip in every single pole is tuned to exact mathematical tolerances.

Quality Assurance and International Certification Frameworks

In the highly regulated electrical equipment sector, unverified products carry unacceptable liability risks. A robust global supply chain strategy requires sourcing teams to demand verified third-party laboratory testing.

• IEC/EN 60898-1: The foundational standard for circuit breakers intended for residential and commercial use by uninstructed personnel. Products here require CE marking and CB Scheme validation.

• IEC/EN 60947-2: The rigorous standard for industrial applications, requiring higher breaking capacities and strict mechanical endurance testing (minimum 10,000 full-load operational cycles). Recognized certifications include KEMA, TÜV Rheinland, and VDE.

• UL 489 / UL 1077: Essential for the North American market. UL 489 strictly governs branch circuit protection, while UL 1077 applies to supplementary protection within pre-certified appliances.

Furthermore, environmental sustainability is now a critical Environmental, Social, and Governance (ESG) metric. Buyers should mandate that manufacturing partners operate under ISO 14001 guidelines and utilize materials fully compliant with the Restriction of Hazardous Substances (RoHS) directive.

The Rise of Smart IoT Circuit Breakers

The future of low voltage electrical protection lies in digitalization. The industry is rapidly shifting away from purely mechanical, reactive safety components toward proactive, data-driven grid management solutions.

Smart miniature circuit breakers embed micro-current transformers, temperature sensors, and wireless communication modules directly into the standard DIN-rail footprint. Operating on protocols like Modbus-RTU, Zigbee, or Cellular IoT, these devices stream real-time telemetry data to central energy management systems. By analyzing micro-fluctuations in voltage, harmonic distortions, or abnormal terminal temperature rises, facility managers can execute predictive maintenance—replacing a degrading component weeks before it causes an uncoordinated shutdown. This digital transformation cements the miniature circuit breaker as an intelligent, foundational asset in the modern, sustainable power grid.

FAQs

Q1: What is a miniature circuit breaker (MCB) used for?

A miniature circuit breaker is used to automatically protect electrical circuits from overload and short-circuit conditions. It is widely installed in residential distribution panels, commercial buildings, and industrial power systems to ensure electrical safety and prevent equipment damage.

Q2: What is the difference between a mini circuit breaker and a fuse?

A fuse is a one-time protection device that must be replaced after it blows, while a mini circuit breaker (MCB) can be reset and reused. MCBs also provide more precise and reliable protection, especially in modern electrical distribution systems.

Q3: How do I choose the right MCB type for my application?

Choosing the right MCB depends on load type and system conditions. For example, B curve MCBs are suitable for residential lighting, C curve for general commercial loads, and D curve for inductive loads such as motors and transformers.

Q4: What do B, C, and D curves mean in miniature circuit breakers?

These tripping curves define how quickly the MCB reacts to overcurrent. B curve trips quickly for low surge loads, C curve allows moderate inrush current, and D curve is designed for high inrush industrial equipment like motors.



Inrush Current: The instantaneous, high-amplitude current spike that occurs the exact millisecond an electrical device—such as an electric motor, transformer, or industrial LED lighting array—is switched on. This transient surge can briefly reach up to 10 to 15 times the device’s steady-state operating current.

Q5: Can miniature circuit breakers be used in DC systems like solar panels?

Yes, but only DC-rated MCBs should be used. DC miniature circuit breakers are specifically designed to handle continuous current flow without zero-crossing, making them suitable for solar PV systems, battery storage, and electric vehicle applications.

Q6: What does breaking capacity mean in an MCB?

Breaking capacity (Icu) refers to the maximum short-circuit current a miniature circuit breaker can safely interrupt without damage. Common ratings include 6kA, 10kA, and 15kA, depending on the application environment.

Q7: Why do miniature circuit breaker prices vary so much?

MCB price differences depend on several factors, including breaking capacity, rated current, material quality, certification standards (IEC, UL), and manufacturer brand or OEM capability. Higher-spec industrial MCBs generally cost more than basic residential models.

Q8: What should I check before buying from a miniature circuit breaker manufacturer?

Buyers should verify technical specifications, IEC/UL certification, product reliability, production capability, and whether the manufacturer supports OEM/ODM services. It is also important to confirm compatibility with your electrical system and application requirements.
