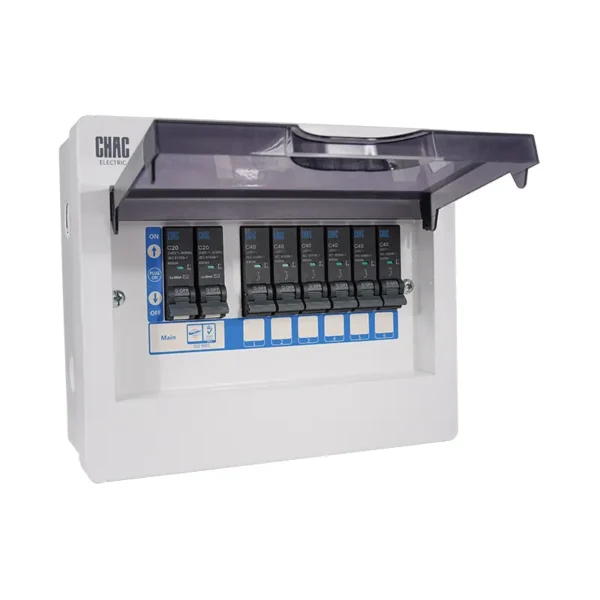

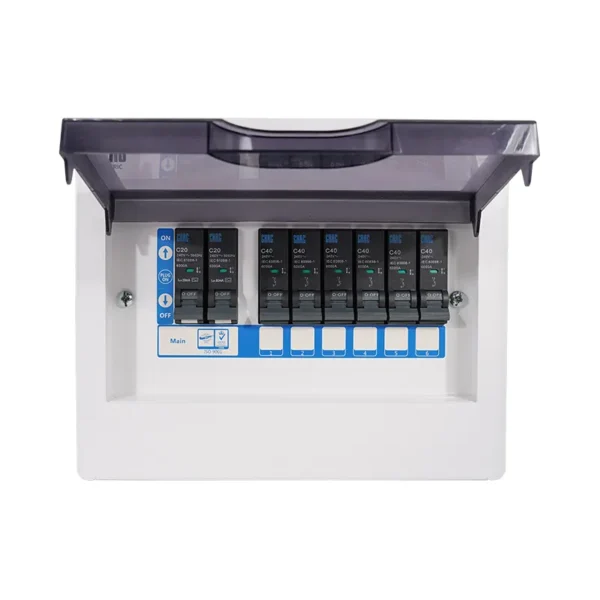

CQMG10 Series Plug-In Distribution Box
Product Features
■ Plug-in Design: Enables quick and easy installation of circuit breakers.
■ Robust Construction: Box made from cold-rolled steel; visible cover in high-impact PC material.
■ Versatile Configurations: Available in 4, 6, 10, and 12-circuit versions with main switch (2P).
■ Full Compatibility: Pre-punched knockouts (Φ32/Φ25) and dedicated N/PE terminal holes simplify wiring.
■ Surface Mounting: Designed for straightforward and flexible installation.
■ Protection Rating: IP20 for mounting holes, IP40 for other parts (before knockout removal).
Ordering Specification
Please specify the following when ordering:
1.Product Model: CQMG10
2.Quantity: [e.g.: 100 pcs]
Ordering Example:
CQMG10 100 pcs
Type Designation
Technical Specifications
| Parameter | Description |
| Mounting Type | Surface Mount |
| Material | Box: Cold-rolled steel Cover: PC material |
| Plate Thickness | 1.0 mm |
| Circuit Breaker Type | Plug-in |
| Protection Rating | IP20 (for mounting holes) IP40 (for other parts, before knockout removal) |
| Surface Treatment | Electrostatic spraying |
Dimensions(mm)
| Circuit Configuration | Box Dimensions (LWD, mm) | Neutral Bar Terminal Holes | Ground Bar Terminal Holes | Knockouts |
| Main Switch (2P) + 4 Circuits | 249 * 209 * 105 | 4 | 7 | Top: Φ32×2 + Φ25×2 Bottom: Φ32×2 + Φ25×2 |
| Main Switch (2P) + 6 Circuits | 249 * 208 * 105 | 6 | 9 | Top: Φ32×2 + Φ25×2 Bottom: Φ32×2 + Φ25×2 |
| Main Switch (2P) + 10 Circuits | 326 * 209 * 105 | 10 | 13 | Top: Φ32×2 + Φ25×2 Bottom: Φ32×2 + Φ25×2 |
| Main Switch (2P) + 12 Circuits | 364 * 209 * 105 | 12 | 15 | Top: Φ32×2 + Φ25×2 Bottom: Φ32×2 + Φ25×5 |
