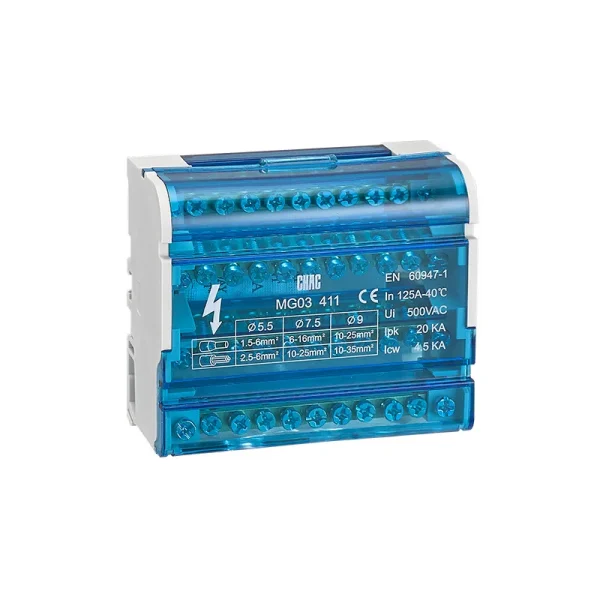

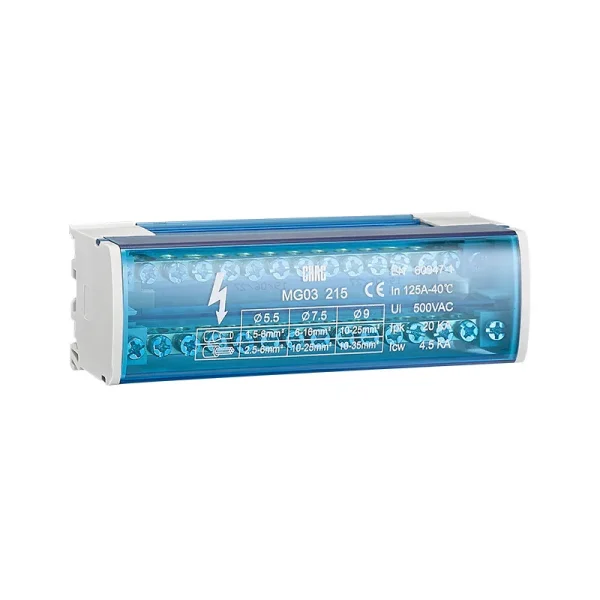

CQMG03 Series Distribution Junction Box Connection Solutions
The CQMG03 Series Distribution Junction Box Connection Solutions is a CHAC distribution junction box for bus and terminal connection. The page keeps the model-specific technical table and original product images so buyers can verify voltage, current, configuration, mounting and applicable standards before ordering. Final suitability depends on the complete circuit, installation method and destination-market rules.
Product Overview
CQMG03 Series Distribution Junction Box Connection Solutions is a distribution junction box intended for bus and terminal connection. The current product record identifies it for distribution panels and industrial control equipment. Use the exact model variant and preserved technical source as the basis for procurement rather than assuming that every family member has the same rating.
Verified source summary: Dimensions(unit:mm) ltem b(mm) CQMG03-207 65 CQMG03 -215 132 ltem b(mm) CQMG03-407 65 CQMG03-411 100 CQMG03-415 132 ltem b(mm) CQMG03 -411(160A) 167 Technical data Specifications Rated insulation voltage Ui(V) 500 Rated current le(A) 125/160 Frequency(Hz) 50 Rated short-time withstand current lcw(kA) 4.5 Rated peak withstand current lpk(kA) 20 Model Conductive row number Terminal Number of Single Conductive Row CQMG0
Key Features
Typical Applications
Typical use can include distribution panels and industrial control equipment when the project confirms system voltage, current, fault or surge exposure, conductor and enclosure requirements, and the selected variant’s installation instructions. This page does not replace the project design or the authority having jurisdiction.
Applications and Selection Guide
Use the following decision points with the preserved model data. Product-family descriptions explain intent, but the exact technical table controls the ordered variant.
| Selection point | CQMG03 Series Distribution Junction Box Connection Solutions | What the project must confirm |
|---|---|---|
| Application | Junction Box projects | Confirm the actual system and environment |
| Selection basis | bus and terminal connection | Use the exact model and technical table |
| Installation | Follow the model instructions | Check mounting, clearances and termination |
| Compliance | Use the listed standard where applicable | Verify edition, scope and destination rules |
| Adjacent product | Evaluate the related CHAC family where function differs | Do not substitute without engineering review |
Function
bus and terminal connection
Match the protection or switching function to the system.
Configuration
Model-specific options
Confirm current, voltage, poles, terminals or accessories from the table.
Installation
Mechanical and electrical fit
Check enclosure, mounting, wiring space and maintenance access.
Project evidence
Documents and test records
Retain the approved drawing, technical sheet and commissioning record.
Ordering Guide
- State the exact model and variant.
- Provide the system voltage, current, frequency and load or protection function.
- Confirm mounting, terminals, accessories, enclosure and environmental conditions.
- Share quantity, destination market and required technical documents.
Installation and Coordination Checks
- Verify the model’s ratings and connection arrangement against the project drawings.
- Check conductor, busbar, enclosure, clearances and tightening requirements using the product documentation.
- Coordinate upstream and downstream protection or control devices where applicable.
- Use qualified personnel for installation, testing, isolation and maintenance.
Dimensions(unit:mm)
| ltem | b(mm) |
| CQMG03-207 | 65 |
| CQMG03 -215 | 132 |
| ltem | b(mm) |
| CQMG03-407 | 65 |
| CQMG03-411 | 100 |
| CQMG03-415 | 132 |
| ltem | b(mm) |
| CQMG03 -411(160A) | 167 |
Technical data
| Specifications | |
| Rated insulation voltage Ui(V) | 500 |
| Rated current le(A) | 125/160 |
| Frequency(Hz) | 50 |
| Rated short-time withstand current lcw(kA) | 4.5 |
| Rated peak withstand current lpk(kA) | 20 |
| Model | Conductive row number | Terminal Number of Single Conductive Row |
| CQMG03-207 | 2 | 7 |
| CQMG03-215 | 2 | 15 |
| CQMG03-407 | 4 | 7 |
| CQMG03-411 | 4 | 11 |
| CQMG03-415 | 4 | 15 |
| CQMG03-411(160A) | 4 | 11 |
