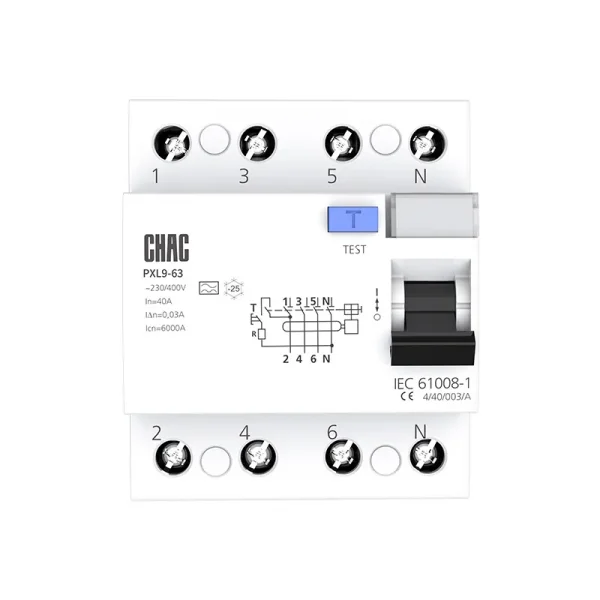

PXL9-63 Series Electromagnetic Leakage Circuit Breaker
The PXL9-63 is specified for residual-current protection without overcurrent protection. Select it using the published voltage, current, pole and protection data, then confirm conductor coordination, fault conditions, enclosure requirements and local installation rules.
Product Overview
PXL9-63 is a 63A RCCB for AC 230/400V applications. It is intended for residential, commercial and industrial circuits where a separate overcurrent device is coordinated; this describes an evaluation context, not a universal approval. Confirm the complete circuit design before specifying the product.
residual-current protection without overcurrent protection is distinct from adjacent protection functions. Do not infer AC/DC suitability, residual-current protection, automatic control or isolation performance from the product family name alone.
Key Features
Typical Applications
residential, commercial and industrial circuits where a separate overcurrent device is coordinated. Verify system voltage, expected fault current or leakage, wiring arrangement, environment, coordination and applicable rules for the ordered configuration.
Applications and Selection Guide
Use the verified PXL9-63 records below to create a shortlist. Product labels do not replace the project calculation, coordination review or exact installation instructions.
| Selection point | PXL9-63 reference | What the project must confirm |
|---|---|---|
| Rated current | Use the exact model table | Design current, conductor capacity, ambient and grouping |
| Voltage and frequency | AC 230/400V | Supply system and equipment rating |
| Poles | 2P / 4P | Conductors to be switched, protected or isolated |
| Protection / control | residual-current protection without overcurrent protection | Required function and adjacent-device coordination |
| Fault / residual data | 30mA, 100mA or 300mA options | Prospective short-circuit or leakage conditions |
RCCB vs RCBO
An RCCB addresses residual-current protection; an RCBO combines residual-current and overcurrent functions. Choose the architecture required by the protection study.
Protection Function
Compare RCBO Options →
Model-Specific Ratings
Use the exact technical table for rated voltage, current, poles, terminals, life and environmental limits.
Verified Data
View Technical Support →
Installation and Coordination
Check the complete circuit, conductor sizing, fault or leakage conditions, enclosure and local rules before energising.
Engineering Check
Discuss a Configuration →
Ordering Information
State model, rating, poles, system, quantity, destination market and document requirements so the configuration can be reviewed.
Project Inputs
Send Project Details →
Ordering Guide
- State the exact model: PXL9-63.
- Provide rated current and voltage from the published technical table.
- Confirm poles and the required protection, isolation or control function.
- Provide application, expected fault/leakage conditions, destination market and quantity.
- List accessory, terminal, documentation and approved marking or packaging requirements.
Installation and Coordination Checks
- Use the exact model drawing and instructions; do not infer wiring or accessory compatibility from another product.
- Verify conductor size, terminal torque, enclosure conditions, temperature, grouping and clearances.
- Coordinate upstream and downstream devices and confirm the required fault, leakage or voltage response.
- Installation, testing and maintenance must be completed by qualified personnel under applicable rules.
Type designation
Dimension
Technical Specifications
| Parameter | |
| Rated voltage Ue | 230V/400V |
| Rated current(A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Rated insulation voltage(Ui) | 500V |
| Rated frequency | 50Hz/60Hz |
| Number of poles | 2P、4P |
| Rated limited short-circuit current Inc(A) | 6000 |
| Rated limited residual short-circuit current I△c(A) | 6000 |
| Mechanical&Electrical life | 4000 |
| Rated residual operating current I△n(mA) | 30, 100, 300 |
| Pollution degree | 2 |
| Protection degree | IP20 |
| Standards | EN/IEC61008-1、GB/T16916.1 |
| Tighten torque(Nm) | 2.5 |
| Rated impulse withstand voltage(Uimp) | 4000V |
| Type of residual current | AC、A、B、S、G |
| Rated making&breaking capacity Im(A) | 500A or 10In (Take the maximum value) |
| Rated residual making&breaking capacity I△m(A) | 500A or 10In (Take the maximum value) |
