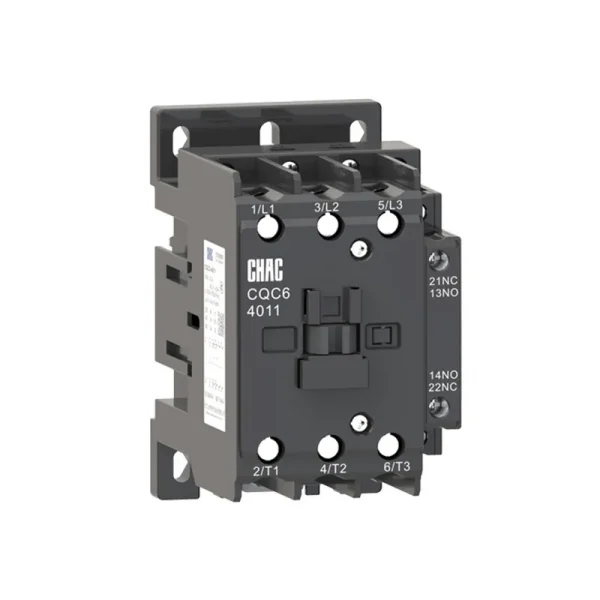

CQC6 Series Industrial AC Contactor OEM Manufacturer
The CQC6 Series Industrial AC Contactor OEM Manufacturer is a CHAC AC contactor for remote switching and motor control. The page keeps the model-specific technical table and original product images so buyers can verify voltage, current, configuration, mounting and applicable standards before ordering. Final suitability depends on the complete circuit, installation method and destination-market rules.
Product Overview
CQC6 Series Industrial AC Contactor OEM Manufacturer is a AC contactor intended for remote switching and motor control. The current product record identifies it for motor starters, HVAC and automation panels. Use the exact model variant and preserved technical source as the basis for procurement rather than assuming that every family member has the same rating.
Verified source summary: Type designation Dimensions (mm) Model number Amax Bmax Cmax Dmax a/a' b C Ф CQC6-06~25 46 76 83 117 35 50 60 Ф4.5 CQC6-32~38 57 85 96 130 40/43 48 / Ф4.5 CQC6-40~65 76 128 115 149 40/59 100 110 Ф5.5 CQC6-80~95 85 128 124 158 40/67 100 110 Ф5.5 Accessories Description Contact Configuration Technical Specifications Model number CQC6 -6 CQC6 -9 CQC6 -12 CQC6 -18 CQC6 -25 CQC6 -32 CQC6 -38 CQC6 -40 CQC6 -50 CQC6 -65 CQC
Key Features
Typical Applications
Typical use can include motor starters, HVAC and automation panels when the project confirms system voltage, current, fault or surge exposure, conductor and enclosure requirements, and the selected variant’s installation instructions. This page does not replace the project design or the authority having jurisdiction.
Applications and Selection Guide
Use the following decision points with the preserved model data. Product-family descriptions explain intent, but the exact technical table controls the ordered variant.
| Selection point | CQC6 Series Industrial AC Contactor OEM Manufacturer | What the project must confirm |
|---|---|---|
| Application | AC Contactor projects | Confirm the actual system and environment |
| Selection basis | remote switching and motor control | Use the exact model and technical table |
| Installation | Follow the model instructions | Check mounting, clearances and termination |
| Compliance | Use the listed standard where applicable | Verify edition, scope and destination rules |
| Adjacent product | Evaluate the related CHAC family where function differs | Do not substitute without engineering review |
Function
remote switching and motor control
Match the protection or switching function to the system.
Configuration
Model-specific options
Confirm current, voltage, poles, terminals or accessories from the table.
Installation
Mechanical and electrical fit
Check enclosure, mounting, wiring space and maintenance access.
Project evidence
Documents and test records
Retain the approved drawing, technical sheet and commissioning record.
Ordering Guide
- State the exact model and variant.
- Provide the system voltage, current, frequency and load or protection function.
- Confirm mounting, terminals, accessories, enclosure and environmental conditions.
- Share quantity, destination market and required technical documents.
Installation and Coordination Checks
- Verify the model’s ratings and connection arrangement against the project drawings.
- Check conductor, busbar, enclosure, clearances and tightening requirements using the product documentation.
- Coordinate upstream and downstream protection or control devices where applicable.
- Use qualified personnel for installation, testing, isolation and maintenance.
Type designation
Dimensions (mm)
| Model number | Amax | Bmax | Cmax | Dmax | a/a’ | b | C | Ф |
| CQC6-06~25 | 46 | 76 | 83 | 117 | 35 | 50 | 60 | Ф4.5 |
| CQC6-32~38 | 57 | 85 | 96 | 130 | 40/43 | 48 | / | Ф4.5 |
| CQC6-40~65 | 76 | 128 | 115 | 149 | 40/59 | 100 | 110 | Ф5.5 |
| CQC6-80~95 | 85 | 128 | 124 | 158 | 40/67 | 100 | 110 | Ф5.5 |
Accessories Description
Contact Configuration
Technical Specifications
| Model number | CQC6 -6 |
CQC6 -9 |
CQC6 -12 |
CQC6 -18 |
CQC6 -25 |
CQC6 -32 |
CQC6 -38 |
CQC6 -40 |
CQC6 -50 |
CQC6 -65 |
CQC6 -80 |
CQC6 -95 |
|
| Rated insulation voltage (Ui) | 690V | ||||||||||||
| Rated impulse withstand voltage (Uimp) | 8kV | ||||||||||||
| Rated frequency | 50Hz, 50/60Hz | ||||||||||||
| Number of poles (P) | 3 | ||||||||||||
| Rated Operational Current (A)- AC-3 | 220V/230V | 6 | 9 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 |
| 380V/400V | 6 | 9 | 12 | 18 | 25 | 32 | 38 | 40 | 50 | 65 | 80 | 95 | |
| 660V/690V | 4.8 | 6.6 | 8.9 | 12 | 18 | 20.2 | 20.2 | 34 | 39 | 42 | 49 | 49 | |
| Conventional Free-Air Thermal Current (A) (AC-1, θ ≤ 60℃) | 20 | 25 | 25 | 32 | 40 | 50 | 50 | 60 | 80 | 80 | 110 | 110 | |
| Short-Time Withstand Current (A) | 10s | 80 | 105 | 105 | 145 | 145 | 260 | 310 | 320 | 400 | 520 | 640 | 800 |
| 1min | 45 | 61 | 61 | 84 | 84 | 138 | 150 | 165 | 208 | 260 | 320 | 400 | |
| 10min | 20 | 30 | 30 | 40 | 40 | 60 | 60 | 72 | 84 | 110 | 135 | 135 | |
| Controlled 3-Phase Squirrel Cage Motor Power (kW) – AC-3 | 220V/230V | 1.5 | 2 | 3.5 | 4 | 6 | 7.5 | 9 | 11 | 15 | 18.5 | 22 | 25 |
| 380V/400V | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 45 | |
| 660V/690V | 3 | 5.5 | 7.5 | 10 | 15 | 18.5 | 18.5 | 30 | 33 | 37 | 45 | 45 | |
| Short-circuit protection by gG fuses (U ≤ 690V) for Type 2 coordination, without integral thermal overload relay | 20 | 25 | 25 | 32 | 40 | 50 | 50 | 60 | 80 | 80 | 110 | 110 | |
| Electrical Endurance (104 operations) | 120 | 100 | 80 | ||||||||||
| Rated Making Capacity (AC-3) | 10 × Ie, in accordance with IEC 60947-4-1 and GB/T 14048.4. | ||||||||||||
| Rated Breaking Capacity (AC-3) | 8 × Ie, in accordance with IEC 60947-4-1 and GB/T 14048.4. | ||||||||||||
| Characteristics of AC controlcircuits | |||||||||||||
| Operating Frequency (operations/h) | 1200 | 600 | |||||||||||
| Mechanical Life (104 operations, 3600 ops/h) | 1200 | 1000 | 800 | 600 | |||||||||
| AC Coil Power (50/60Hz) | Pick-up (VA) | 70 | 110 | 200 | 200 | ||||||||
| Sealed (VA) | 8 | 11 | 20 | 20 | |||||||||
| Operate Time (ms) | Close | 12-22 | 12-22 | 20-35 | 20-35 | ||||||||
| Open | 4-19 | 4-19 | 6-15 | 6-15 | |||||||||
| Operate Voltage Range (50/60Hz) | Pick-up Voltage: 80%Us ~ 110%Us; Drop-out Voltage: 20%Us ~ 75%Us | ||||||||||||
| Rated Control Supply Voltage Us | AC 24/36/48/110/220/230/380/400/415/440V, 50/60Hz | ||||||||||||
| Applicable accessories | Auxiliary contact block | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● |
| Coil surge absorber | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Main circuit conductor | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Mechanical interlock | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Mechano-electrical interlock | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| DIN rail mounting | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| Certifications obtained | CCC CE CB | ||||||||||||
Main Circuit Conductor (Busbar)
| Product Model |
Upper Conductor | Lower Conductor | Conductor | Applicable Models | ||||
| Amax | Bmax | Cmax | Amax | Bmax | Cmax | Dmax | ||
| F1-H1 | 88 | 24 | 28 | 88 | 17 | 28 | 2.5mm2 | CQC6-06/18 |
| F1-H2 | 103 | 29 | 33 | 103 | 20 | 35 | 6mm2 | CQC6-25/38 |
| F1-H3 | 134 | 43 | 55 | 134 | 30 | 50 | 10mm2 | CQC6-40/65 |
| F1-H4 | 150 | 52 | 51 | 150 | 37 | 50 | 16mm2 | CQC5-80/95 |
Electrical/Mechanical Interlock
| Product Name | Content | Product Model | Applicable Models | Wiring Diagram (ME) |
| Electrical Interlock | Electrical Interlock Kit | F2-LS3 | CQC6-06~38 |  |
| Electrical Interlock Kit | F2-LS4 | CQC6-40-95 | ||
| Mechanical Interlock | Mechanical Interlock Kit | F2-LS1 | CQC6-06~38 | |
| Mechanical Interlock Kit | F2-LS2 | CQC6-40~95 |
Component size diagram (mm)
RC Snubber (Coil Surge Suppression)
| Product Model | Content | Applicable Models | Dimensions (mm) | |
| F3-LY2EA | AC 24…48V | CQC6-06~38 |  |
 |
| F3-LY2GA | AC 50…127V | |||
| F3-LY2UA | AC 110…240V | |||
| F3-LY2NA | AC 380…415V | CQC6-40~95 | ||
| F3-LY2FC | AC 24…48V | |||
| F3-LY2GC | AC 50…127V | |||
| F3-LY2UC | AC 110…240V |  |
||
| F3-LY2NC | AC 380…415V | |||
Auxiliary Contacts
| Product Name | Product Model | Content | Applicable Models | Dimensions (mm) | ||
| Top-Mounted Auxiliary (2 Contacts) |
F4-11 | 1NO + 1NC | CQC6-06~95 | ① |  |
 |
| F4-20 | 2NO | |||||
| F4-02 | 2NC | |||||
| Top-Mounted Auxiliary (4 Contacts) |
F4-22 | 2NO + 2NC | ② | |||
| F4-40 | 4NO | |||||
| F4-04 | 4NC | |||||
| F4-13 | 1NO + 3NC | |||||
| F4-31 | 3NO + 1NC | |||||
| Electrical Parameters | |
| Conventional Thermal Current Ith | 10A |
| Rated Insulation Voltage Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 6kV |
| Minimum Switchable Load | 6V 100mA |
| Utilization Category | Rated Operational Voltage (V) | Rated Operational Current (A) |
| AC-15 | 380 | 0.95 |
| 220 | 1.6 | |
| DC-13 | 220 | 0.15 |
On-Delay Timer (Timer Head)
| Product Model | Content | Applicable Models |
| F5-T0 | 0.1…3s | CQC6-06-95 |
| F5-T2 | 0.1…30s | |
| F5-T4 | 10…180s | |
| F5-S2 | 1…30s | |
| F5-D0 | 0.1…3s | |
| F5-D2 | 0.1…30s | |
| F5-D4 | 10…180s |
Side-Mounted Auxiliary
| Product Model | Content | Applicable Models |
| F8-11 | 1NO + 1NC | CQC6-06-95 |
| F8-20 | 2NO | |
| F8-02 | 2NC |
Why Choose CHAC
With 30+ years of manufacturing experience, 1100+ employees, 100M+ poles
annual capacity and 90% automated production, CHAC provides stable production capacity and strict
quality control for global OEM/ODM customers. Our in-house manufacturing system supports long-term
cooperation for electrical brands, importers and distributors.
30+
YEARS EXPERIENCE
Specialized in low-voltage electrical manufacturing
1100+
EMPLOYEES
Professional team ensures stable quality and delivery
100M+
POLES ANNUAL CAPACITY
Large-scale production capacity to meet global demand
90%
AUTOMATED PRODUCTION
Advanced automation for high efficiency and consistency
Automated Assembly Line
Testing Laboratory
Injection & Stamping
Quality Inspection
Strict quality control system ensures every product meets global standards.
What Can We Customize?
CHAC supports customization of coil voltage, auxiliary contact configuration,
electrical parameters, product branding,packaging design and engineering development according to customers’ equipment and market requirements.
Coil Voltage
AC and DC coil voltage options tailored to application requirements.
Auxiliary Contacts
Flexible auxiliary contact combinations for different control functions.
Electrical Parameters
Current ratings, protection ranges and functional parameters can be customized.
Product Branding
Private label logos, nameplates and product identification support.
Packaging Design
Custom cartons, labels, manuals and packaging solutions.
Engineering Development
Support from drawing optimization to product development and application matching.
Download
CQC6 Series AC Contactor
Complete product overview for low-voltage electrical components and product selection reference.
Need Technical Documents?
Contact us for datasheets, certificates, drawings, selection guidance or OEM/ODM project support.
CQC6 Product FAQ
What loads can the CQC6 contactor switch?
Use the published utilization category, operational current and voltage for the selected variant. Resistive, motor and capacitive loads require different checks.
How do I select an AC contactor size?
Start with load current, utilization category, starts per hour, coil voltage, poles and short-circuit coordination. Current alone is not enough.
Can a thermal relay be paired with it?
Where the product record supports the combination, a thermal relay can form a motor starter. Confirm mechanical fit, current range and control wiring.
Which coil voltage should I specify?
Match the control supply shown on the project drawing with the coil option for the exact model. Never assume the coil voltage from the main circuit.
What accessories are available?
Auxiliary contacts, timers, interlocks or other accessories depend on the series and variant. Confirm the compatible accessory list before ordering.
How should a contactor be commissioned?
Verify terminal torque, coil voltage, contact sequence, insulation and operating current, then record the test results.
Confirm the Right CQC6 Configuration
Send the exact model, operating conditions, quantity, destination market and required documents. CHAC will review the request against the published product data.
