PXB6H-63 Miniature Circuit Breaker
The PXB6H-63 miniature circuit breaker provides overload and short-circuit protection within the published 0.5A–63A range. Its verified product data lists 10kA, 1P+N / 2P / 3P / 3P+N / 4P and B / C / D. Final selection must match the conductor, load, prospective fault current, installation system and applicable local rules.
Product Overview
PXB6H-63 is a 10kA miniature circuit breaker covering 0.5A–63A. It is available with 1P+N / 2P / 3P / 3P+N / 4P and B / C / D trip options as stated in the product data.
The model data references IEC 60898-1; GB/T 10963.1 and lists CE, CB, CCC and DEKRA certification. Standards, certification scope and technical documents must be confirmed for the ordered configuration and destination market.
Key Features
Typical Applications
It is intended for AC distribution circuits where the selected current rating, curve, pole arrangement and breaking capacity match the conductor and system study. Typical project contexts include residential, commercial and light-industrial final distribution; suitability depends on the actual circuit rather than the application label alone.
Applications and Selection Guide
Use the product-specific values below as a shortlist, then validate the complete circuit design. Product ratings do not replace a fault-current study, conductor calculation, coordination review or applicable installation rules.
| Selection point | PXB6H-63 option | What the project must confirm |
|---|---|---|
| Rated current | 0.5A–63A | Coordinate with design current, conductor ampacity, ambient temperature and grouping |
| Trip curve | B / C / D | Choose for load inrush and required fault-clearing performance, not by current alone |
| Breaking capacity | 10kA | Confirm against the prospective short-circuit current at the installation point |
| Pole arrangement | 1P+N / 2P / 3P / 3P+N / 4P | Match supply system and local switching or isolation rules |
| Installation interface | 67mm terminal-centre distance | Check enclosure, rail/base, terminal and conductor compatibility |
Breaking Capacity
10kA is the published product value. Confirm the prospective short-circuit current at the installation point.
Trip and Load Behaviour
B / C / D is the available trip/protection option. Match it to load inrush and required disconnection performance.
Pole Configuration
Available arrangement: 1P+N / 2P / 3P / 3P+N / 4P. Confirm which conductors must be switched and protected under local rules.
MCB or RCBO
An MCB does not replace residual-current protection where an RCD or RCBO is required.
Ordering Guide
- Specify the exact model: PXB6H-63.
- State the required current rating within 0.5A–63A.
- Confirm pole arrangement: 1P+N / 2P / 3P / 3P+N / 4P.
- Confirm trip or protection option: B / C / D.
- Provide system voltage, expected fault level, destination market, quantity and any document requirements.
Ordering Specification
Please specify the following when ordering:
- Product Model: PXB6H-63
- Number of Poles: 1P+N, 2P, 3P, 3P+N, 4P
- Rated Current & Tripping Curve: e.g., C/16A
- Tripping Curve (Type): B, C, D
- Rated Current (In): 0.5, 1, 1.6, 2, 2.5, 3, 4, 5, 6, 8,10, 13, 16, 20, 25, 32, 40, 50, 63A
- Quantity: e.g., 100 pcs
- PXB6H-63 2P C/16A 100 pcs
The quantity shown is an ordering example, not a minimum order quantity.
Installation and Coordination Checks
- Verify conductor material and cross-section against the circuit calculation and the published terminal range.
- Confirm the prospective short-circuit current does not exceed the applicable breaking rating.
- Check upstream/downstream coordination, enclosure temperature, grouping, altitude and required clearances.
- Installation, isolation, testing and maintenance must be carried out by qualified personnel under applicable rules.
Type designation

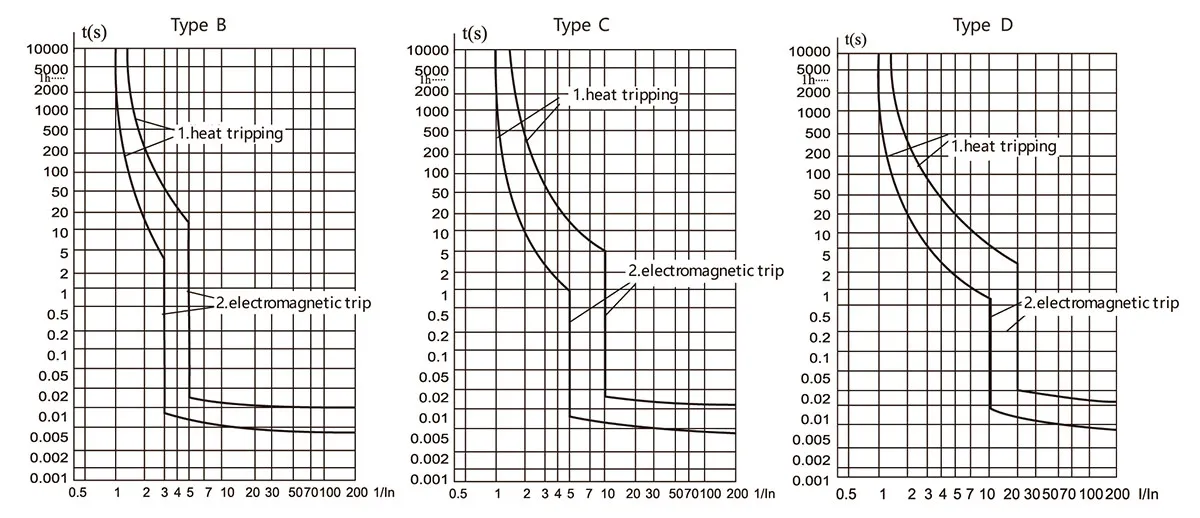

Tripping curves

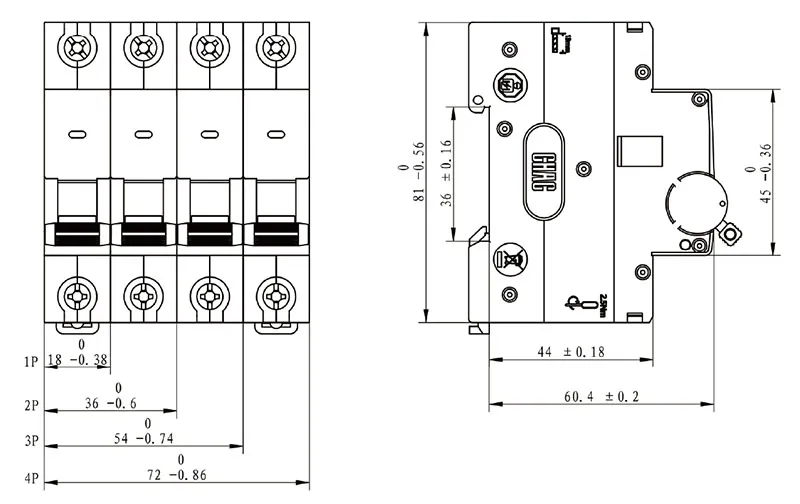

Dimensions(mm)
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Insulation Voltage (Ui) | 500V |
| Rated Impulse Withstand Voltage (Uimp) | 6000V |
| Rated Current (In) | 0.5,1,1.6,2,2.5,3,4,5,6,8,10,13,16,20,25,32,40,50,63A |
| Rated Frequency | 50Hz / 60Hz |
| Number of Poles | 1P+N,2P,3P,3P+N,4P |
| Rated Short-Circuit Breaking Capacity | 10000A |
| Mechanical Endurance | ≥20000 |
| Electrical Endurance | ≥10000 |
| Tripping curves | B,C,D |
| Terminal center distance | 67mm |
| Protection Class | IP20 |
| Standard | IEC60898 -1、GB/T10963.1; |
| Certification | CE · CB · CCC | DEKRA Certified |
Tripping Characteristics (Reference Temperature: 30°C)
| Item | Tripping Curve | Test Current (A) | Initial Status | Time limit for tripping or non-tripping | Expected result | Remarks |
|---|---|---|---|---|---|---|
| a | B、C、D | 1.13In | Cold | t≤1h | Non-tripping | Current smoothly rises to specified value within 5s |
| b | B、C、D | 1.45In | Following item a test | t＜1h | Tripping | |
| c | B、C、D | 2.55In | Cold | 1s＜t＜60s(In≤32A) 1s＜t＜120s(In>32A) |
Tripping | |
| d | B | 3In | Cold | t≤0.1s | Non-tripping | Switch on the power supply by closing the auxiliary switch |
| C | 5In | |||||
| D | 10In | |||||
| e | B | 5In | Cold | t＜0.1s | Tripping | Switch on the power supply by closing the auxiliary switch |
| C | 10In | |||||
| D | 20In |
Note: The term “cold” means that the test is carried out at a reference calibration temperature without load before the test.
Conductor requirements and cross section
| Copper cross-section(mm²) | Rated current In(A) |
|---|---|
| 1 | In≤6 |
| 1.5 | 6＜In≤13 |
| 2.5 | 13＜In≤20 |
| 4 | 20＜In≤25 |
| 6 | 25＜In≤32 |
| 10 | 32＜In≤50 |
| 16 | 50＜In≤63 |
Why Choose CHAC
With 30+ years of manufacturing experience, 1100+ employees, 100M+ poles
annual capacity and 90% automated production, CHAC provides stable production capacity and strict
quality control for global OEM/ODM customers. Our in-house manufacturing system supports long-term
cooperation for electrical brands, importers and distributors.
30+
YEARS EXPERIENCE
Specialized in low-voltage electrical manufacturing
1100+
EMPLOYEES
Professional team ensures stable quality and delivery
100M+
POLES ANNUAL CAPACITY
Large-scale production capacity to meet global demand
90%
AUTOMATED PRODUCTION
Advanced automation for high efficiency and consistency
Automated Assembly Line
Testing Laboratory
Injection & Stamping
Quality Inspection
Strict quality control system ensures every product meets global standards.
What Can We Customize?
For PXB6H-63 projects, CHAC can review private-label marking, packaging, appearance, available electrical configurations and technical-document requirements. Requests outside the published range are subject to engineering evaluation, testing, MOQ and project feasibility.
Logo & Branding
Private-label marking and nameplate options are subject to artwork review and sample approval.
Packaging
Customization
Cartons, labels and manuals can be prepared for the approved order specification and destination market.
Electrical
Customization
Select from the published 0.5A–63A, 1P+N / 2P / 3P / 3P+N / 4P and B / C / D options; non-standard requests require technical evaluation.
Product
Appearance
Appearance options can be reviewed subject to tooling, MOQ, marking requirements and technical feasibility.
Certification
Support
Datasheets, drawings and verified certificate information are supplied for the applicable approved configuration.
Engineering
Development
Project support may include drawing review, sample evaluation, testing and production planning, subject to technical approval.
Download
PXB6 Series Miniature Circuit Breaker
Complete product overview for low-voltage electrical components and product selection reference.
Need Technical Documents?
Contact us for datasheets, certificates, drawings, selection guidance or OEM/ODM project support.
PXB6H-63 Product FAQ
What does 10kA mean on the PXB6H-63 MCB?
It is the published short-circuit breaking capacity, stated as 10kA. It is separate from the 0.5A–63A continuous rated-current options.
When should PXB6H-63 be specified as a 10kA MCB?
Use it when the prospective short-circuit current and coordination study require and remain within the verified 10kA duty. Do not choose it solely because a higher number appears preferable.
What does kA mean when selecting PXB6H-63?
kA represents thousands of amperes of short-circuit current that the device is rated to interrupt under stated test conditions. It is not a measure of everyday load capacity.
How much is 10kA in amperes?
10kA equals 10,000A, but this is a short-circuit value. PXB6H-63 normal rated-current choices remain 0.5A–63A and require conductor coordination.
What is the difference between a 10kA and 6kA breaker?
Their stated fault-interruption duties differ. Compare the prospective fault level, standard, Icu/Ics or Icn data, curve, poles and protection coordination before choosing a model.
What breaking capacity does a 6kA breaker provide?
A verified 6kA rating represents 6,000A under the applicable test definition. It may be suitable only where the installation fault level and coordination requirements are within that duty.
Confirm the Right PXB6H-63 Configuration
Send your current rating, pole arrangement, trip option, system voltage, prospective fault level, destination market and quantity. CHAC will review the request against the published product range.
