Start with the system duty, not the catalogue label
Industrial systems combine distribution, motor control, protection and environmental design. Specify the duty, enclosure, coordination and service plan as one system. Start by identifying whether the load is line-to-neutral, line-to-line or three-phase, then determine which conductors must open together. The device’s product standard and the installation code have different scopes; a component can be correctly tested yet still be wrong for a particular panel or disconnect function.
Check the rating against the load and fault level
For industrial electrical solutions, compare voltage, continuous current, utilization category, temperature, conductor ampacity and available fault current. Use the manufacturer’s time-current curve or test method, and document assumptions. Coordination with upstream and downstream protection limits nuisance outages; a larger rating can increase let-through energy or violate conductor protection.
Verify the installation before energizing
Use the listed enclosure or board, maintain required creepage and clearance, torque terminals to the published value, label circuits and verify de-energization. Commission with continuity, insulation or functional tests appropriate to the device, then measure loaded current and inspect for abnormal heat. Record instrument ID, date, readings and the person responsible.
Resolve installation details before they become failures
The most expensive failures are often boundary errors: wrong accessory voltage, unsupported substitution, polarity reversal, missing neutral, inadequate SCCR or a maintenance record that cannot prove torque. If a device trips, chatters or heats, isolate the circuit and gather evidence before resetting or replacing it. A short decision log prevents repeat call-outs and makes the next outage safer.
Keep the records that make maintenance predictable
Unit price is only one cost driver. Include engineering time, permits, planned outage, testing, labeling, spares and the consequence of an avoidable trip. Ask suppliers to identify assumptions and exclusions so an apparently cheaper alternative can be compared on equal scope. At handover, provide the approved submittal, marked-up single-line diagram, torque sheet, test readings, settings and maintenance interval. For critical loads, record the bypass or transfer sequence and the person authorized to reset the device. These records make future troubleshooting faster and give the authority having jurisdiction a clear evidence trail without relying on unsupported claims. Review the record at the next planned outage and update it when the circuit or operating profile changes. Keep photos of labels and terminations with the revision date; they often resolve disputes faster than memory. Include the responsible reviewer and next review date so the file remains actionable.
Compare evidence that can be checked
| Dimension | What to compare | Evidence to retain |
|---|---|---|
| Performance | industrial electrical solutions versus alternatives | Rating plate and curves |
| Compatibility | Voltage, poles, enclosure and accessories | Listing and submittal |
| Maintenance | Inspection, torque and functional test | Commissioning log |
| Total cost | Device, outage, testing and spares | Scope and risk register |
Let the application set the priority
| Scenario | Priority decision | Record |
|---|---|---|
| New installation | Load, fault level and listing | One-line and calculation |
| Replacement | Dimensions, terminals and compatibility | As-built and torque sheet |
| Harsh or critical site | Environment, selectivity and access | Inspection and contingency plan |
Match the equipment to the adopted standard
industrial electrical solutions; motor control; power distribution; environmental protection; load protection Standards are not blanket certification claims: confirm the edition adopted by the destination market, the AHJ and the complete assembly. Unsupported ratings or listing language can cause rejection, rework and unsafe operation.
- UL 489 and UL 508 where North American listing scope applies.
- IEC 60947 series for low-voltage switching and protection equipment.
- NFPA 70 or the destination installation code for conductor, spacing and permit rules.
Turn the review into a procurement decision
- Capture the load, system voltage, conductor data, environment and available fault current.
- Match the product standard, listing, accessory, terminal and enclosure requirements.
- Ask for curves, installation instructions, torque values and a test plan; label illustrative calculations.
- Plan outage controls, permits, spares and maintenance records before release.
CHAC Electric can support documented sourcing through its industrial electrical solutions, industrial circuit protection and related distribution equipment. Request a review when the application has unusual fault, environmental or coordination constraints.
Reliable motor control and power distribution depend on the same environmental, coordination and maintenance evidence.

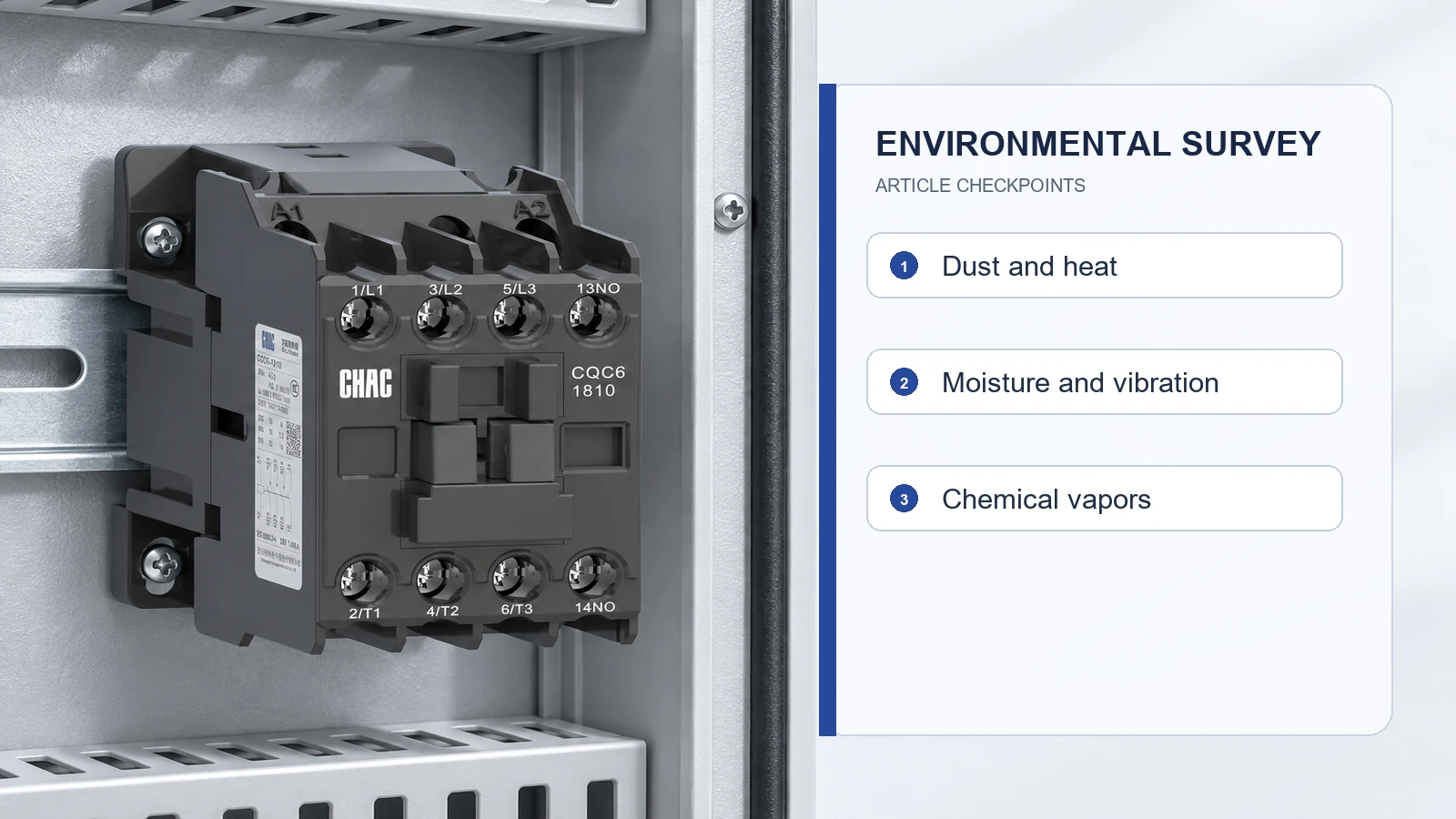

How environmental exposure changes industrial protection
Dust, heat, moisture, vibration and chemical vapors can shorten insulation and mechanism life even when the electrical rating is correct. Specify the enclosure and terminal protection, derating assumptions, cleaning interval and condition-monitoring method with the device schedule. A short environmental survey before purchase often prevents repeated nuisance trips and premature replacement.
Turn an industrial distribution review into an installable scope
A useful industrial electrical solution starts with a one-line diagram and a load list. Record the supply voltage, phase arrangement, continuous and starting current, prospective fault current, ambient conditions and enclosure location before comparing devices. That evidence lets the panel builder distinguish a feeder breaker, motor branch and control circuit instead of applying one catalogue family to every duty.For the product shortlist, review CHAC’s industrial electrical distribution equipment together with the relevant MCCB range. Keep the third core term, industrial protection coordination, tied to the time-current study and the adopted installation rules; a catalogue description alone does not prove selectivity.A gap often missed in supplier comparisons is the handover package. Ask for the final wiring diagram, torque data, terminal limits, revision-controlled datasheet, test record and maintenance interval for the exact catalogue number. This makes commissioning and future replacement auditable without implying that a component certificate approves the complete installation.
Answers to common buyer questions
What electrical systems are used in industrial environments?
The practical answer depends on the industrial electrical solutions application, equipment marking and installation conditions. Verify the relevant standard and have a qualified person document the decision before energizing.
What is included in an industrial electrical solution?
The practical answer depends on the industrial electrical solutions application, equipment marking and installation conditions. Verify the relevant standard and have a qualified person document the decision before energizing.
How do motor control and power distribution work together?
Start with the industrial electrical solutions nameplate, circuit conditions and adopted code, then verify conductor ampacity, fault level and compatibility. Follow the manufacturer’s instructions and retain the calculation or test.
How do you select protection for industrial loads?
Start with the industrial electrical solutions nameplate, circuit conditions and adopted code, then verify conductor ampacity, fault level and compatibility. Follow the manufacturer’s instructions and retain the calculation or test.
What protection devices are used in industrial electrical systems?
The practical answer depends on the industrial electrical solutions application, equipment marking and installation conditions. Verify the relevant standard and have a qualified person document the decision before energizing.
How do environmental conditions affect industrial electrical equipment?
Start with the industrial electrical solutions nameplate, circuit conditions and adopted code, then verify conductor ampacity, fault level and compatibility. Follow the manufacturer’s instructions and retain the calculation or test.
What should an industrial electrical distribution design review cover?
It should cover the one-line diagram, load schedule, conductor ampacity, available fault current, protection coordination, enclosure environment, isolation method, commissioning tests and the records required for maintenance. The adopted local code and the exact equipment instructions control the final decision.
How do industrial buyers compare distribution equipment suppliers?
Compare model-specific ratings and test evidence, drawing and revision control, change-notification practice, spare-part support and the supplier’s ability to document the panel configuration. Unit price is only one part of lifecycle risk.
