CQM7DC Series Molded Case Circuit Breaker
Product Features
■ Zero Arc Chute Design
Features advanced arc extinguishing technology to effectively eliminate arcing hazards during disconnection, ensuring operational safety.
■ High Temperature Resistance
Operates reliably in ambient temperatures up to +50℃ without performance degradation, suitable for demanding environments.
■ Wide Current Range
Available in multiple current ratings from 63A to 1600A to meet various application requirements in solar, EV charging, and energy storage systems.
■ UL489 Compliance
Meets UL489 standard requirements, ensuring compliance with North American safety regulations and global market acceptance.
Type designation

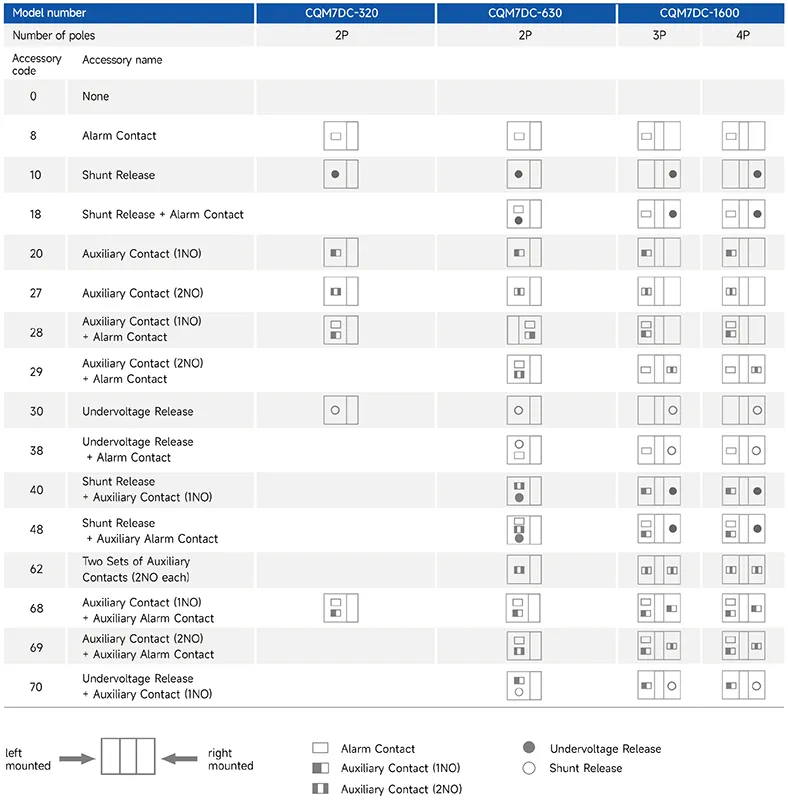

Accessory List
Note: Code 50:For models 125 and 160, a custom left-side undervoltage release is required. For model 250, a custom left-side shunt release is required.Optional voltage ranges for shunt/undervoltage releases:DC24V, DC110V, DC220V, AC230V, AC400V.Standard production voltage: AC230V.
Technical Specifications
| Parameter | CQM7DC-320 | CQM7DC-630 | CQM7DC-1600 |
| Rated Current (A) | 63, 80, 100, 125, 140, 160, 180, 200, 225, 250, 315, 320 | 225, 250, 320, 350, 400, 500, 630 | 800, 1000, 1250, 1500, 1600 |
| Number of Poles | 2P | 2P | 3P,4P |
| Rated Operational Voltage Ue DC (V) | 1500 | 1500 | 1500 |
| Rated Insulation Voltage Ui (V) | 1800 | 1800 | 1800 |
| Rated Impulse Withstand Voltage Uimp (kV) | 12 | 12 | 12 |
| Power Frequency Withstand Voltage (1 min) (kV) | 3.5 | 3.5 | 3.5 |
| Rated Ultimate Short-Circuit Breaking Capacity Icu | DC1200V DC1500V | DC750V DC1000V | DC750V DC1000V DC1200V DC1500V |
| Rated Service Short-Circuit Breaking Capacity Ics (kA) | 35kA 20kA | 85kA 50kA | 50kA 30kA 15kA 10kA |
| Mechanical Life (operations) | 4000 | 4000 | 4000 |
| Electrical Life (operations) | 10000 | 10000 | 500 |
| Arc Chute Distance (mm) | 50 / 0 | 50 / 0 | 50 / 0 |
| Dimensions W×L×H (mm) | 90×215×136 | 110×275×152 | 3P: 210×340×244 4P: 280×340×244 |
| Instantaneous Trip Setting | 5In or 10In | 5In or 10In | 5In or 10In |
| Reference Ambient Temperature (℃) | 50 | 50 | 50 |
