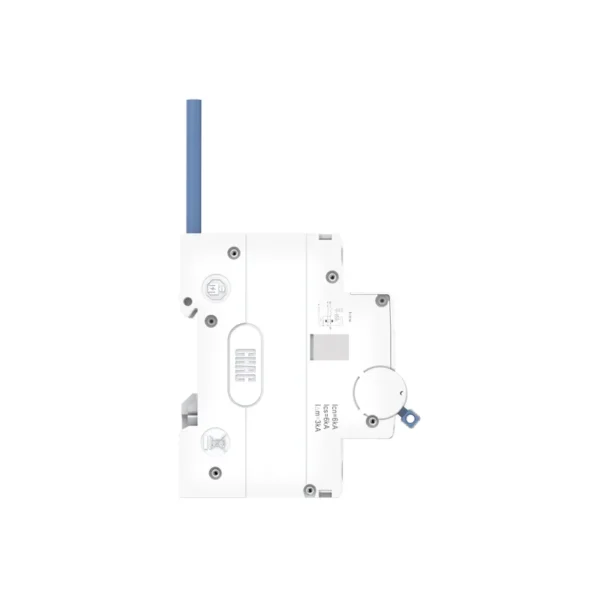

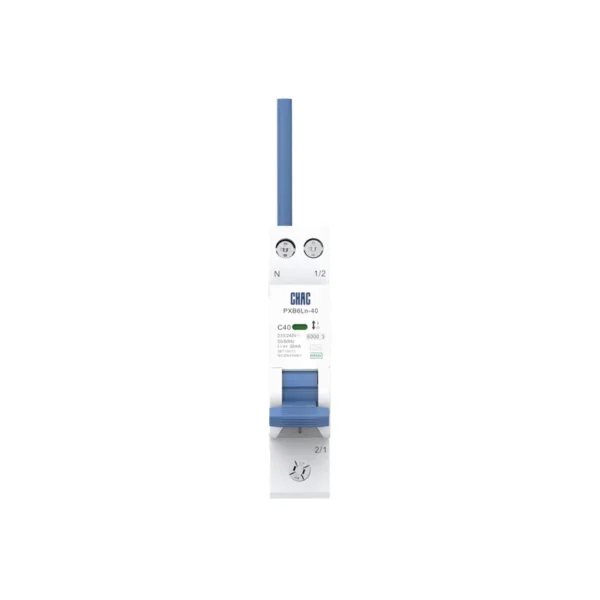

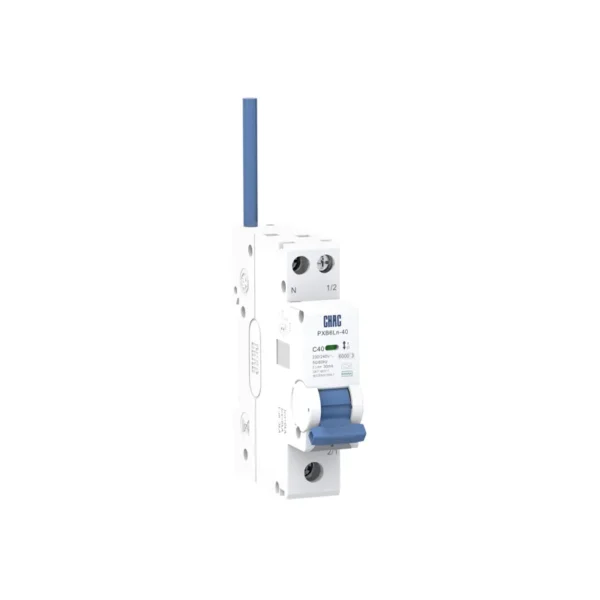

PXB6Ln-40 Electronic Residual Current Operated Circuit-Breaker with Overcurrent Protection

The CHAC PXB6Ln-40 electronic RCBO brings overcurrent and residual-current protection together in a compact 1P+N configuration. It offers 6–40A ratings, B/C curves and Type AC/A options for circuits operating at 230/240V AC.

Poles:
1P+N
Rated Current:
6 / 10 / 16 / 20 / 25 / 32 / 40A
Rated Voltage:
230 / 240V AC
Rated Residual Current:
10 / 30 / 100mA; Type AC / Type A
Breaking Capacity:
6kA (Icn = Ics)
Tripping Curve:
B / C
Standard:
IEC 61009-1 / GB/T 16917.1
Customization:
One-Stop OEM/ODM Service

Product Overview

The CHAC PXB6Ln-40 1P+N electronic RCBO brings overload, short-circuit and residual-current protection into one device for 230/240V AC circuits. Its compact phase-and-neutral arrangement covers 6–40A, with B/C curves and Type AC/A residual-current options.

For importers, distributors and equipment manufacturers, CHAC can review the requested configuration against the circuit requirements and destination-market documents. Agree the exact model, drawings and marking requirements before sample approval or a repeat order.

Key Selection Points

  • Supply arrangement: 1P+N; 230/240V AC; 50/60Hz. Confirm the terminal diagram and the required neutral arrangement.
  • Current and curve: 6/10/16/20/25/32/40A; B or C. Match cable ampacity and load inrush.
  • Residual-current options: Type AC or A; 10/30/100mA. Specify the detection type and mA value for the protected circuit.
  • Short-circuit rating: Icn = Ics = 6000A. Verify the prospective fault current at the actual installation point.

Typical Applications

Use PXB6Ln-40 for single-phase branch circuits where the design requires both overcurrent and residual-current protection. Confirm panel fit and the neutral arrangement when replacing an MCB; similar front dimensions do not prove wiring compatibility.

Applications and Selection Guide

Selection item PXB6Ln-40 configuration What to verify
Supply arrangement 1P+N; 230/240V AC; 50/60Hz Confirm the terminal diagram and the required neutral arrangement.
Current and curve 6/10/16/20/25/32/40A; B or C Match cable ampacity and load inrush.
Residual-current options Type AC or A; 10/30/100mA Specify the detection type and mA value for the protected circuit.
Short-circuit rating Icn = Ics = 6000A Verify the prospective fault current at the actual installation point.

Use these checks to compare the protection function, configuration and related CHAC products before specifying PXB6Ln-40. Related products are selection alternatives or system components, not automatic replacements.

Check the neutral arrangement during replacement

Confirm line/load markings, the neutral terminal arrangement and the panel wiring before approving a replacement.

SelectionConfigurationTechnical Review

Compare PXB6-40 for the required function

The CHAC PXB6-40 miniature circuit breaker provides overload and short-circuit protection with simultaneous phase and neutral disconnection. Its compact 1P+N design covers 6–40A at 230/240V AC, with B/C/D curves for selection according to load characteristics.

Related ProductSystem DesignVerify Compatibility

Compare PXB6LE-63 for the required function

The CHAC PXB6LE-63 electronic RCBO combines overload, short-circuit and residual-current protection in one device. Choose from four pole arrangements, B/C/D curves and Type AC/A sensitivities to match the circuit, with rated currents from 6A to 63A.

Related ProductSystem DesignVerify Compatibility

Need Help Specifying PXB6Ln-40?

Send the circuit requirements, selected configuration, destination market and quantity for a model-specific review.

Request a Quote

Choose the RCBO when leakage protection is required

The PXB6-40 MCB and PXB6Ln-40 RCBO perform different protection roles. The RCBO adds residual-current detection, so the procurement specification must include the leakage type and sensitivity as well as the current and curve.

Check the neutral arrangement during replacement

Confirm line/load markings, the neutral terminal arrangement and the panel wiring before approving a replacement. Avoid shared-neutral assumptions across circuits, and follow the installation and test instructions for the exact RCBO.

How to Specify a PXB6Ln-40 Order

Use the configuration details below in the purchase specification. Keep the approved drawing revision and product identification with the order so repeat deliveries can be checked consistently.

Order detail Information to include
Supply arrangement 1P+N; 230/240V AC; 50/60Hz — Confirm the terminal diagram and the required neutral arrangement.
Current and curve 6/10/16/20/25/32/40A; B or C — Match cable ampacity and load inrush.
Residual-current options Type AC or A; 10/30/100mA — Specify the detection type and mA value for the protected circuit.
Short-circuit rating Icn = Ics = 6000A — Verify the prospective fault current at the actual installation point.
Project and documents Supply the application, installation conditions and destination-market document requirements.
Quantity and identification State the quantity, sample requirement, packaging language and any proposed branding; confirm feasibility before approval.

Check Installation Fit Before Approval

  • Use the PXB6Ln-40 dimension drawing to verify mounting, terminal access, operating clearance and conductor bending space.
  • Confirm conductor preparation, terminal compatibility and tightening instructions for the exact configuration. A conductor reference table does not replace project cable sizing.
  • Review temperature, enclosure conditions and the protective arrangement with the equipment designer. Do not infer compatibility from a similar model name.
  • Have qualified personnel install and verify the equipment using the model instructions and applicable isolation and testing procedures.

Technical Specifications

Parameter
Rated Voltage 230/240V
Rated Insulation Voltage(Ui) 400V
Rated Impulse Withstand Voltage (Uimp) 4000V
Rated Current (In) 6、10、16、20、25、32、40
Rated Residual Operating Current(IΔn) 10、30、100mA
Residual Current Trip Type AC type、A type
Rated Frequency 50/60Hz
Number of Poles 1P+N
Rated Short-Circuit Breaking Capacity (Icn = Ics) 6000A
Mechanical Endurance ≥10000
Electrical Endurance ≥4000
Instantaneous Tripping Type B、C
Grid Spacing 50mm
Degree of Protection IP 20
Standards Compliance IEC61009-1, GB/T 16917.1
Certification CE CB CCC |DEKRA Certified

Tripping Characteristics (Reference Temperature: 30℃)

Item Tripping Curve Test Current (A) Initial Status Time limit for tripping or non-tripping Expected result Remarks
a B、C 1.13In Cold t≤1h Non-tripping Current smoothly rises to specified value within 5s
b B、C 1.45In Following item a test t<1h Tripping
c B、C 2.55In Cold 1s<t<60s(In≤32A)
1s<t<120s(In>32A)
Tripping
d B 3In Cold t≤0.1s Non-tripping Switch on the power supply by closing the auxiliary switch
C 5In
e B 5In Cold t<0.1s Tripping Switch on the power supply by closing the auxiliary switch
C 10In

Note: The :erm “cold” means that the test is carried out at at a reference calibration temperature without load before the test.

Conductor requirements and cross section

Copper cross-section(mm²) Rated current In(A)
1 In≤6
1.5 6<In≤13
2.5 13<In≤20
4 20<In≤25
6 25<In≤32
10 32<In≤40

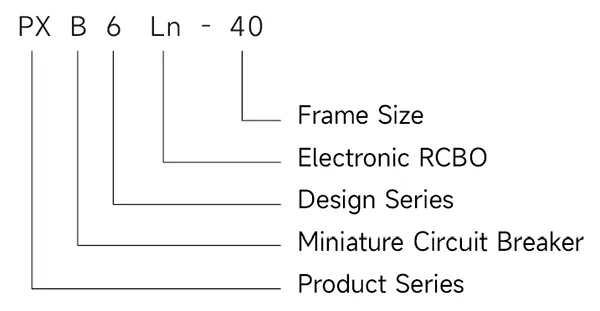

Type designation

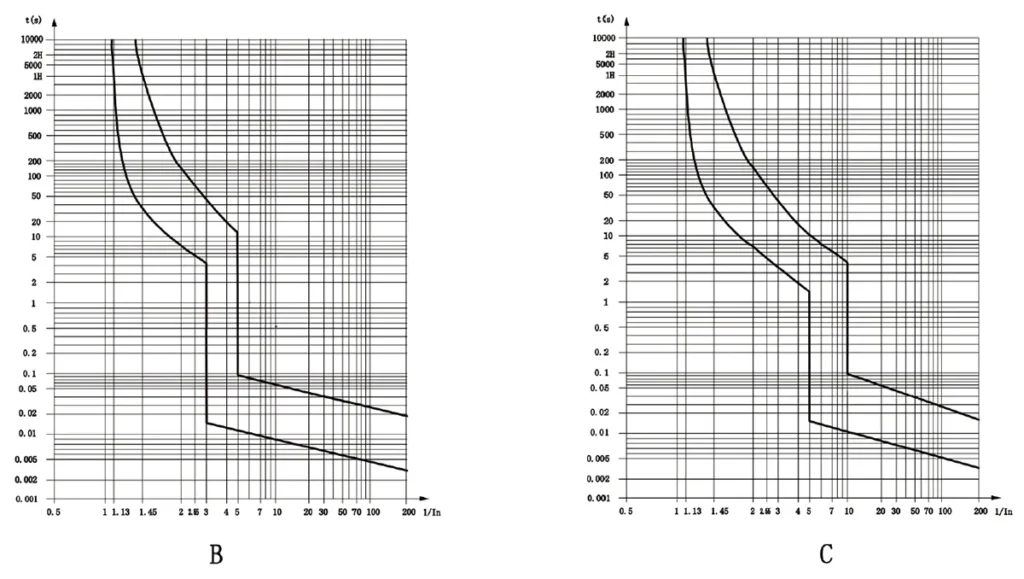

Tripping curves

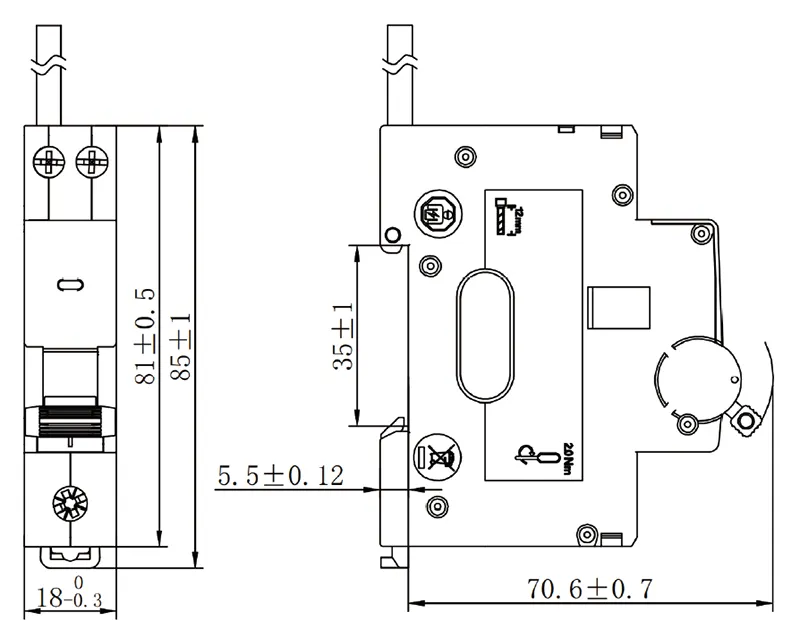

Dimensions(mm)



Why Choose CHAC

CHAC Electric supplies electrical protection and control products for importers, distributors and equipment brands. For PXB6Ln-40, agree the configuration, technical documents, approved sample and identification requirements before production. The company facilities shown below provide company context, not a claim that every model uses the same production or test process.

01

CONFIRM THE SPECIFICATION

Agree the PXB6Ln-40 configuration, circuit duty and installation requirements.

02

REVIEW THE DOCUMENTS

Confirm model-specific drawings and destination-market requirements.

03

APPROVE THE SAMPLE

Record the accepted configuration and marking requirements.

04

DEFINE ORDER CHECKS

Agree packaging, identification and delivery requirements in the quotation.

CHAC Automated Assembly Line

Automated Assembly Line

CHAC Testing Laboratory

Testing Laboratory

CHAC Injection & Stamping

Injection & Stamping

CHAC Quality Inspection

Quality Inspection

What Can We Customize?

Discuss PXB6Ln-40 product identification, packaging and documentation with CHAC. Each proposed change is subject to technical feasibility, marking rules and approval of the exact order; no altered rating or certification is implied.

Logo & Branding

Submit logo artwork and marking requirements for review against the available print area and mandatory product markings.

CHAC PXB6Ln-40 product view

Packaging & Manuals

Define carton labels, packaging language, product identification and instruction requirements for the destination market.

CHAC PXB6Ln-40 product view

Configuration Selection

Specify PXB6Ln-40 with the required supply arrangement, operating conditions and protection duty. Confirm the complete order combination.

CHAC PXB6Ln-40 product view

Assembly Requirements

Provide the mounting and connection requirements for review. Changes to the housing, terminals or operating arrangement require engineering approval.

CHAC PXB6Ln-40 product view

Market Documentation

Request documents covering the exact PXB6Ln-40 model and destination market. A standard reference alone is not evidence of certification.

CHAC PXB6Ln-40 product view

Sample Approval

Agree the sample specification, drawing revision and acceptance criteria before confirming a production order.

CHAC PXB6Ln-40 product view

Technical Documents and Support

DOC

PXB6Ln-40 Technical Documents

Request the PXB6Ln-40 datasheet, configuration drawing, installation instructions and available model-specific market documents.Request Datasheet

SUP

Need Technical Documents?

Send the application, electrical requirements, assembly layout and destination market for configuration and document review.Contact Us

PXB6Ln-40 Product FAQ

Why use an RCBO instead of an MCB?

An RCBO combines overcurrent and residual-current protection. PXB6Ln-40 adds Type AC/A leakage detection to overload and short-circuit protection, whereas an ordinary MCB does not detect residual current.

What is the difference between 1P+N and 2P RCBOs?

The terms describe the conductor arrangement, but the switched and protected poles must be checked in the device documentation. PXB6Ln-40 is specified as 1P+N; do not assume it is electrically interchangeable with every 2P device.

Does PXB6Ln-40 offer a D curve?

The published PXB6Ln-40 options are B and C. Do not order a D-curve version by copying options from a different series. Request another suitable model if the design requires a different characteristic.

How should I choose the PXB6Ln-40 residual-current sensitivity?

Select the mA rating from the circuit purpose, equipment instructions and local requirements. Rated current in amperes is a separate specification. Confirm the exact PXB6Ln-40 sensitivity variant and its operating-time data rather than using a larger threshold to mask recurring trips.

Why can a PXB6Ln-40 installation trip repeatedly?

Possible causes include insulation faults, accumulated equipment leakage, incorrect neutral connections or an unsuitable protection type. Have a qualified person investigate the circuit and follow the device test instructions before changing the rating or replacing protection.

What should an importer include in a PXB6Ln-40 inquiry?

Specify poles, AC supply, rated current, residual-current type and sensitivity, plus the overcurrent curve if ordering an RCBO. Add the destination market, required documents, quantity and marking requirements so the quotation identifies the exact configuration.
