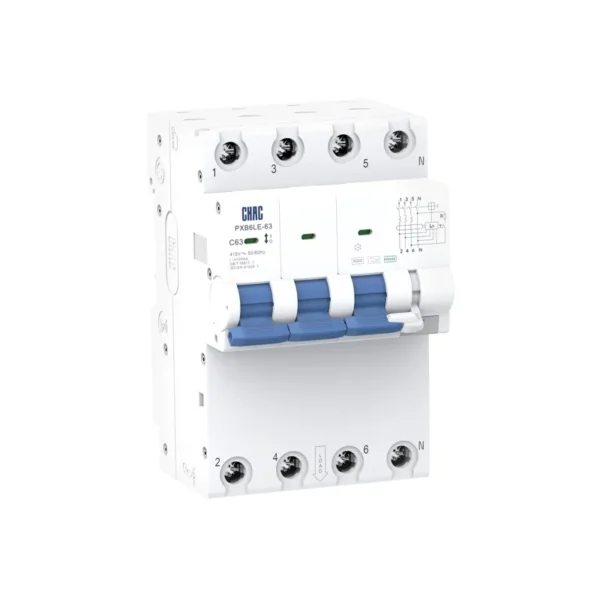

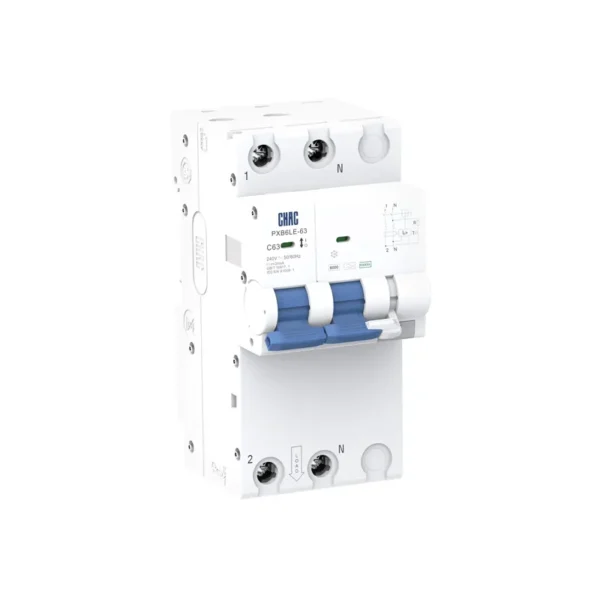

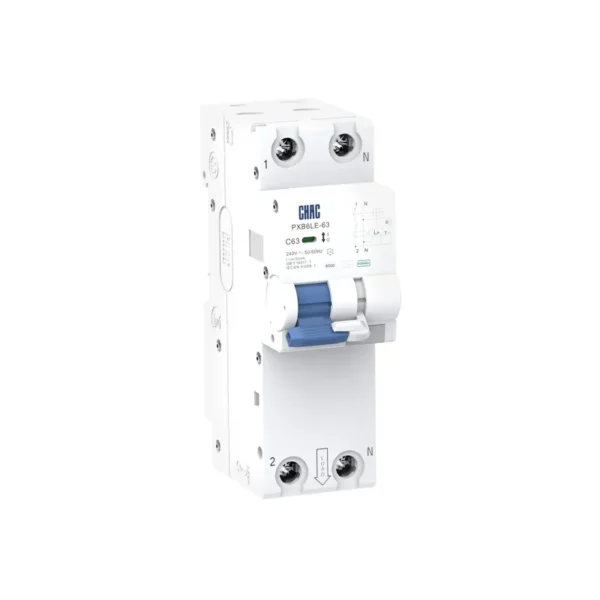

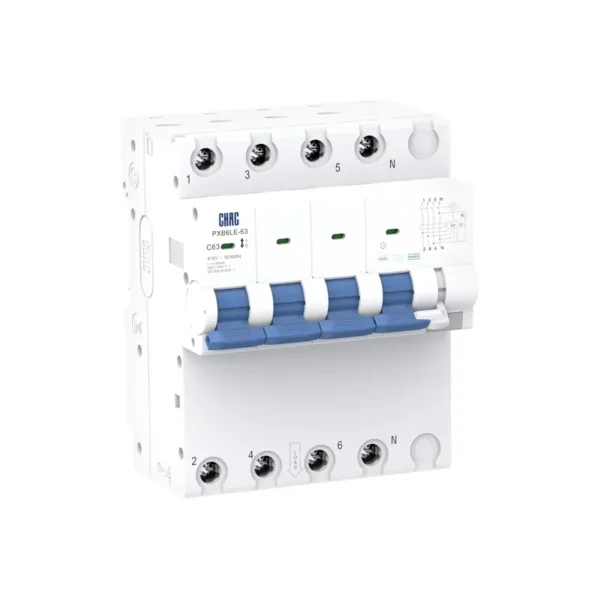

PXB6LE-63 Electronic Residual Current Operated Circuit-Breaker with Overcurrent Protection
The CHAC PXB6LE-63 electronic RCBO combines overload, short-circuit and residual-current protection in one device. Choose from four pole arrangements, B/C/D curves and Type AC/A sensitivities to match the circuit, with rated currents from 6A to 63A.
Product Overview
The CHAC PXB6LE-63 electronic RCBO combines overcurrent and residual-current protection. Choose Type AC or Type A detection, the required residual-current sensitivity and a B/C/D overcurrent curve as separate order details.
For importers, distributors and equipment manufacturers, CHAC can review the requested configuration against the circuit requirements and destination-market documents. Agree the exact model, drawings and marking requirements before sample approval or a repeat order.
Key Selection Points
Typical Applications
Consider PXB6LE-63 for AC final circuits that require both earth-leakage and overcurrent protection. Type selection depends on load electronics, expected fault waveforms and the installation rules; the highest current or sensitivity value is not automatically the right choice.
Applications and Selection Guide
| Selection item | PXB6LE-63 configuration | What to verify |
|---|---|---|
| Rated current | 6–63A | Match the load and conductor ampacity, including enclosure temperature and grouping. |
| Poles and voltage | 1P+N / 2P: 240V AC; 3P+N / 4P: 415V AC | Confirm the required neutral-switching and protection arrangement. |
| Residual-current protection | Type AC or A; 10/30/50/100/300mA | Specify detection type and sensitivity independently from rated current. |
| Overcurrent characteristic | B/C/D; listed Ics 6000A | Coordinate inrush and fault level rather than changing curve solely to avoid trips. |
Use these checks to compare the protection function, configuration and related CHAC products before specifying PXB6LE-63. Related products are selection alternatives or system components, not automatic replacements.
Specify the leakage type separately from the trip curve
Type A describes the residual-current waveform coverage; a C curve describes the overcurrent trip characteristic.
Investigate leakage before increasing sensitivity settings
Repeated residual-current trips may come from insulation defects, accumulated equipment leakage or wiring errors.
Compare PXB6Ln-40 for the required function
The CHAC PXB6Ln-40 electronic RCBO brings overcurrent and residual-current protection together in a compact 1P+N configuration. It offers 6–40A ratings, B/C curves and Type AC/A options for circuits operating at 230/240V AC.
Compare PXB6LE-63B for the required function
The CHAC PXB6LE-63B electronic RCBO combines overload and short-circuit protection with Type B residual-current protection. Available in 6–63A ratings and four pole arrangements, it offers B/C/D curves and residual-current sensitivities from 30mA to 300mA.
Need Help Specifying PXB6LE-63?
Send the circuit requirements, selected configuration, destination market and quantity for a model-specific review.
Specify the leakage type separately from the trip curve
Type A describes the residual-current waveform coverage; a C curve describes the overcurrent trip characteristic. An order such as Type A, C curve still needs a rated current, sensitivity and pole arrangement. Keeping these fields separate prevents ambiguous distributor orders.
Investigate leakage before increasing sensitivity settings
Repeated residual-current trips may come from insulation defects, accumulated equipment leakage or wiring errors. A higher mA threshold is not a routine cure. Have the circuit assessed and select protection that still meets the application and local requirements.
How to Specify a PXB6LE-63 Order
Use the configuration details below in the purchase specification. Keep the approved drawing revision and product identification with the order so repeat deliveries can be checked consistently.
| Order detail | Information to include |
|---|---|
| Rated current | 6–63A — Match the load and conductor ampacity, including enclosure temperature and grouping. |
| Poles and voltage | 1P+N / 2P: 240V AC; 3P+N / 4P: 415V AC — Confirm the required neutral-switching and protection arrangement. |
| Residual-current protection | Type AC or A; 10/30/50/100/300mA — Specify detection type and sensitivity independently from rated current. |
| Overcurrent characteristic | B/C/D; listed Ics 6000A — Coordinate inrush and fault level rather than changing curve solely to avoid trips. |
| Project and documents | Supply the application, installation conditions and destination-market document requirements. |
| Quantity and identification | State the quantity, sample requirement, packaging language and any proposed branding; confirm feasibility before approval. |
Check Installation Fit Before Approval
Technical Specifications
| Parameter | |
| Rated Voltage (V) | 240V~(1P+N、2P)/415V~(3P+N、4P) |
| Rated Current (A) | 6、10、16、20、25、32、40、50、63 |
| Number of Poles | 1P+N、2P、3P+N、4P |
| Rated Short-Circuit Breaking Capacity Ics(A) | 6000A |
| Rated Residual Operating Current IΔn(mA) | 10、30、50、100、300 |
| Rated Residual Non-Operating Current IΔno(mA) | 0.5IΔn |
| Rated Residual Make and Break Capacity IΔm(A) | 3000A |
| Residual Current Tripping Threshold | ≤0.1s |
| Residual Current Trip Type | AC Type、A Type |
| Mechanical Endurance | ≥6000 |
| Electrical Endurance | ≥4000 |
| Tripping curves | B、C、D |
| Pollution Degree | 2 |
| Protection Class | IP 20 |
| Installation Category | Ⅲ |
| Standards | IEC61009-1, GB/T16917.1 |
| Certification | CE CB CCC|DEKRA Certified |

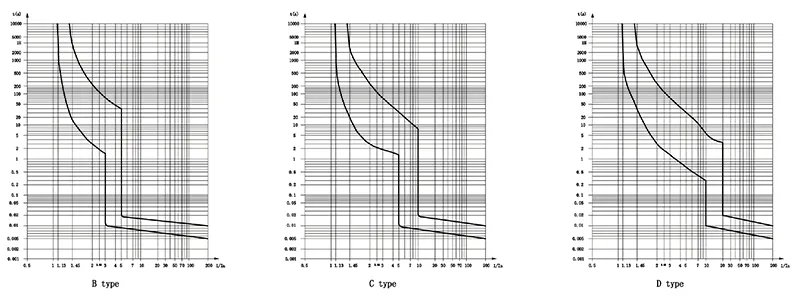

Tripping Characteristics (Reference Temperature: 30℃)
| Item | Tripping Curve | Test Current (A) | Initial Status | Time limit for tripping or non-tripping | Expected result | Remarks |
| Delay | ≤63 | Cold | 1.13In | ≤1h | Non-tripping | |
| Delay | ≤63 | Following previous test | 1.45In | <1h | Tripping | Current smoothly rises to specified value in 5s |
| Delay | ≤32 | Cold | 2.55In | 1<t<60s | Tripping | |
| Delay | >32 | Cold | 2.55In | 1<t<120s | Tripping | |
| Instantaneous | Any value | Cold | 3、5、10In | ≤0.1s | Non-tripping | B、C、D |
| Instantaneous | Any value | Cold | 5、10、20In | <0.1s | Tripping | B、C、D |
Note: The term “cold” means that the test is carried out at a reference calibration temperature without load before the test.
Conductor requirements and cross section
| Copper cross-section(mm²) | Rated current In(A) |
| 1 | In≤6 |
| 1.5 | 6<In≤13 |
| 2.5 | 13<In≤20 |
| 4 | 20<In≤25 |
| 6 | 25<In≤32 |
| 10 | 32<In≤50 |
| 16 | 50<In≤63 |

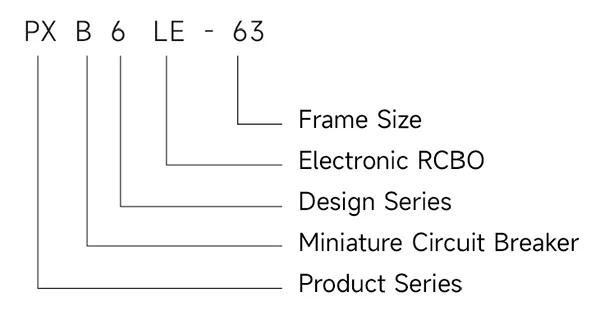

Type designation

Tripping curves

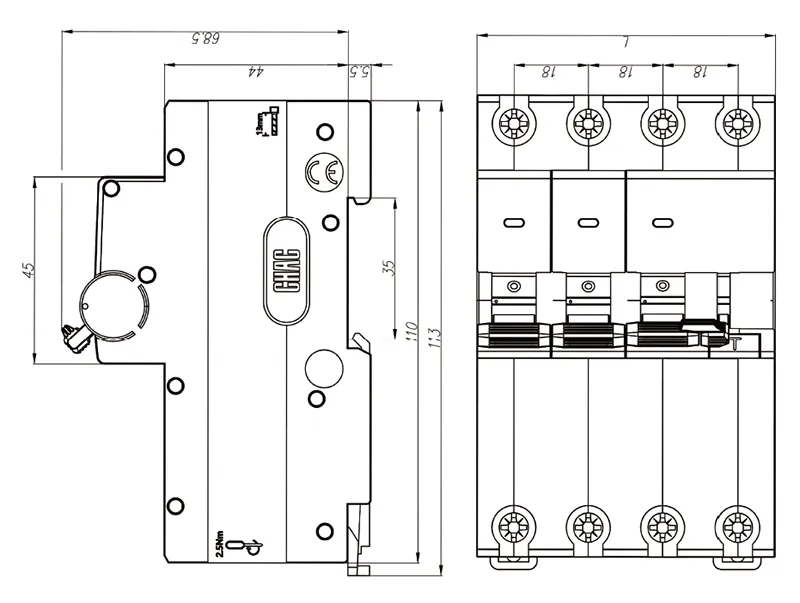

Dimensions(mm)
