When Elena, a panel-building procurement manager in Madrid, encountered repeated shutdowns on a renovated production line, she approved a like-for-like RCD replacement. The new unit tripped as soon as a second feeder was energized. Insulation and leakage-current tests reversed the initial diagnosis: shared neutrals, cumulative leakage, and poor coordination—not a defective device—were the causes.
Summary: Safe RCD wiring is a system decision. Route every live conductor of the protected circuit through one sensor, segregate downstream neutrals, and never use protective earth as a neutral. IEC 60364 specifies 30 mA RCDs as additional protection in particular contexts, not as a universal setting or a replacement for earthing and overcurrent protection. A qualified person must verify the installed circuit with instruments; the test button alone is insufficient.
RCD is the broad term for a residual-current device. An RCCB usually provides residual protection without integral overcurrent protection; an RCBO combines both functions. Commercial labels such as “differential breaker” or “earth-leakage breaker” do not by themselves identify the protection provided. Read the product standard, function, poles, current rating, residual-current characteristic, and system conditions together.
For buyers comparing RCD diagrams and electrical safety standards, the question is whether device function, conductor arrangement, load behavior, and destination-market rules form one coherent system.
How Safe RCD Wiring Detects Fault Current
An RCD passes all live conductors through a summation current transformer. Outgoing and returning currents normally cancel; current returning by an unintended path creates a difference that can operate the release within defined thresholds and times.
Therefore, line and neutral in a single-phase circuit, or every phase and associated neutral in a multiphase circuit, pass through the same sensing arrangement. Protective earth is neither a circuit return nor a switched neutral and must never carry normal load current.
Regional names do not define included protection, waveform response, or approvals; record the device category and product standard.
An RCCB generally requires coordinated protection against overload and short circuit; an RCBO integrates those functions. Substituting one for the other can leave a protection gap or change enclosure space, coordination, labor, and total board cost.
| RCD marking | Protection provided | Safe wiring and protection check |
|---|---|---|
| RCD | General residual-current protection term | Use it as a category name; confirm the precise device class and product standard. |
| RCCB | Residual protection without integral overcurrent protection | Provide coordinated overload and short-circuit protection under IEC 61008-1. |
| RCBO | Residual and overcurrent protection | Confirm both functions, the poles, and the circuit rating under IEC 61009-1. |
| Type AC | Defined Type AC waveform response | Use only where the load, instructions, system, and applicable code allow it. |
| Type A | Also responds to defined pulsating DC residual current | Check the actual load waveform and any DC component. |
| Type F | Responds to specified frequency-mixed residual currents | Assess frequency-controlled equipment and IEC 62423 requirements. |
| Type B | Also covers defined smooth DC and further waveforms | Confirm the equipment instructions, supply system, and applicable code. |
RCD Wiring Rules That Prevent False Trips and Blind Spots
Why terminal markings must guide RCD installation
Follow the manufacturer’s wiring diagram. Connect supply and outgoing conductors to the identified line and load terminals unless the device is declared suitable for another orientation. Physical fit does not prove approval; the test circuit, electronics, indication, and coordination may depend on direction.
Use every required pole. A four-pole device on a three-phase-plus-neutral circuit normally monitors all four live conductors. Some products also use neutral for electronics or the test circuit. Follow documented torque, conductor, busbar, and enclosure requirements.
Keep each protected neutral with its own circuit
A neutral borrowed from another RCD group lets return current bypass the correct sensor. Interconnected neutral bars have the same effect. Because tripping may begin only when a second circuit is loaded, the error can resemble device failure. Identify and segregate each group’s live conductors and neutrals throughout the downstream branches.
Downstream neutral-to-earth connections can also divert current. Protective earth must remain continuous; an RCD is not permission to omit it. Earth-electrode performance and residual protection answer different questions, as this guide to commercial building ground resistance explains. Apply the installation rules for the actual supply and earthing arrangement rather than copying a residential diagram into an industrial board.
Control cumulative leakage when one device serves several circuits
One RCD can protect several circuits where permitted, but healthy leakage from filters, drives, power supplies, heaters, and long cables accumulates. To reduce unwanted tripping, BS 7671 calls for subdivision and limits expected downstream protective-conductor current to 30% of the RCD’s rated residual operating current. This is a standing-leakage design allowance, not a guaranteed trip point.
A leakage budget records declared or measured current for each load, adds cable and filter contributions, considers switching transients, and reserves margin for ageing and future additions. Missing data argues for measurement or more subdivision. This prevents a board passing an unloaded factory check but tripping after electronic loads are connected.
For business-critical boards, splitting circuits across RCBOs or smaller RCD groups can improve continuity and diagnosis. Compare panel space, labor, test points, spare strategy, leakage, and the cost of a common trip. This RCD wiring option is one configuration to evaluate, but the final architecture still depends on project documentation and verified operating conditions.
How RCD Type and Sensitivity Protect the Installation
30 mA additional protection is widely associated with personal protection because IEC 60364-4-41 specifies it for additional protection in particular applications and circumstances. It is not a universal value for every feeder, machine, earthing arrangement, or jurisdiction. Additional protection supplements, rather than replaces, basic protection, fault protection, protective earthing, bonding, insulation, enclosures, and correctly selected overcurrent devices.
Choose Type AC, A, F, or B only after considering the load’s residual-current waveform, supply system, manufacturer instructions, and code. Type A adds response to defined pulsating DC residual currents; Type F covers specified composite residual currents associated with certain single-phase frequency-controlled equipment; Type B extends coverage to defined smooth DC and other waveforms. The correct choice follows the expected fault signature, not a simple good-better-best ladder.
Accumulated leakage and DC residual current are different risks. Healthy AC leakage from many filters can add up and cause unwanted tripping, while DC residual current can bias an unsuitable device’s sensing core and reduce its response—often called RCD blinding. Drives, EV chargers, UPS systems, and photovoltaic equipment may require a particular RCD type, built-in residual direct-current detection, or another coordinated measure. Type A is not automatically suitable for every single-phase load, nor is Type B mandatory for all electronics; use the equipment maker’s residual-current data and the applicable rules.
Where RCDs are in series, a coordinated, often time-delayed upstream device may let the unit nearest the fault operate first. Discrimination requires compatible time-current bands, residual settings, device types, and manufacturer data; a larger upstream value alone proves nothing. Time delay also cannot replace instantaneous 30 mA protection where required. Confirm that delay is allowed for the circuit and protective measure.
The test button checks an internal path and release mechanism; it is not commissioning evidence. It cannot prove protective-conductor continuity, insulation resistance, polarity, disconnection time, operating current, or neutral segregation. Under IEC 60364-6, BS 7671, or local rules, a qualified tester follows the prescribed sequence with calibrated instruments. Verification may include continuity and insulation tests plus RCD trip-time or ramp testing at defined currents, with results tied to the circuit schedule.
How RCD Wiring Standards Support Safe Protection
IEC 60364-4-41 addresses protection against electric shock in low-voltage installations, including circumstances in which RCD additional protection is required. IEC 60364-6 addresses initial and periodic verification. These are installation standards, not product certificates and not a universal substitute for national wiring rules. Countries may adopt them with modifications, transition periods, or additional requirements.
BS 7671 is the United Kingdom’s national wiring standard and is based substantially on the IEC 60364 series, with UK-specific provisions and amendments. A specification should cite the edition and amendment actually adopted for the project; writing “IEC 60364/BS 7671 compliant” without a defined installation scope, design record, and verification evidence is too vague for procurement.
IEC 61008-1 covers general requirements for RCCBs without integral overcurrent protection, while IEC 61009-1 covers RCBOs with integral overcurrent protection. IEC 62423 addresses Type F and Type B RCDs where relevant. A stated standard should be supported by evidence appropriate to the claim; a familiar form factor or printed type symbol is not evidence by itself.
For the United States, NEC Article 210.8 addresses GFCI protection for specified locations and applications. GFCI and IEC-style RCD terminology overlap in purpose but should not be treated as interchangeable product categories, ratings, or approval paths. For a cautious comparison, see this overview of differential circuit breaker terminology, then confirm the adopted NEC edition, local amendments, listed equipment requirements, and authority having jurisdiction.
Unsupported standards or certification claims can cause bid rejection, customs or inspection delays, redesign, and liability exposure. The project record should identify the exact standard edition claimed, applicable test or certification documentation, product markings, instructions, and traceability. Compliance must be matched to the destination market, installation type, intended use, and the language used in the technical documentation.
How Qualified Testing Verifies Safe RCD Wiring
Begin with a single-line diagram and load inventory. Identify supply characteristics, earthing arrangement, live conductors, fault conditions, overcurrent protection, electronic loads, and continuity needs. Add a leakage-current budget and a residual-waveform review before comparing one RCCB with coordinated breakers against separate RCBOs. For series devices, require documented selectivity rather than assuming that a time delay or higher setting will coordinate them.

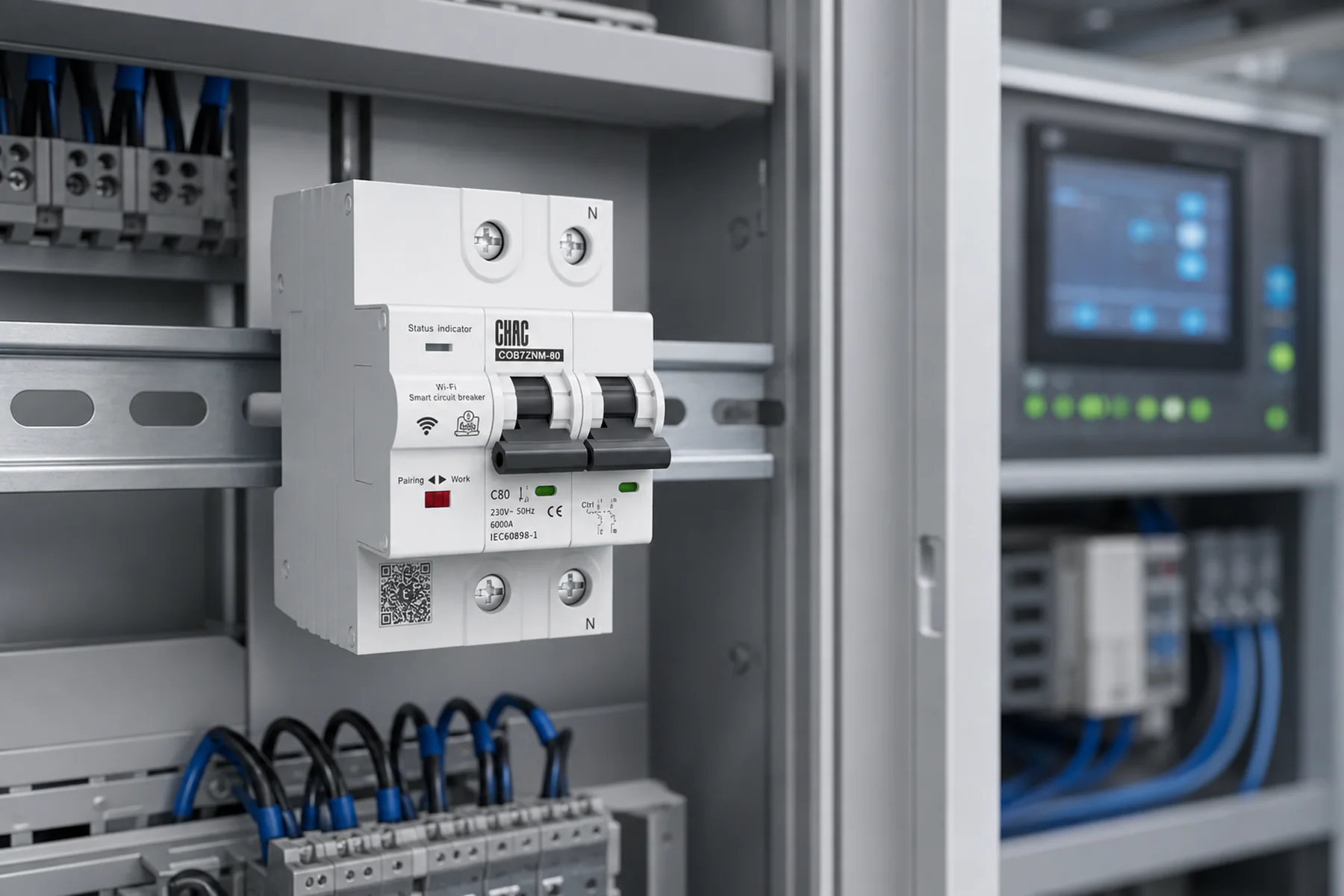

Before installation, confirm the device category, poles, rated current, rated residual operating current, residual-current type, applicable standard, and required upstream protection. Keep the wiring diagram, line/load restrictions, neutral requirements, DC-leakage limitations, environmental limits, terminal data, selectivity information, and evidence for compliance claims with the project record. CHAC Electric’s electrical distribution equipment range can be assessed as part of this system-level review.
| Stage | Question to close | Required evidence or action |
|---|---|---|
| Design | Which conductors and circuits are inside the protected zone? | Approved single-line and wiring diagrams showing line, neutral, earth, and bonding arrangements. |
| Selection | Is the device an RCCB, RCBO, or another residual-current product? | Exact product standard, protection functions, poles, current rating, residual setting, and type. |
| Load review | What residual-current waveforms and normal leakage may occur? | Equipment data, DC-leakage review, cumulative leakage budget, and circuit grouping decision. |
| Coordination | Will the nearest device operate while upstream supply remains available? | Residual-current and time data, overcurrent coordination, and any permitted time delay. |
| Installation | Are all live conductors routed through the correct sensor with neutrals separated? | Qualified inspection, terminal checks, conductor identification, and torque records where required. |
| Verification | Does the completed installation meet the required protective performance? | Functional test-button check plus calibrated instrument tests and documented IEC 60364-6, BS 7671, or local-code results. |
| Documentation | Can every standards and product claim be substantiated? | Instructions, declarations, reports or certificates as applicable, traceability, and destination-market review. |
Qualified personnel should work with the circuit isolated, proved dead, and controlled under the site safety procedure. Design documents, manufacturer instructions, and local law take priority over generic guidance.
RCD Wiring and Protection Questions
How should an RCD be wired?
Connect it according to the manufacturer’s line/load diagram, routing every live conductor of the protected circuit through the same residual-current sensor. Keep downstream neutrals separated, keep protective earth outside the normal current path, and have a qualified person inspect and instrument-test the completed installation.
Does an RCD test button work?
Yes, the test button should operate the RCD through its internal test circuit when the device is energized and wired as its instructions require. That result indicates the internal test path and release mechanism responded; it does not prove correct line and neutral routing, protective-conductor continuity, insulation resistance, trip time, trip current, or neutral separation. A non-operating button needs investigation by a qualified person, and a working button must be followed by the specified instrument tests and documented results.
Where is RCD protection required?
Requirements depend on the adopted installation code, circuit, location, intended use, and earthing system. IEC 60364-4-41 includes additional-protection requirements in particular contexts, while NEC 210.8 identifies specified GFCI applications in the United States; always check the locally adopted edition and amendments.
What safety rules apply when RCD wiring is tested?
A widely used five-rule sequence is: disconnect completely, secure against reconnection, verify absence of voltage, carry out earthing and short-circuiting where required, and protect against adjacent live parts. Exact wording and applicability vary by jurisdiction and work procedure, so trained personnel should follow the site’s authorized rules and legal requirements.
Does an RCD need a neutral connection?
It depends on the circuit and device. A line-to-neutral protected circuit routes its neutral through the RCD, and some electronic or test circuits require a neutral connection; a circuit with no neutral may use a suitably designed device without one. Follow the specified wiring diagram and never use protective earth as a neutral substitute.
Can one RCD protect multiple circuits?
Yes, where the installation rules and design permit, provided all associated live conductors are correctly routed and downstream neutrals remain segregated. However, aggregate leakage can cause nuisance trips, and one operation disconnects every circuit in the group, so RCBOs or smaller groups may improve continuity and fault location.
RCD Wiring Standards References
- IEC, IEC 60364-4-41, Low-voltage electrical installations – Protection for safety – Protection against electric shock, and IEC 60364-6, Low-voltage electrical installations – Verification.
- IEC, IEC 61008-1, RCCBs without integral overcurrent protection – General rules.
- IEC, IEC 61009-1, RCBOs with integral overcurrent protection – General rules, and IEC 62423, Type F and Type B residual current operated circuit-breakers.
- IET, BS 7671, Requirements for Electrical Installations, including current amendment information.
- NFPA, NFPA 70, National Electrical Code, including Article 210.8 subject to the adopted edition.
The durable principle is simple: residual-current protection works only when device capability, conductor routing, coordination, and verification agree.
