CQHS SERIES PV Combiner Box

The CHAC CQHS PV DC combiner box combines photovoltaic string inputs with a DC isolator for DC-side disconnection. Choose from six input/output configurations to match your PV array layout, and confirm the voltage and current ratings for the selected model.

Input / Output Configurations:
1 in / 1 out; 2 in / 1 out; 3 in / 1 out; 2 in / 2 out; 4 in / 2 out; 6 in / 2 out
Models:
CQHS-1/1, CQHS-2/1, CQHS-3/1, CQHS-2/2, CQHS-4/2, CQHS-6/2
Maximum System Voltage:
1000V DC
Maximum Output Current:
32A
Isolation Device:
DC isolator
Enclosure:
Polycarbonate (PC); IP65; IK09
Installation:
Wall mounting
Standard Reference:
IEC/EN 60947-3

Product Overview

The CHAC CQHS PV combiner box combines string inputs with a DC isolator, surge protection and fuse components. Its six listed input/output configurations help buyers match the enclosure arrangement to the PV string plan and inverter inputs.

For importers, distributors and equipment manufacturers, CHAC can review the requested configuration against the circuit requirements and destination-market documents. Agree the exact model, drawings and marking requirements before sample approval or a repeat order.

Key Selection Points

  • Input/output choice: 1/1, 2/1, 3/1, 2/2, 4/2 or 6/2. Confirm the wiring and MPPT grouping for the exact model.
  • Series ratings: 1000V DC; maximum output current 32A as specified. Check the exact output duty and component limits; do not select by total array power alone.
  • Main switching device: CQDS-32 DC isolator. Distinguish isolation from automatic breaker protection.
  • Enclosure: PC; IP65 / IK09; wall mounting. Match cable glands, sealing, mounting position and service access to the installation.

Typical Applications

Consider CQHS for residential or commercial PV DC assemblies where the design calls for an isolator-based combiner. Confirm the string grouping and protective-device schedule with the inverter requirements before approving the assembly.

Applications and Selection Guide

Selection item CQHS configuration What to verify
Input/output choice 1/1, 2/1, 3/1, 2/2, 4/2 or 6/2 Confirm the wiring and MPPT grouping for the exact model.
Series ratings 1000V DC; maximum output current 32A as specified Check the exact output duty and component limits; do not select by total array power alone.
Main switching device CQDS-32 DC isolator Distinguish isolation from automatic breaker protection.
Enclosure PC; IP65 / IK09; wall mounting Match cable glands, sealing, mounting position and service access to the installation.

Use these checks to compare the protection function, configuration and related CHAC products before specifying CQHS. Related products are selection alternatives or system components, not automatic replacements.

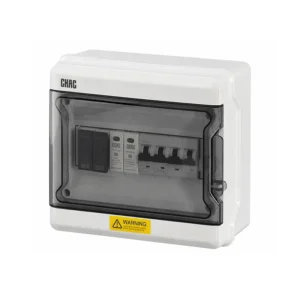

Review CQHD in the PV system

The CHAC CQHD PV DC combiner box combines photovoltaic string inputs with DC circuit-breaker protection. Choose from six input/output configurations to match your PV array layout, and confirm the voltage and current ratings for the selected model.

Related ProductSystem DesignVerify Compatibility

Review CQDS-32 in the PV system

The CHAC CQDS-32 photovoltaic DC isolation switch provides isolation and infrequent switching between PV modules and inverters. Its non-polar design supports selected DC-PV1/DC-PV2 configurations up to 1200V DC and 32A; follow the wiring arrangement specified for the chosen configuration.

Related ProductSystem DesignVerify Compatibility

Need Help Specifying CQHS?

Send the circuit requirements, selected configuration, destination market and quantity for a model-specific review.

Request a Quote

Keep separate MPPT circuits separate

Two outputs do not automatically establish any particular internal MPPT grouping. Provide the inverter input arrangement and string plan, then approve the exact CQHS wiring diagram. Do not combine strings that the inverter design requires to remain separate.

Confirm the component schedule for the selected box

The component information identifies the CQDS-32 isolator, CQDF-32 fuse holder and ExS-T2-DC SPD. Confirm the actual fuse links, SPD version, voltage and current limits for the ordered assembly. Component maximum ratings do not automatically become the assembled box rating.

How to Specify a CQHS Order

Use the configuration details below in the purchase specification. Keep the approved drawing revision and product identification with the order so repeat deliveries can be checked consistently.

Order detail Information to include
Input/output choice 1/1, 2/1, 3/1, 2/2, 4/2 or 6/2 — Confirm the wiring and MPPT grouping for the exact model.
Series ratings 1000V DC; maximum output current 32A as specified — Check the exact output duty and component limits; do not select by total array power alone.
Main switching device CQDS-32 DC isolator — Distinguish isolation from automatic breaker protection.
Enclosure PC; IP65 / IK09; wall mounting — Match cable glands, sealing, mounting position and service access to the installation.
Project and documents Supply the application, installation conditions and destination-market document requirements.
Quantity and identification State the quantity, sample requirement, packaging language and any proposed branding; confirm feasibility before approval.

Check Installation Fit Before Approval

  • Use the CQHS dimension drawing to verify mounting, terminal access, operating clearance and conductor bending space.
  • Confirm conductor preparation, terminal compatibility and tightening instructions for the exact configuration. A conductor reference table does not replace project cable sizing.
  • Review temperature, enclosure conditions and the protective arrangement with the equipment designer. Do not infer compatibility from a similar model name.
  • Have qualified personnel install and verify the equipment using the model instructions and applicable isolation and testing procedures.

Technical Data

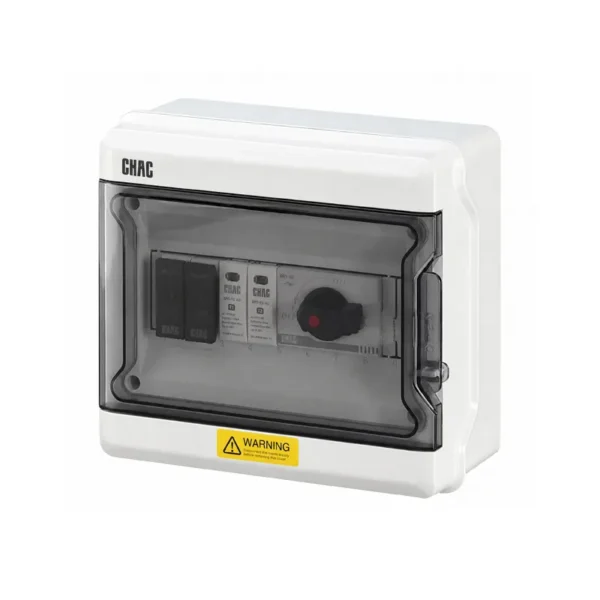

CQHS-1/1 PV Combiner Box

Specification

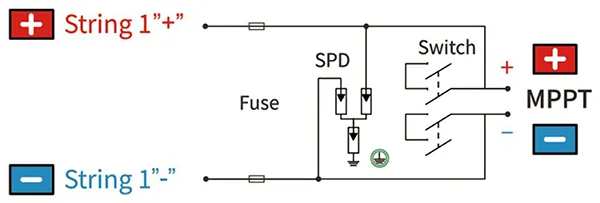

  CQHS-1/1 Wiring diagram
Input 1 strings
Output 1 strings
Max Voltage 1000V
Max DC Short Circuit Current Per Input 16A(Changeable)
Max Current Output 32A
Enclosure
Material PC
Degree of Protection IP65
Impacts IK09
Dimensions DXAT-9;L218*W200*H100mm
Cable input Entry PG09 Cable Gland,2.5-16mm2
Output Cable Gland PG21,2.5-16mm2
Environment
Operating temperature -20℃ – +60℃
Humidity 99%
Altitude 2000M
Installation Wall Mounting

CQHS-2/1 PV Combiner Box

Specification

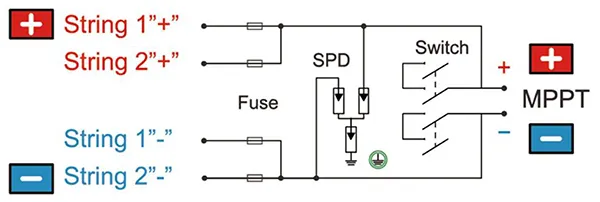

  CQHS-2/1 Wiring diagram
Input 2 strings
Output 1 strings
Max Voltage 1000V
Max DC Short Circuit Current Per Input 16A(Changeable)
Max Current Output 32A
Enclosure
Material PC
Degree of Protection IP65
Impacts IK09
Dimensions DXAT-13;L296*W230*H120mm
Cable input Entry PG09 Cable Gland,2.5-16mm2
Output Cable Gland PG21,2.5-16mm2
Environment
Operating temperature -20℃ – +60℃
Humidity 99%
Altitude 2000M
Installation Wall Mounting

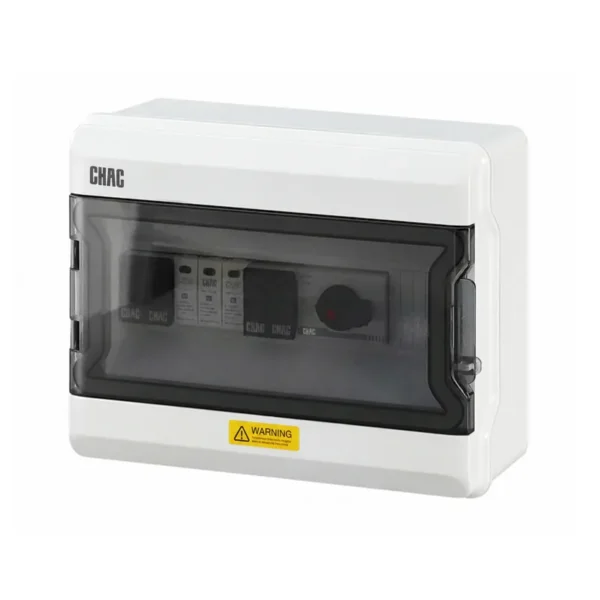

CQHS-2/2 PV Combiner Box

Specification

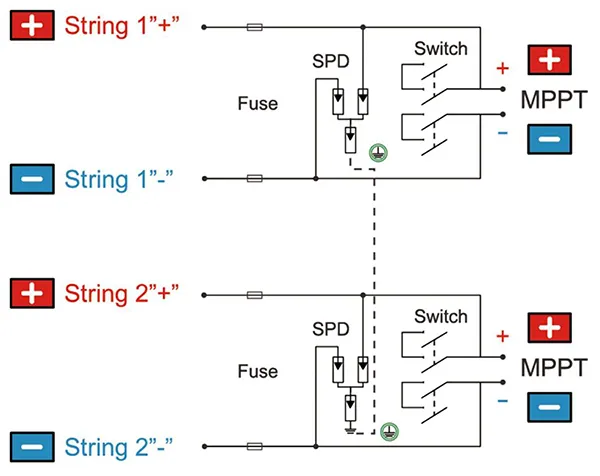

  CQHS-2/2 Wiring diagram
Input 2 strings
Output 2 strings
Max Voltage 1000V
Max DC Short Circuit Current Per Input 16A(Changeable)
Max Current Output 32A
Enclosure
Material PC
Degree of Protection IP65
Impacts IK09
Dimensions DXAT-18:L386*W230*H120mm
Cable input Entry PG09 Cable Gland,2.5-16mm2
Output Cable Gland PG21,2.5-16mm2
Environment
Operating temperature -20℃ – +60℃
Humidity 99%
Altitude 2000M
Installation Wall Mounting

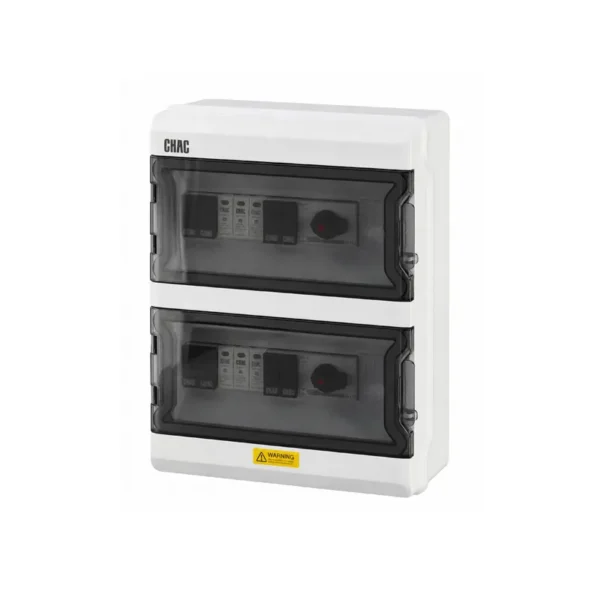

CQHS-4/2 PV Combiner Box

Specification

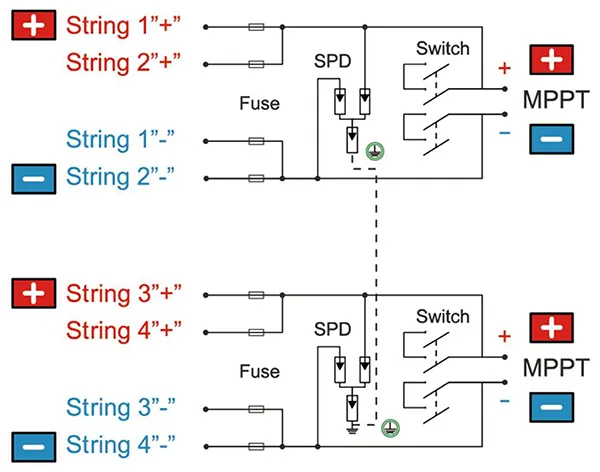

  CQHS-4/2 Wiring diagram
Input 4 strings
Output 2 strings
Max Voltage 1000V
Max DC Short Circuit Current Per Input 16A(Changeable)
Max Current Output 32A
Enclosure
Material PC
Degree of Protection IP65
Impacts IK09
Dimensions DXAT-26;L296*W390*H130mm
Cable input Entry PG09 Cable Gland,2.5-16mm2
Output Cable Gland PG21,2.5-16mm2
Environment
Operating temperature -20℃ – +60℃
Humidity 99%
Altitude 2000M
Installation Wall Mounting

Why Choose CHAC

CHAC Electric supplies electrical protection and control products for importers, distributors and equipment brands. For CQHS, agree the configuration, technical documents, approved sample and identification requirements before production. The company facilities shown below provide company context, not a claim that every model uses the same production or test process.

01

CONFIRM THE SPECIFICATION

Agree the CQHS configuration, circuit duty and installation requirements.

02

REVIEW THE DOCUMENTS

Confirm model-specific drawings and destination-market requirements.

03

APPROVE THE SAMPLE

Record the accepted configuration and marking requirements.

04

DEFINE ORDER CHECKS

Agree packaging, identification and delivery requirements in the quotation.

CHAC Automated Assembly Line

Automated Assembly Line

CHAC Testing Laboratory

Testing Laboratory

CHAC Injection & Stamping

Injection & Stamping

CHAC Quality Inspection

Quality Inspection

What Can We Customize?

Discuss CQHS product identification, packaging and documentation with CHAC. Each proposed change is subject to technical feasibility, marking rules and approval of the exact order; no altered rating or certification is implied.

Logo & Branding

Submit logo artwork and marking requirements for review against the available print area and mandatory product markings.

CHAC CQHS product view

Packaging & Manuals

Define carton labels, packaging language, product identification and instruction requirements for the destination market.

CHAC CQHS product view

Configuration Selection

Specify CQHS with the required input/output choice, operating conditions and protection duty. Confirm the complete order combination.

CHAC CQHS product view

Assembly Requirements

Provide the mounting and connection requirements for review. Changes to the housing, terminals or operating arrangement require engineering approval.

CHAC CQHS product view

Market Documentation

Request documents covering the exact CQHS model and destination market. A standard reference alone is not evidence of certification.

CHAC CQHS product view

Sample Approval

Agree the sample specification, drawing revision and acceptance criteria before confirming a production order.

CHAC CQHS product view

Technical Documents and Support

DOC

CQHS Technical Documents

Request the CQHS datasheet, configuration drawing, installation instructions and available model-specific market documents.Request Datasheet

SUP

Need Technical Documents?

Send the application, electrical requirements, assembly layout and destination market for configuration and document review.Contact Us

CQHS Product FAQ

How do I size a solar combiner box?

Start with the number of strings and inverter inputs, then check cold-condition open-circuit voltage, string current, protection requirements and output limits. Choose the exact CQHS input/output configuration and approve its wiring diagram.

What is the difference between CQHS and CQHD?

CQHS uses a DC isolator, while CQHD uses a DC circuit breaker as the main switching/protection element. Compare the exact box ratings and component schedule; the two series are not automatic substitutes.

Does a two-output combiner automatically support two independent MPPTs?

Not solely from the output count. Confirm the internal circuit grouping, both conductor paths and the inverter requirements using the exact assembly drawing. Avoid joining circuits intended for separate MPPT channels.

How should the PV string fuse be selected?

Check string current, reverse-current exposure, module maximum series-fuse rating and local rules. Confirm the fuse-link part number and rating in the CQHS assembly schedule. Do not select a fuse solely from the fuse holder’s maximum current.

Does the CQHS enclosure rating cover any outdoor installation?

No enclosure rating removes the need to assess exposure, temperature, cable entries, sealing and mounting. Preserve the specified IP65 construction during installation and confirm any site conditions outside the approved assembly requirements.

What information is needed to quote a CQHS box?

Provide string count and grouping, maximum PV voltage, string current, inverter model and MPPT inputs, required protection, cable details, site conditions, quantity and destination market. Agree the drawing and component schedule before production.
