CQM5L Series Residual Current Circuit Breaker
The CQM5L MCCB provides overload, short circuit and residual-current protection within its published 10–630A range. Specification should follow the system voltage, load, conductor coordination, prospective fault current and applicable rules—not the ampere value alone.
Product Overview
CQM5L is a residual current circuit breaker for AC 380/400/415V distribution and protection applications. Its published range covers 10–630A with 3P / 4P options. Selection depends on the complete power-system design, including fault level, coordination, conductor ampacity, enclosure conditions and local rules.
The saved model record lists IEC 60947-2 and GB/T 14048.2 as the applicable standard reference. No certification claim is added beyond the model record.
Key Features
Typical Applications
Typical applications include distribution and motor circuits where the project requires integrated residual-current protection. These are evaluation contexts rather than universal approvals. Confirm the exact frame, voltage, breaking duty, trip unit, accessories and installation method before specification.
Applications and Selection Guide
Use the verified CQM5L values below to create a shortlist, then validate the complete circuit. An MCCB rating does not replace conductor calculations, fault-current analysis, coordination review or local installation requirements.
| Selection point | CQM5L reference | What the project must confirm |
|---|---|---|
| Rated current | 10–630A | Design current, conductor ampacity, installation method, temperature and grouping |
| Voltage | AC 380/400/415V | Supply system and equipment rating |
| Poles | 3P / 4P | Live conductors and neutral treatment |
| Trip / protection | thermal-magnetic trip | Load profile, fault response and coordination |
| Breaking capacity | 70kA Icu; 50kA or 70kA Ics by configuration | Prospective short-circuit current at the installation point |
Overcurrent vs Earth-Leakage Protection
An MCCB's overcurrent function does not replace residual-current protection. Select leakage sensitivity, delay and waveform type from the verified model data and project rules.
Leakage Protection
Confirm Leakage Selection →
MCCB vs MCB
An MCCB is normally evaluated for higher current, fault duty or accessory flexibility; an MCB may be more suitable for compact final circuits.
Current & Fault Duty
Compare MCCB and MCB →
Icu vs Ics
The saved data for CQM5L lists 70kA Icu; 50kA or 70kA Ics by configuration. Match the declared duty to the prospective short-circuit current and continuity objective.
Short-Circuit Study
Review Technical Support →
Pole and Neutral Arrangement
Published pole options are 3P / 4P. Confirm which conductors must be switched, protected and isolated together.
System Arrangement
View MCCB Range →
Ordering Guide
- State the exact model: CQM5L.
- Provide frame and rated current within the published range: 10–630A.
- Confirm poles: 3P / 4P.
- Specify the trip unit or protection function: thermal-magnetic trip.
- Provide system voltage, frequency, application, expected fault level, destination market and quantity.
- List required accessories, terminals, documents and any approved OEM/ODM marking or packaging requirements.
Installation and Coordination Checks
- Use the exact model drawing and instructions; do not infer terminal positions, supply direction or accessory compatibility from another MCCB.
- Verify conductor material and cross-section against the circuit calculation, terminal data, temperature and grouping.
- Confirm Icu/Ics or DC fault duty, upstream/downstream coordination, enclosure conditions, altitude and clearances.
- Installation, isolation, testing and maintenance must be performed by qualified personnel under applicable rules.
Accessory List
Type designation
| Code Position | Code Symbol | Meaning & Explanation |
| ① | CQ | Enterprise Code: Zhejiang Chuangqi Electric Co., LTD. |
| ② | M | Product Category: Molded Case Circuit Breaker |
| ③ | 5 | Design Serial Number |
| ④ | L | Special Protection Function Residual Current Protection (Options: L=RC Protection) |
| ⑤ | 125 | Rated Frame Current (A): Options: 125, 250, 400, 630 |
| ⑥ | □ | Operation Mode: • (No Code) – Manual Direct Operation • Z – Rotary Handle Operation • P – Electric Operation |
| ⑦ | 4 | Number of Poles: • 3 – Three Poles • 4 – Four Poles |
| ⑧ | 300 | Trip Unit & Accessories Code: • 3 – Electronic Trip (Compound Trip) • 2 – Magnetic Trip Only (Single Magnetic Trip) • 00 – No Accessories (Refer to accessory table for specific codes) |
| ⑨ | □ | Application Type: • (No Code) – Distribution Protection • 2 – Motor Protection |
| ⑩ | B | N-Pole Type (For 4P products only, 3P has no code): • Type A: N-pole is always connected, without overcurrent release. • Type B: N-pole breaks with other poles, without overcurrent release. • Type C: N-pole breaks with other poles, with overcurrent release. • Type D: N-pole is always connected, with overcurrent release. |
| ⑪ | 125A | Rated Current: See technical parameter table for available values. |
| ⑫ | Y | Time-Delay Function • Y: With Delay • F: Without Delay |
| ⑬ | □ | Terminal & Connection Type: • (No Code) – Front Terminal Connection • B – Rear Terminal Connection • C – Plug-in Type |
Technical Specifications
| Model number | CQM5L-125 | CQM5L-250 | ||
| Rated current of frame level Inm(A) | 125 | 250 | ||
| Rated current In(A),at 40℃ | 10, 16, 20, 32, 40, 50, 63, 80, 100, 125 | 100, 125, 140, 160, 180, 200, 225, 250 | ||
| Rated operating voltage Ue(V) | AC380/400/415V | AC380/400/415V | ||
| Rated insulation voltage Ui (V) | 1000 | 1000 | ||
| Rated impulse withstand voltage Uimp(kV) | 8 | 8 | ||
| Mechanical life | 20000 | 20000 | ||
| Electrical life(AC415V) | 8000 | 8000 | ||
| Trip mechanisms and protection types | Thermal-magnetic trip | Thermal-magnetic trip | ||
| Selectivity category | A | A | ||
| Number of poles | 3P, 4P | 3P, 4P | ||
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) (kA) | 70 | 70 | ||
| Rated Service Short-Circuit Breaking Capacity (Ics) (kA) | 50 | 50 | ||
| Rated Residual Operating Current (IΔn) | Time-delayed + Non-delayed | 100/300/500 | 100/300/500 | |
| Non-delayed only | 30/100/300/500 | / | ||
| Rated Residual Current Type | AC type | AC type | ||
| Rated Residual Making & Breaking Capacity (IΔm) | 1/4Icu | 1/4Icu | ||
| Phase spacing (mm) | 30 | 35 | ||
| Arc distance (mm) | ≤50 | ≤50 | ||
| Operating ambient temp | -35 ℃ to +70℃ | -35℃ to +70℃ | ||
| Accessory | Auxiliary contacts | ● | ● | |
| Alarm contacts | ● | ● | ||
| Shunt Release | ● | ● | ||
| Under-Voltage Release | ● | ● | ||
| Motor Operating Mechanism | ● | ● | ||
| Manual Handle Assembly | ● | ● | ||
| Fixed Type Rear-Mounting Kit | ● | ● | ||
| Plug-in Type, Front-of-Panel | ● | ● | ||
| Plug-in Type, Rear-of-Panel | ● | ● | ||
| Mechanical Interlock | ● | ● | ||
| Instantaneous protection | Power distribution protection | In≤40A: 400A; In≥50A: 10In | 10In | |
| Electric motor protection | In≤40A: 400A; In≥50A: 12In | 12In | ||
| Overall dimensions (mm) (L-W-H) |
 |
3 P | 155-90-90 | 165-105-103 |
| 4 P | 155-120-90 | 165-140-103 | ||
Note:● for optional accessories;”-”for no optional accessories.
| Model number | CQM5L-400 | CQM5L-630 | ||
| Rated current of frame level Inm(A) | 400 | 630 | ||
| Rated current In(A),at 40℃ | 225, 250, 315, 350, 400 | 400, 500, 630 | ||
| Rated operating voltage Ue(V) | AC380/400/415V | AC380/400/415V | ||
| Rated insulation voltage Ui (V) | 1000 | 1000 | ||
| Rated impulse withstand voltage Uimp(kV) | 8 | 8 | ||
| Mechanical life | 10000 | 10000 | ||
| Electrical life(AC415V) | 7000 | 7000 | ||
| Trip mechanisms and protection types | Thermal-magnetic trip | Thermal-magnetic trip | ||
| Selectivity category | A | A | ||
| Number of poles | 3P, 4P | 3P, 4P | ||
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) (kA) | 70 | 70 | ||
| Rated Service Short-Circuit Breaking Capacity (Ics) (kA) | 70 | 70 | ||
| Rated Residual Operating Current (IΔn) | Time-delayed + Non-delayed | 100/300/500/1000 | 100/300/500/1000 | |
| Non-delayed only | / | / | ||
| Rated Residual Current Type | AC type | AC type | ||
| Rated Residual Making & Breaking Capacity (IΔm) | 1/4Icu | 1/4Icu | ||
| Phase spacing (mm) | 48 | 70 | ||
| Arc distance (mm) | ≤100 | ≤100 | ||
| Operating ambient temp | -35 ℃ to +70℃ | -35℃ to +70℃ | ||
| Accessory | Auxiliary contacts | ● | ● | |
| Alarm contacts | ● | ● | ||
| Shunt Release | ● | ● | ||
| Under-Voltage Release | ● | ● | ||
| Motor Operating Mechanism | ● | ● | ||
| Manual Handle Assembly | ● | ● | ||
| Fixed Type Rear-Mounting Kit | ● | ● | ||
| Plug-in Type, Front-of-Panel | ● | ● | ||
| Plug-in Type, Rear-of-Panel | ● | ● | ||
| Mechanical Interlock | ● | ● | ||
| Instantaneous protection | Power distribution protection | 10In | 10In | |
| Electric motor protection | 12In | 12In | ||
| Overall dimensions (mm) (L-W-H) |
|
3 P | 257-150-104.5 | 280-210-112 |
| 4 P | 257-198-104.5 | 280-280-112 | ||
Note:● for optional accessories;”-”for no optional accessories.
Dimensions (mm)
CQM5L-125

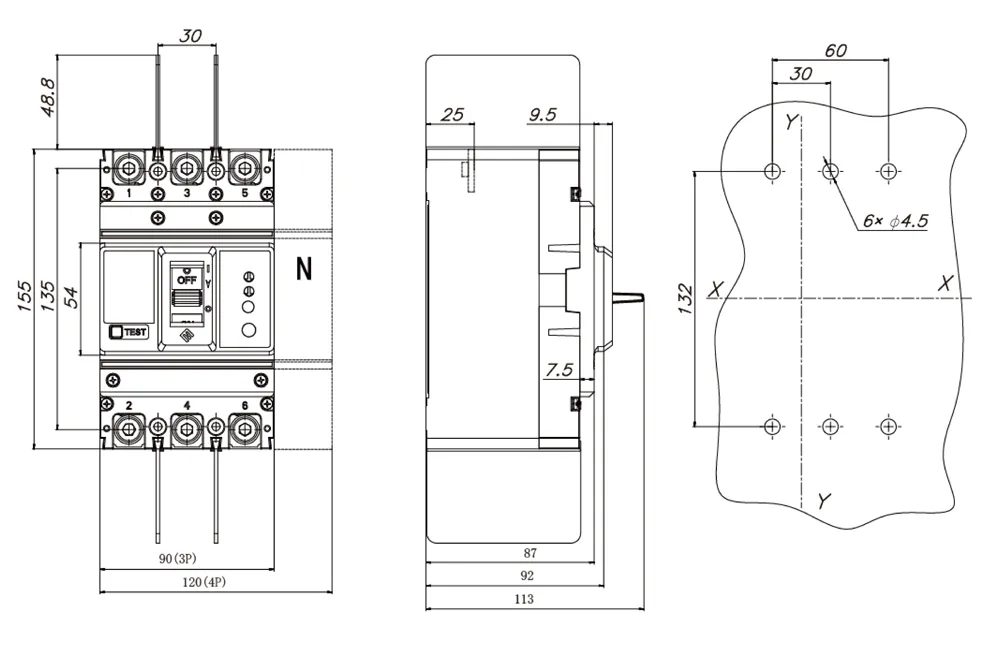

Front Terminal Connection Dimensions (X-X, Y-Y denote center points for 3P breakers)

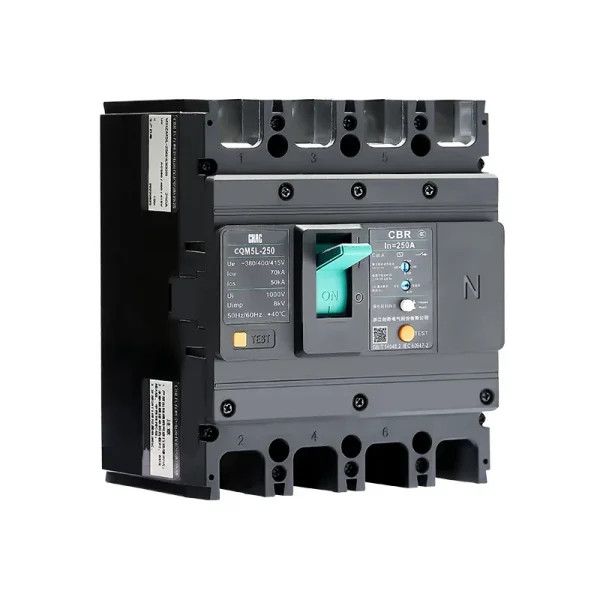

CQM5L-250
Front Terminal Connection Dimensions (X-X, Y-Y denote center points for 3P breakers)

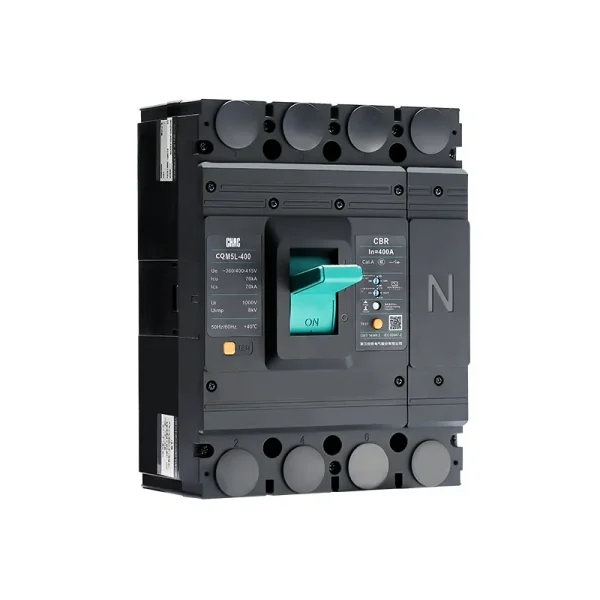

CQM5L-400
Front Terminal Connection Dimensions (X-X, Y-Y denote center points for 3P breakers)
CQM5L-630
Front Terminal Connection Dimensions
Note: Undefined tolerances comply with grade GB/T 1804-80.
